MAX1446
10-Bit, 60Msps, +3.0V, Low-Power
ADC with Internal Reference
Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.
16 ____________________Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600
© 2000 Maxim Integrated Products
Printed USA
is a registered trademark of Maxim Integrated Products.
Total Harmonic Distortion (THD)
THD is typically the ratio of the rms sum of the input
signal’s first five harmonics to the fundamental itself.
This is expressed as:
where V
1
is the fundamental amplitude, and V
2
through
V
5
are the amplitudes of the 2nd- through 5th-order
harmonics.
Spurious-Free Dynamic Range (SFDR)
SFDR is the ratio expressed in decibels of the rms
amplitude of the fundamental (maximum signal compo-
nent) to the rms value of the next largest spurious com-
ponent, excluding DC offset.
Intermodulation Distortion (IMD)
The two-tone IMD is the ratio expressed in decibels of
either input tone to the worst 3rd-order (or higher) inter-
modulation products. The individual input tone levels
are at -6.5dB full scale, and their envelope is at -0.5dB
full scale.
Chip Information
TRANSISTOR COUNT: 5684
PROCESS: CMOS
HOLD
ANALOG
INPUT
SAMPLED
DATA (T/H)
T/H
t
AD
t
AJ
TRACK
TRACK
CLK

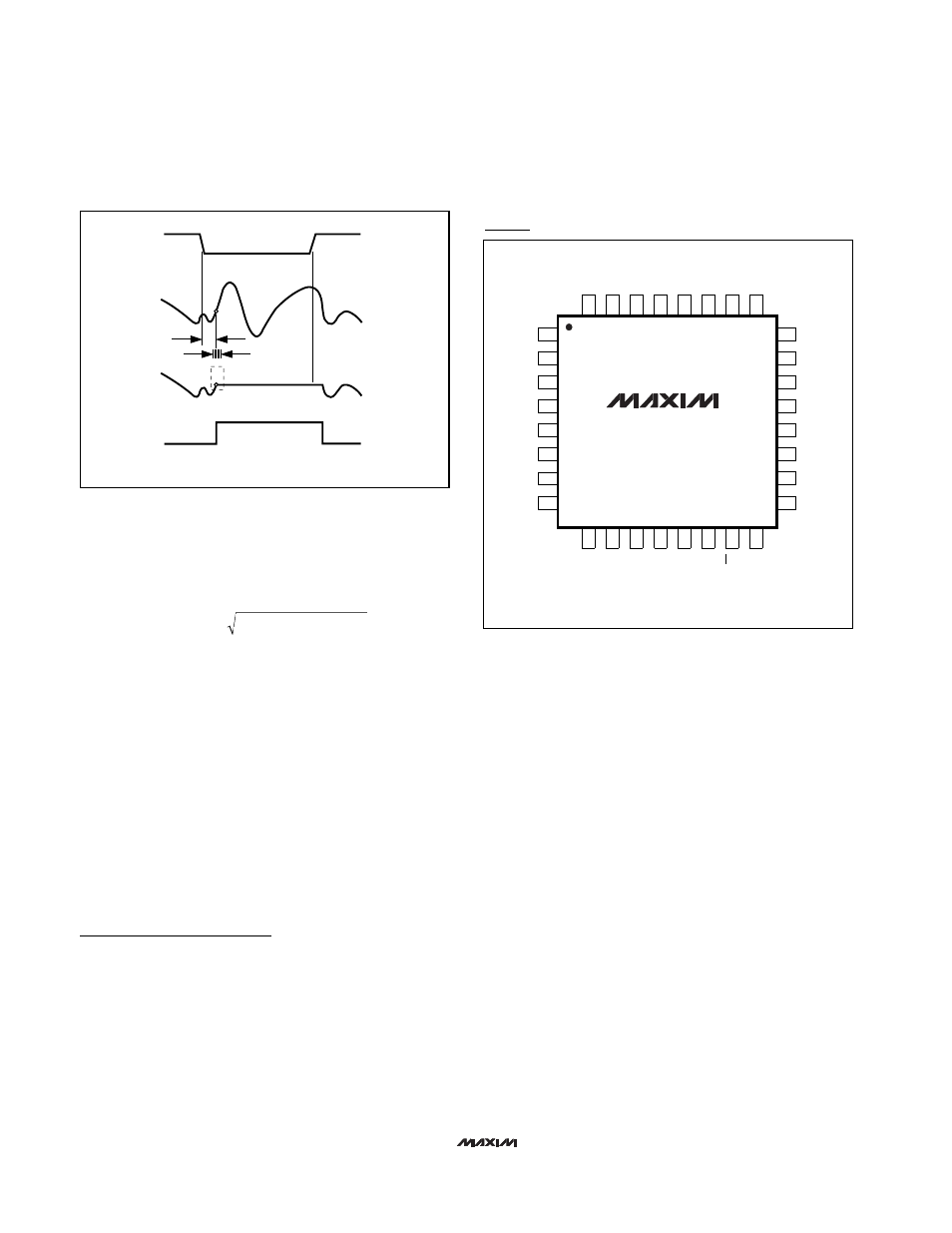

Figure 10. T/H Aperture Timing
