MAX730A/MAX738A/MAX744A
5V, Step-Down,
Current-Mode PWM DC-DC Converters
______________________________________________________________________________________
13

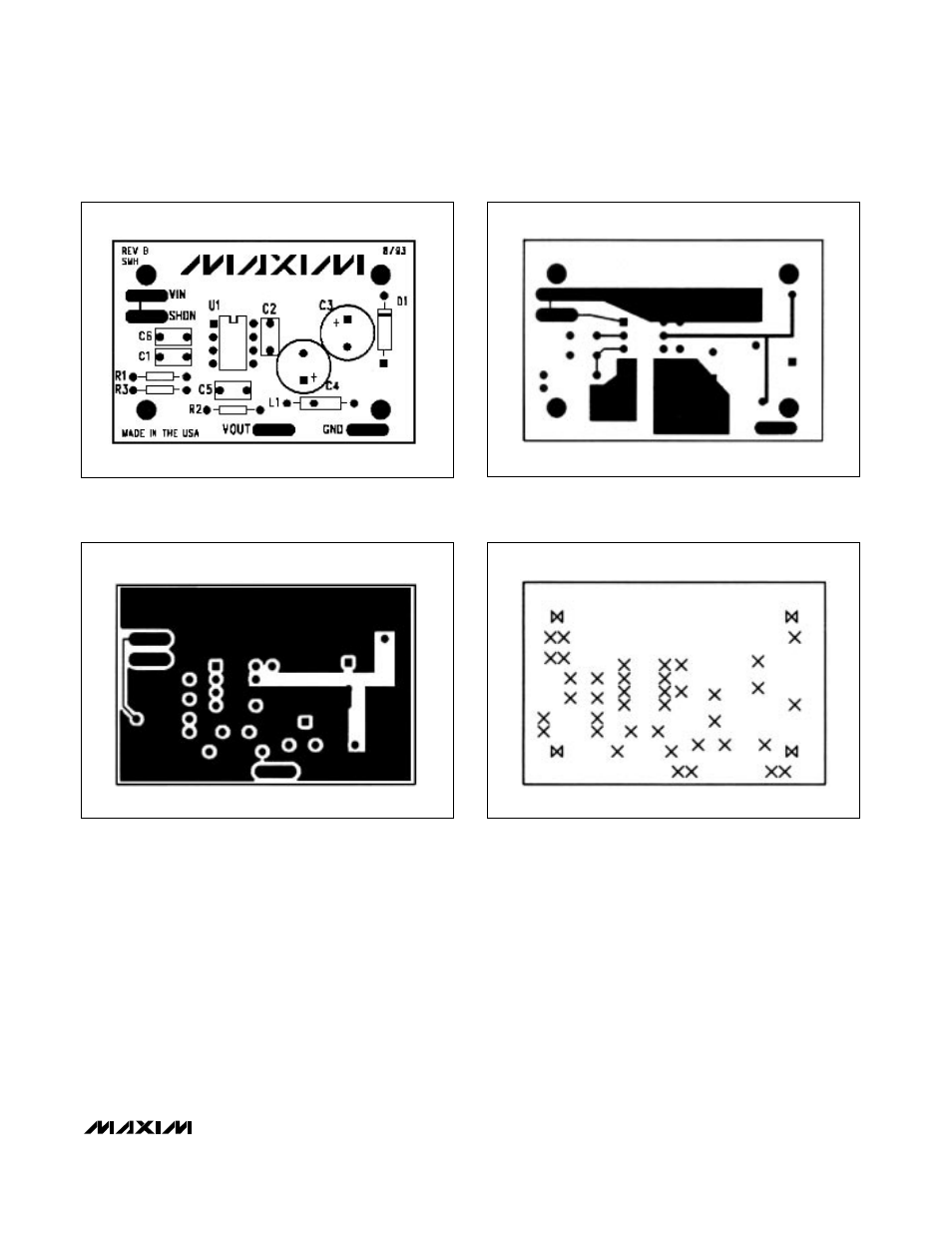

Figure 4. DIP PC Layout, Through-Hole Component Placement
Diagram (1x scale)
Figure 6. DIP PC Layout, Solder Side (1x scale)
Figure 7. DIP PC Layout, Drill Guide (1x scale)
Figure 5. DIP PC Layout, Component Side (1x scale)
MAX730 EVALUATION KIT
