________________________________________________________Package Information
MAX478/MAX479
17µA Max, Dual/Quad, Single-Supply,
Precision Op Amps
______________________________________________________________________________________ 11
IN+
IN-
R1
OUTPUT

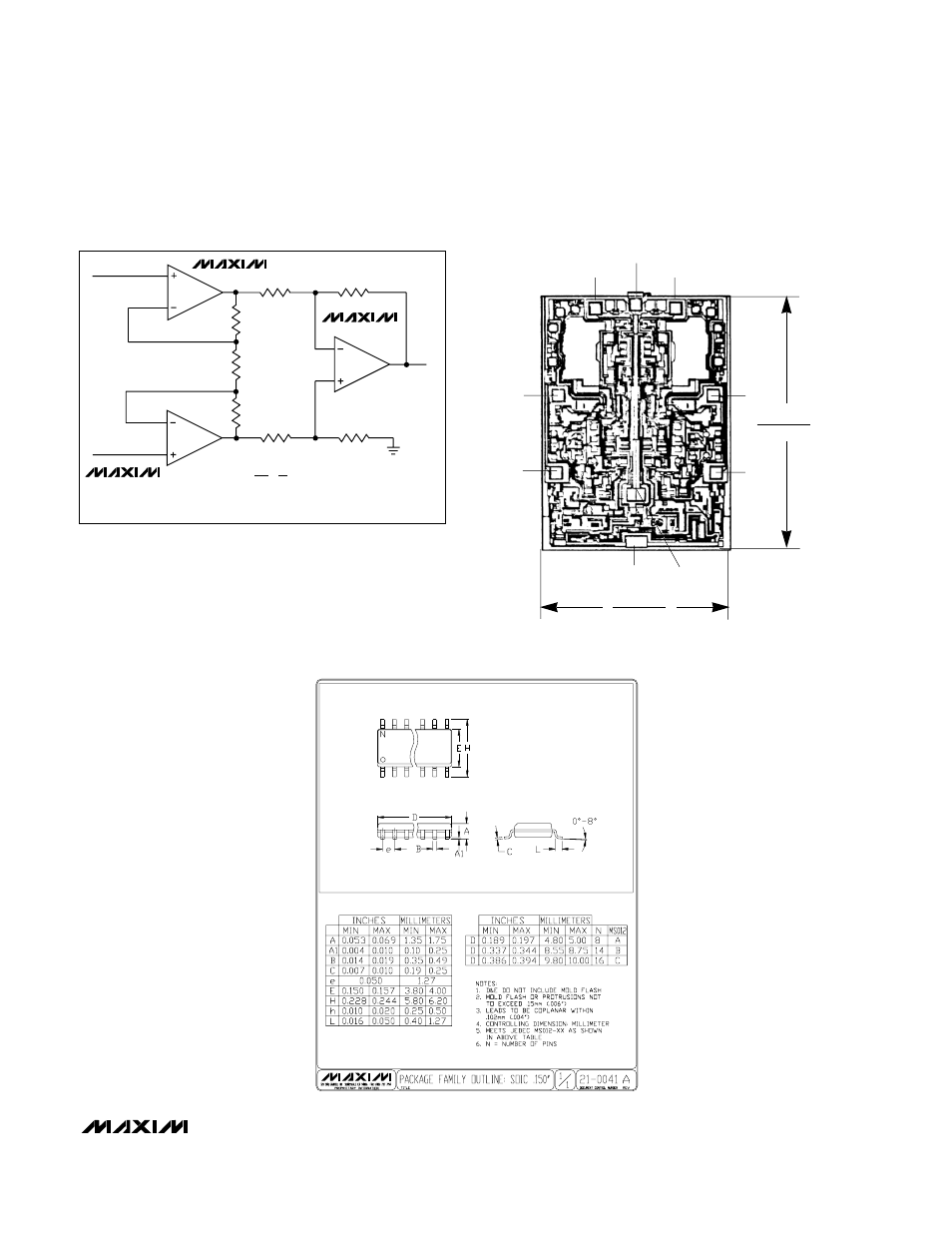

LOW-POWER INSTRUMENTATION AMPLIFIER
1/4MAX479
1/4MAX479
GAIN = (1 +
2R1
) (
R3
) = 100 FOR VALUES SHOWN
RG R2 1/4MAX479
1M
RG 200k
R1 1M
R2
1M
R3
9.1M
R3
9.1M
R2
1M
________Typical Application Circuit ___________________Chip Topograqhy
OUTA
V+
0.111"
(2.82mm)
V- V+
OUTB
INA-
INA+
INB-
INB+
0.079"
(2.01mm)
SOICN.EPS
