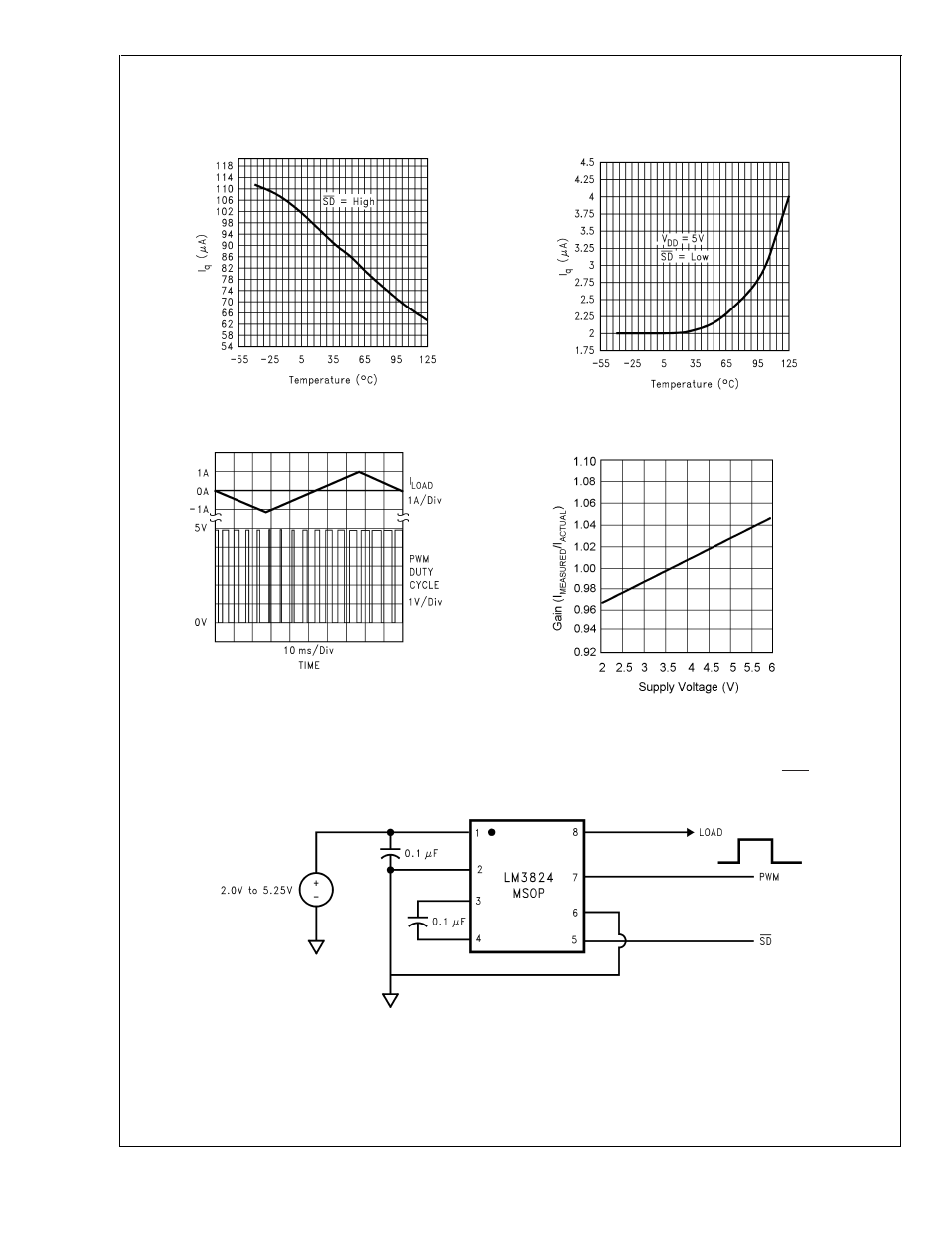

Typical Performance Characteristics
Supply bypass capacitor is 0.1 µF and filter capacitor is
0.1 µF. (Continued)
Note 10: These curves represent a statistical average such that the noise is insignificant.
Typical Application Circuits
In the application circuits, the 0.1 µF ceramic capacitor between pins 1 and 2
is used for bypassing, and the 0.1 µF ceramic capacitor between pins 3 and 4 is used for filtering. Shutdown (SD) is tied to
V
DD
through a 10 k
Ω
resistor.
Operating Current vs Temperature
DS200007-19
Shutdown Current vs Temperature
DS200007-21
Current vs PWM Duty Cycle
DS200007-22
Accuracy vs Supply Voltage
DS200007-28
DS200007-5
FIGURE 1. High Side Sense
LM3824
