Timing Diagram

DS200007-11

Duty cycle of the PWM waveform during any sampling interval indicates the current magnitude (average) and direction during the previous sampling interval.

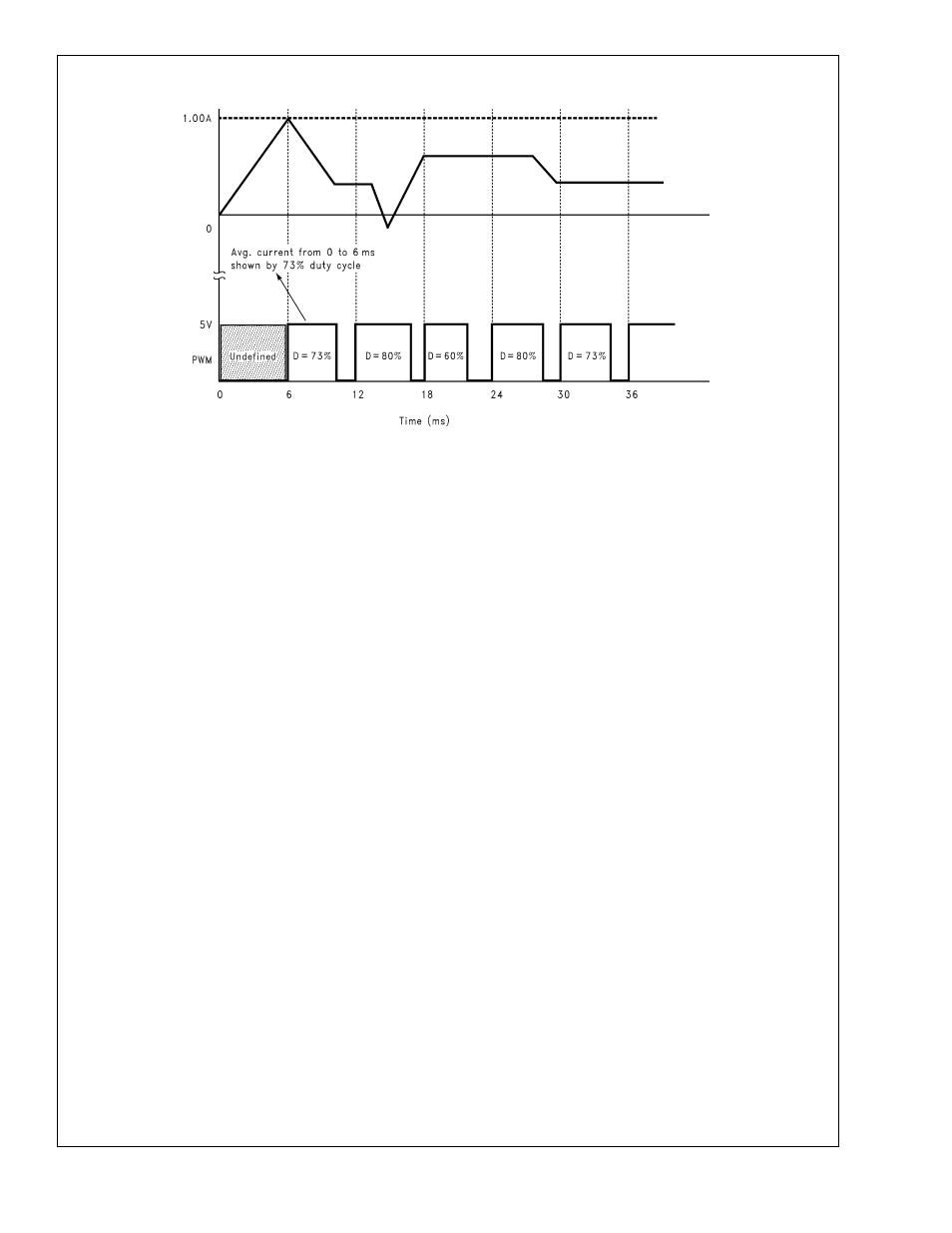

FIGURE 6. Typical Timing Diagram for Mostly Positive Current

LM3824

www.national.com

11
