MAX746
High-Efficiency, PWM, Step-Down,
N-Channel DC-DC Controller
_______________________________________________________________________________________ 9
The steady-state SS pin voltage is typically 3.8V. On
power-up, SS sources 1µA until its voltage reaches
3.8V. The current-limit comparator inhibits EXT switch-
ing until the SS voltage reaches 1.8V. The peak current
limit is set by:
V LIMIT 150mV (typ)
I PK = _________ = ___________
R SENSE R SENSE
where V LIMIT is the differential voltage across the current-
sense amplifier inputs. Figure 4 shows how the SS peak
current limit increases as the voltage on SS rises for two
R
SENSE values.
Undervoltage Lockout
Undervoltage lockout inhibits operation of EXT until the
charge pump is capable of generating a voltage greater
than 4.3V above the supply voltage (Figure 2). When
the undervoltage-lockout comparator detects an under-
voltage condition, the switching action at EXT is halted.
Shutdown Mode
When SHDN is high, the MAX746 is shut down. In this
mode, the internal biasing circuitry (including EXT) is
turned off, V
OUT drops to 0V, and the supply current
drops to 1.4µA (20µA max). This excludes external
c o m p o n e n t l e a k a g e , w h i c h m a y a d d s e v e r a l
microamps to the shutdown supply current for the
entire circuit. SHDN is a logic input. Connect SHDN to
GND for normal operation.
Low-Battery Detector
The MAX746 provides a low-battery comparator that
compares the voltage on LBI to the reference voltage.
LBO, an open-drain output, goes low when the LBI volt-
age is below V
REF . Use a resistor-divider network, as
shown in the Input Voltage Monitor Circuit (Figure 5),
to set the trip voltage (V
TRIP ) at the desired level. In
this circuit, LBO goes low when V+
≤
V TRIP . LBO is high
impedance in shutdown mode.
2
3
4
6
5
11
LBI
SS
REF
FB
SHDN
AGND
V+
CP
HIGH
AV+
CS
EXT
CC
OUT
LB0
VIN
6V TO 15V
GND
C6
1 µ F
D2
1N914 *
C8
0.1
µ F
D4
1N5817
D3
1N914 *
D1
NSQ03A03
5V
AT 1.5A
L1 **
82 µ H
C1
220
µ F
N
C9
4.7
µ F
14
13
8
10
12
7
9
1
R2
R1
R SENSE
75m Ω
R3
100k
C7
1nF
C4
0.1
µ F
C2
47
µ F
C3
0.1
µ F
C5
0.1 µ F
Q1
Si9410DY
15
16
* SEE TABLE 2 FOR DIODE SELECTION.
** SUMIDA CDR125 SURFACE-MOUNT INDUCTOR.
MAX746

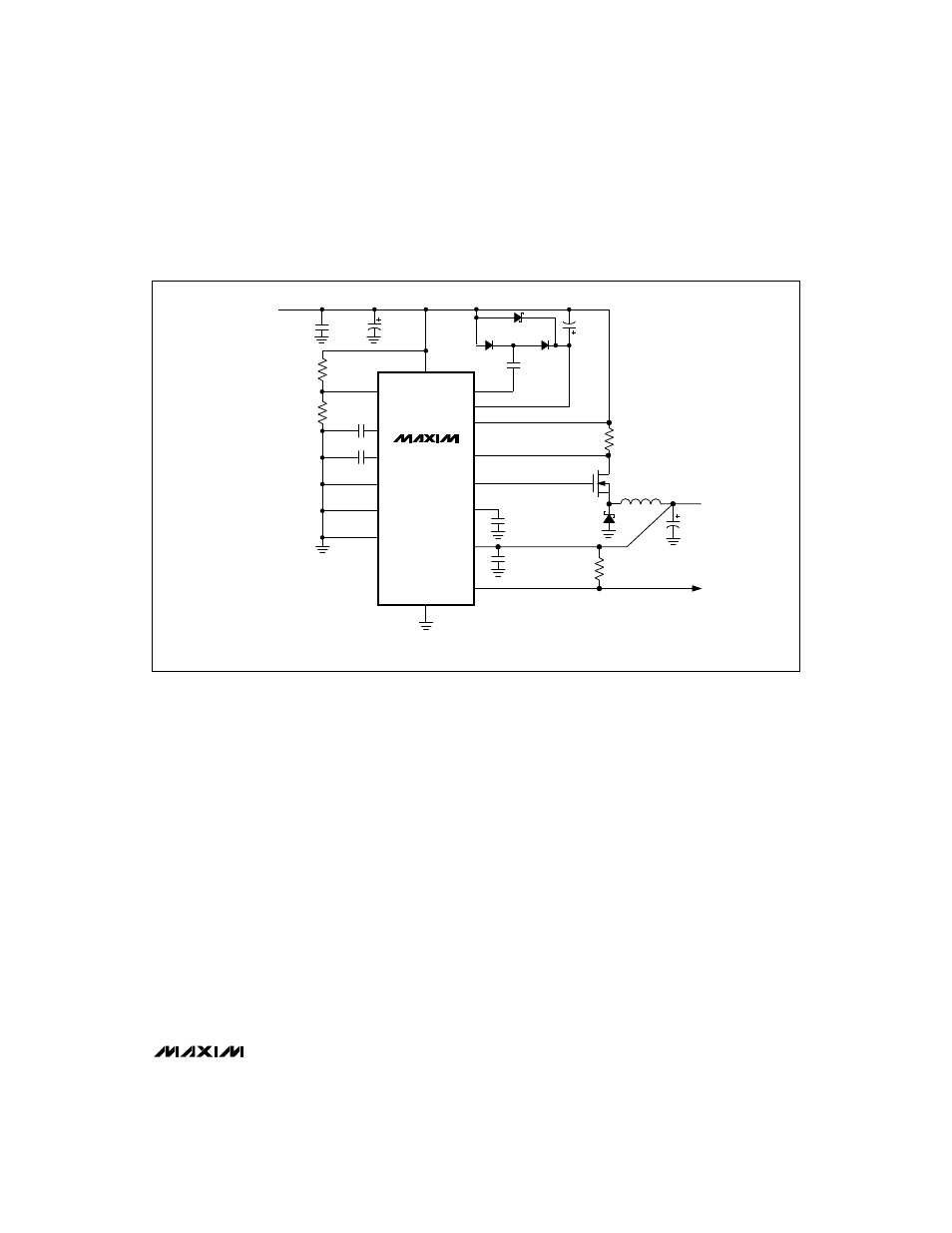

Figure 1c. 5V Standard Application Circuit (7.5W)
