DS1081L
20MHz to 134MHz Spread-Spectrum
Clock Modulator for LCD Panels
Maxim cannot assume responsibility for use of any circuitry other than circuitry entirely embodied in a Maxim product. No circuit patent licenses are
implied. Maxim reserves the right to change the circuitry and specifications without notice at any time.
Maxim Integrated Products, 120 San Gabriel Drive, Sunnyvale, CA 94086 408-737-7600 _____________________ 5
© 2007 Maxim Integrated Products
is a registered trademark of Maxim Integrated Products, Inc.
is a registered trademark of Dallas Semiconductor Corporation.
Spread-Spectrum Enable
On power-up, the output clock (SSO) remains tri-stated
until the internal PLL reaches a stable frequency. The
SSEN input can be used to disable the spread-spec-
trum modulation and to tri-state the SSO output. If the
SSEN pin is pulled high, the spread-spectrum modula-
tion is turned off, but the device still uses the internal
PLL to generate the clock signal at SSO. If the SSEN pin
is floated, the output will be tri-stated.
Application Information
Power-Supply Decoupling
To achieve best results, it is highly recommended that a
decoupling capacitor is used on the IC power-supply
pins. Typical values of decoupling capacitors are 0.01µF
and 0.1µF. Use a high-quality, ceramic, surface-mount
capacitor, and mount it as close as possible to the V
CC
and GND pins of the IC to minimize lead inductance.
f
IN
+ (0.5%, 1.0%, 1.5%, OR 2.0% OF f
IN
)
f
IN
f
IN
- (0.5%, 1.0%, 1.5%, OR 2.0% OF f
IN
)
f
SSO
TIME
1
DITHER CYCLE
RATE
DITHER AMOUNT
(
±0.5%, ±1.0%, ±1.5%, OR ±2.0%)
CLKIN RANGE (MHz)
DITHER RATE
66 TO 134
f
IN
/2048
33 TO 80
f
IN
/1024
20 TO 38
f
IN
/512
IF SSEN = 1

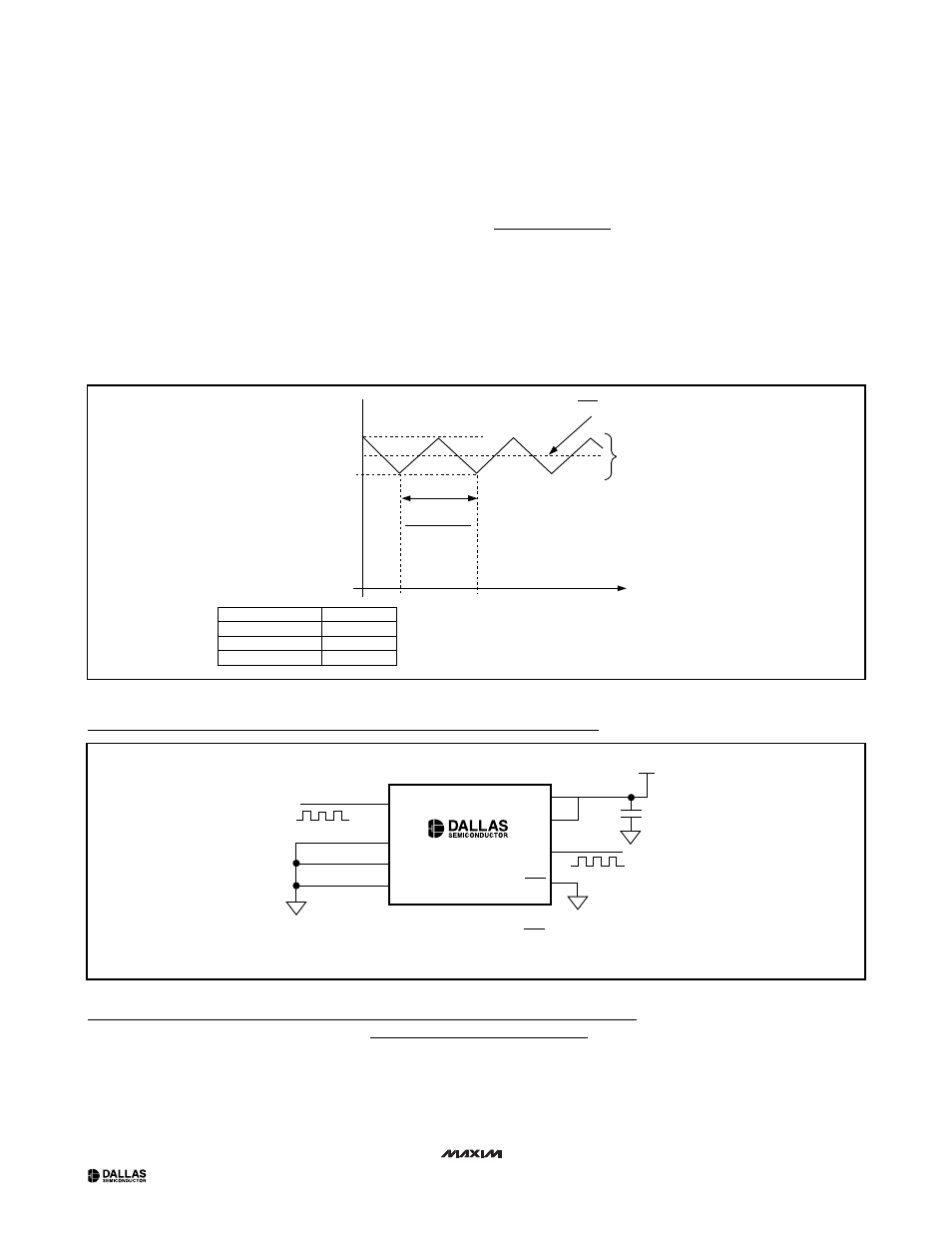

Figure 1. DS1081L Spread-Spectrum Frequency Modulation
CLKIN
SMSEL1
SMSEL2
GND
CRSEL
V
CC
DECOUPLING
CAPACITOR
V
CC
SSO
f
IN
= 20MHz TO
134MHz
NOTE: IN THE ABOVE CONFIGURATION WITH SMSEL1, SMSEL2, AND SSEN CONNECTED TO GND AS WELL AS
CRSEL CONNECTED TO V
CC
AND SSEN CONNECTED TO GND, THE DEVICE IS CONFIGURED WITH A
SPREAD-SPECTRUM MAGNITUDE OF
±2.0%, AND ALLOWS A CLKIN BETWEEN 20MHz and 38MHz.
DS1081L
f
SSO
DITHERED
SSEN
Typical Operating Circuit
Package Information
For the latest package outline information, go to www.maxim-ic.com/DallasPackInfo.
