1 of 19 REV: 030603
Note: Some revisions of this device may incorporate deviations from published specifications known as errata. Multiple revisions of any device
may be simultaneously available through various sales channels. For information about device errata, click here:
www.maxim-ic.com/errata .
GENERAL DESCRIPTION
The DS1500 is a full-function, year 2000-compliant
real-time clock/calendar (RTC) with an alarm,
watchdog timer, power-on reset, battery monitors,
256 bytes of on-board nonvolatile (NV) SRAM, NV
control for backing up an external SRAM, and a
32.768kHz output. User access to all registers within
the DS1500 is accomplished with a byte-wide
interface, as shown in Figure 7. The RTC registers
contain century, year, month, date, day, hours,
minutes, and seconds data in 24-hour binary-coded
decimal (BCD) format. Corrections for day of month
and leap year are made automatically.
APPLICATIONS
Remote Systems
Battery-Backed Systems
Telecom Switches
Office Equipment
Consumer Electronics
ORDERING INFORMATION
PART TEMP RANGE PIN-PACKAGE
DS1500YEN -40°C to +85°C 32 TSOP
DS1500WEN -40°C to +85°C 32 TSOP
Selector Guide appears at end of data sheet.
Typical Operating Circuit appears at end of data sheet.
FEATURES
§ BCD-Coded Century, Year, Month, Date, Day,
Hours, Minutes, and Seconds with Automatic
Leap-Year Compensation Valid Up to the Year
2100
§ Programmable Watchdog Timer and RTC Alarm
§ Century Register; Y2K-Compliant RTC
§ Automatic Battery Backup and Write Protection
to External SRAM
§ +5V Operation
§ Precision Power-On Reset
§ Power-Control Circuitry Supports System Power-
On from Date/Day/Time Alarm or Key Closure
§ 256 Bytes User NV RAM
§ Auxiliary Battery Input
§ Accuracy Better than ±1 Minute/Month at +25°C
§ Day-of-Week/Date Alarm Register
§ Battery Voltage-Level Indicator Flags
§ Industrial Temperature Range: -40°C to +85°C

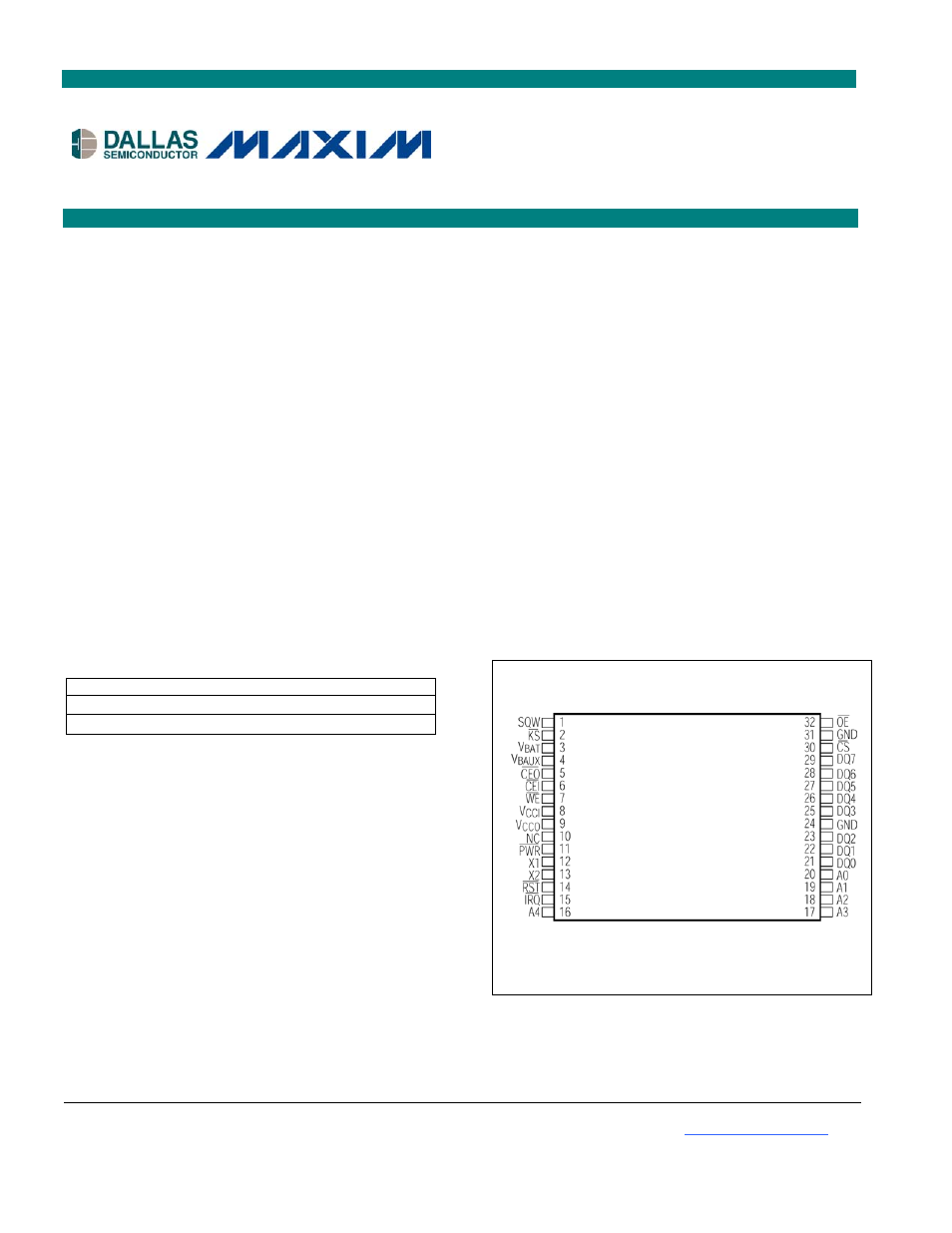

PIN CONFIGURATION
DS1500
Y2K Watchdog RTC with
Nonvolatile Control
www.maxim-ic.com
TOP VIEW
Dallas
Semiconductor
DS1500
TSOP
