ADC08060
8-Bit, 20 MSPS to 60 MSPS, 1.3 mW/MSPS A/D Converter
General Description
The ADC08060 is a low-power, 8-bit, monolithic analog-to-
digital converter with an on-chip track-and-hold circuit. Opti-
mized for low cost, low power, small size and ease of use,
this product operates at conversion rates of 20 MSPS to 70
MSPS with outstanding dynamic performance over its full
operating range while consuming just 1.3 mW per MHz of
clock frequency. That’s just 78 mW of power at 60 MSPS.
Raising the PD pin puts the ADC08060 into a Power Down
mode where it consumes just 1 mW.
The unique architecture achieves 7.5 Effective Bits with
25 MHz input frequency. The excellent DC and AC charac-
teristics of this device, together with its low power consump-
tion and single +3V supply operation, make it ideally suited
for many imaging and communications applications, includ-
ing use in portable equipment. Furthermore, the ADC08060
is resistant to latch-up and the outputs are short-circuit proof.
The top and bottom of the ADC08060’s reference ladder are
available for connections, enabling a wide range of input
possibilities. The digital outputs are TTL/CMOS compatible
with a separate output power supply pin to support interfac-
ing with 3V or 2.5V logic. The digital inputs (CLK and PD) are
TTL/CMOS compatible.
The ADC08060 is offered in a 24-lead plastic package
(TSSOP) and is specified over the industrial temperature
range of −40˚C to +85˚C. An evaluation board is available to
assist in the easy evaluation of the ADC08060.
Features
n Single-ended input
n Internal sample-and-hold function
n Low voltage (single +3V) operation
n Small package
n Power-down feature
Key Specifications
n Resolution 8 bits
n Maximum sampling frequency 60 MSPS (min)
n DNL 0.4 LSB (typ)
n ENOB 7.5 bits (typ) at f
IN
= 25 MHz
n THD −60 dB (typ)
n No missing codes Guaranteed
n Power Consumption
— Operating 1.3 mW/MSPS (typ)
— Power Down Mode 1 mW (typ)
Applications
n Digital imaging systems
n Communication systems
n Portable instrumentation
n Viterbi decoders
n Set-top boxes

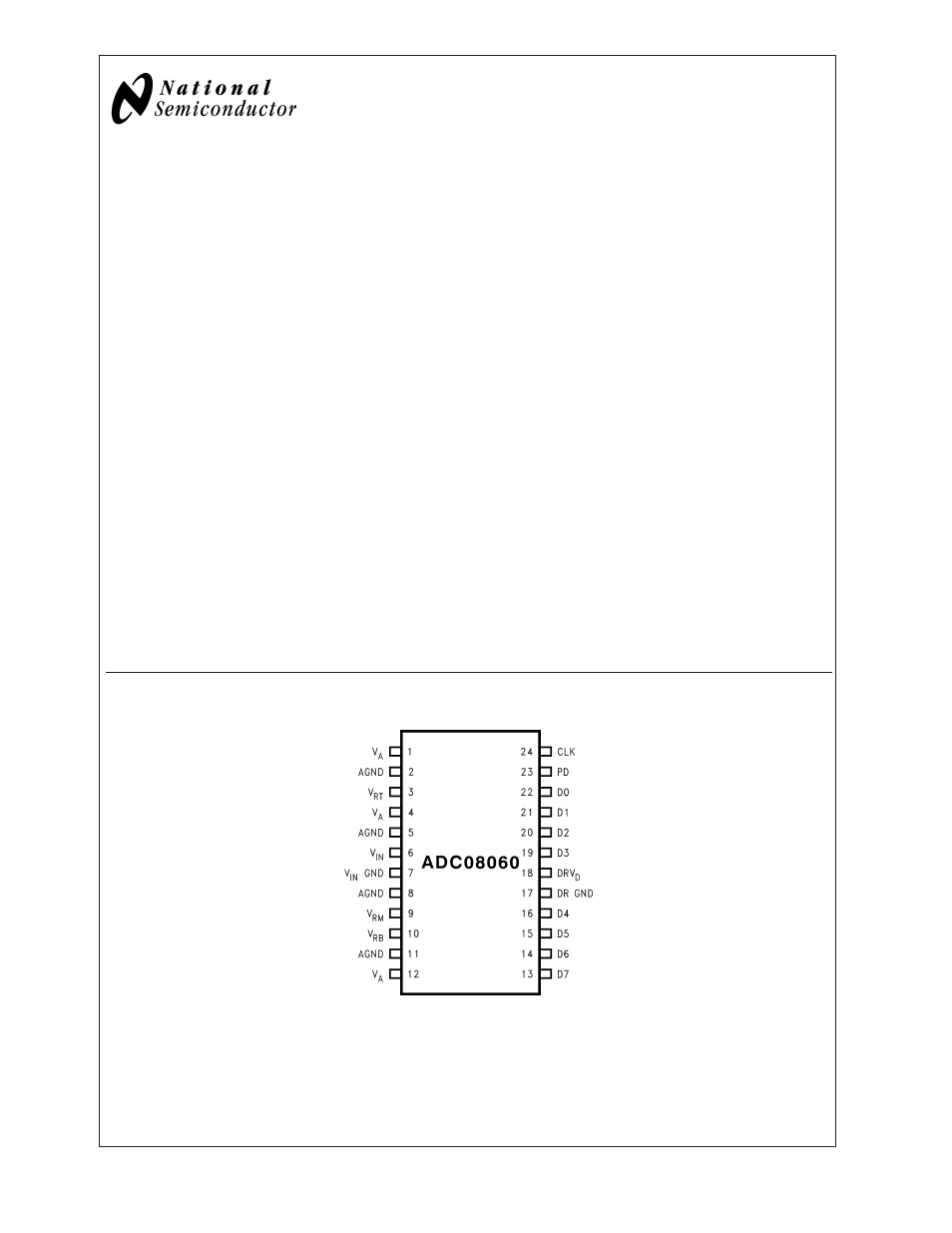

Pin Configuration
20006201
November 2003
