ISD1700 SERIES
Publication Release Date: January 23, 2007
- 21 - Revision 1.3-S2

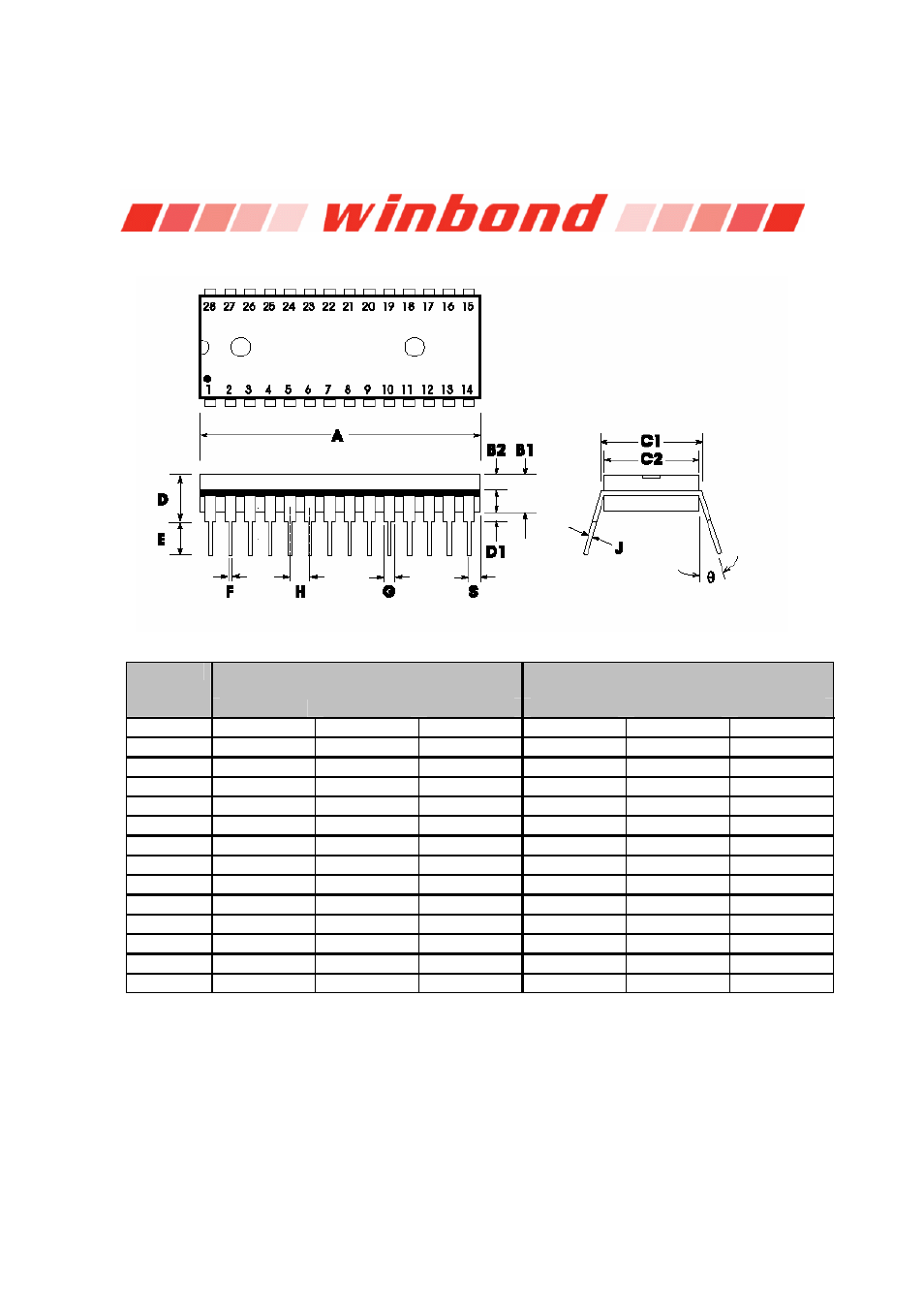

11.3 28-L EAD 600-M IL P LASTIC D UAL I NLINE P ACKAGE (PDIP)
Plastic Dual Inline Package (PDIP) (P) Dimensions
INCHES MILLIMETERS
Min Nom Max Min Nom Max
A 1.445 1.450 1.455 36.70 36.83 36.96
B1 0.150 3.81
B2 0.065
0.070 0.075 1.65 1.78 1.91
C1 0.600 0.625 15.24 15.88
C2 0.530 0.540 0.550 13.46 13.72 13.97
D 0.19 4.83
D1 0.015 0.38
E 0.125 0.135 3.18 3.43
F 0.015 0.018 0.022 0.38 0.46 0.56
G 0.055 0.060 0.065 1.40 1.52 1.65
H 0.100 2.54
J 0.008 0.010 0.012 0.20 0.25 0.30
S 0.070 0.075 0.080 1.78 1.91 2.03
0 0° 15° 0° 15°
11.4 D IE I NFORMATION
For die info, please contact the local Winbond Sales Representatives.
