Typical Performance Characteristics
Unless otherwise specified, the following specifications apply:
V
SSA
= V
SSIO
= 0V, V
DDA
= +3.0V, V
DDIO
= +2.5V, V
IN
= 2 V
P-P
, STBY = 0V, V
REF
= 1.2V, (External Supply) f
CLK
= 40 MHz,
f
IN
= 19 MHz, 50% Duty Cycle. (Continued)

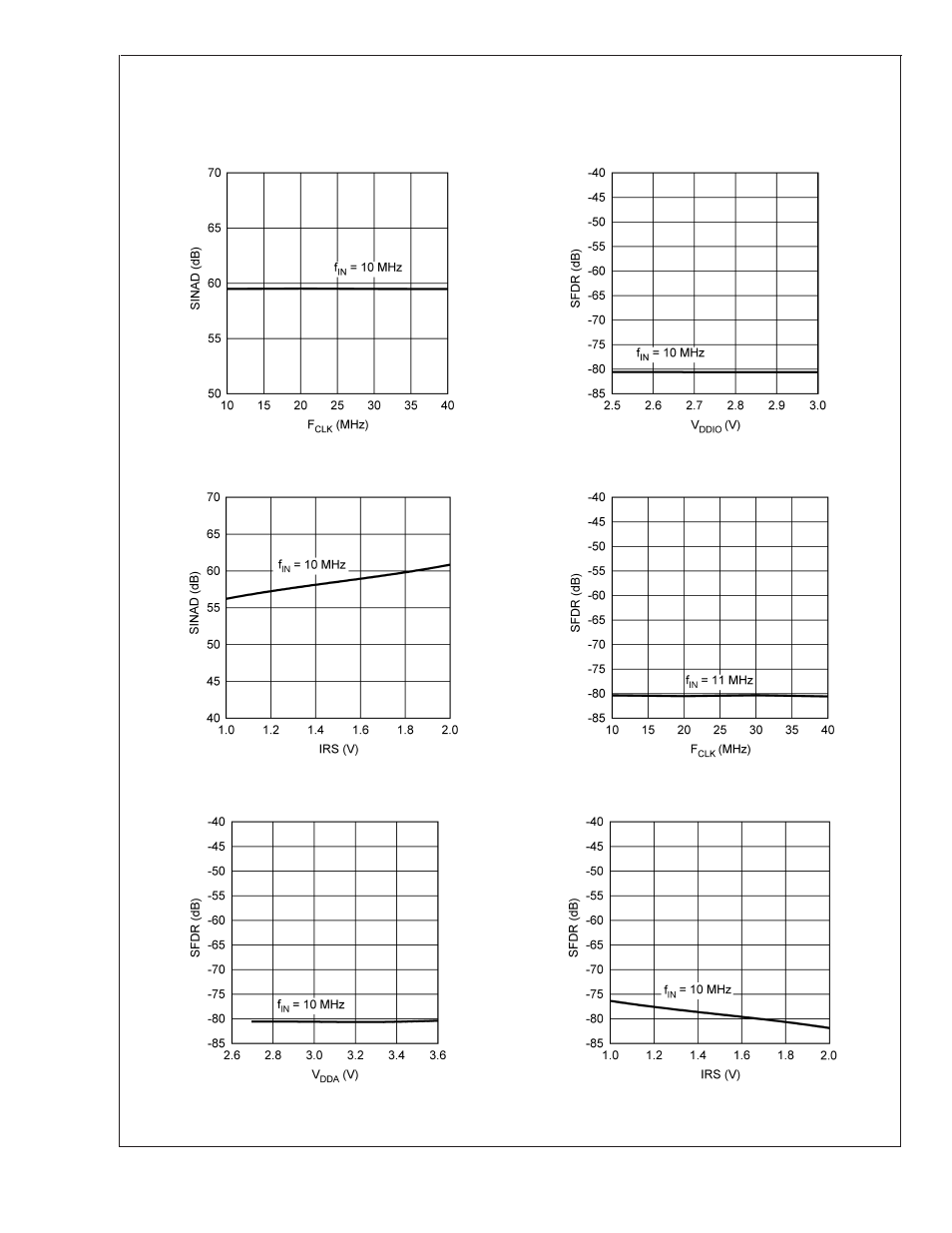

SINAD vs. f
CLK
SFDR vs. V
DDIO
20077836 20077837
SINAD vs. IRS SFDR vs. f
CLK
20077838 20077839
SFDR vs. V
DDA
SFDR vs. IRS
20077840 20077841
