Typical Performance Characteristics
Unless otherwise specified, the following specifications apply:
V
SSA
= V
SSIO
= 0V, V
DDA
= +3.0V, V
DDIO
= +2.5V, V
IN
= 2 V
P-P
, STBY = 0V, V
REF
= 1.2V, (External Supply) f
CLK
= 40 MHz,
f
IN
= 19 MHz, 50% Duty Cycle. (Continued)

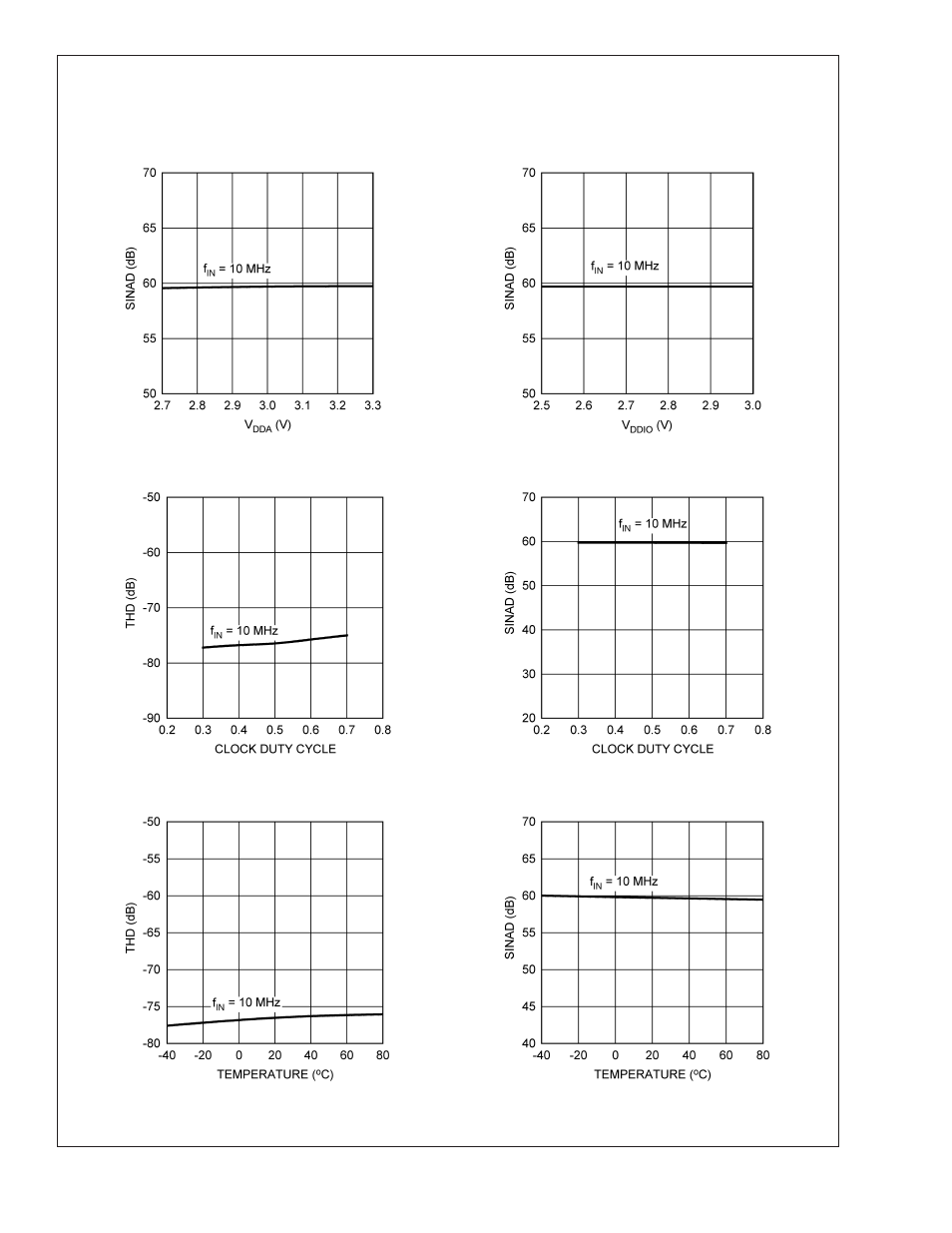

SINAD vs. V
DDA
SINAD vs. V
DDIO
20077830 20077831
THD vs. Clock Duty Cycle SINAD vs. Clock Duty Cycle
20077832 20077833
THD vs. Temperature SINAD vs. Temperature
20077834 20077835
