Typical Performance Characteristics
Unless otherwise specified, the following specifications apply:
V
SSA
= V
SSIO
= 0V, V
DDA
= +3.0V, V
DDIO
= +2.5V, V
IN
= 2 V
P-P
, STBY = 0V, V
REF
= 1.2V, (External Supply) f
CLK
= 40 MHz,
f
IN
= 19 MHz, 50% Duty Cycle. (Continued)

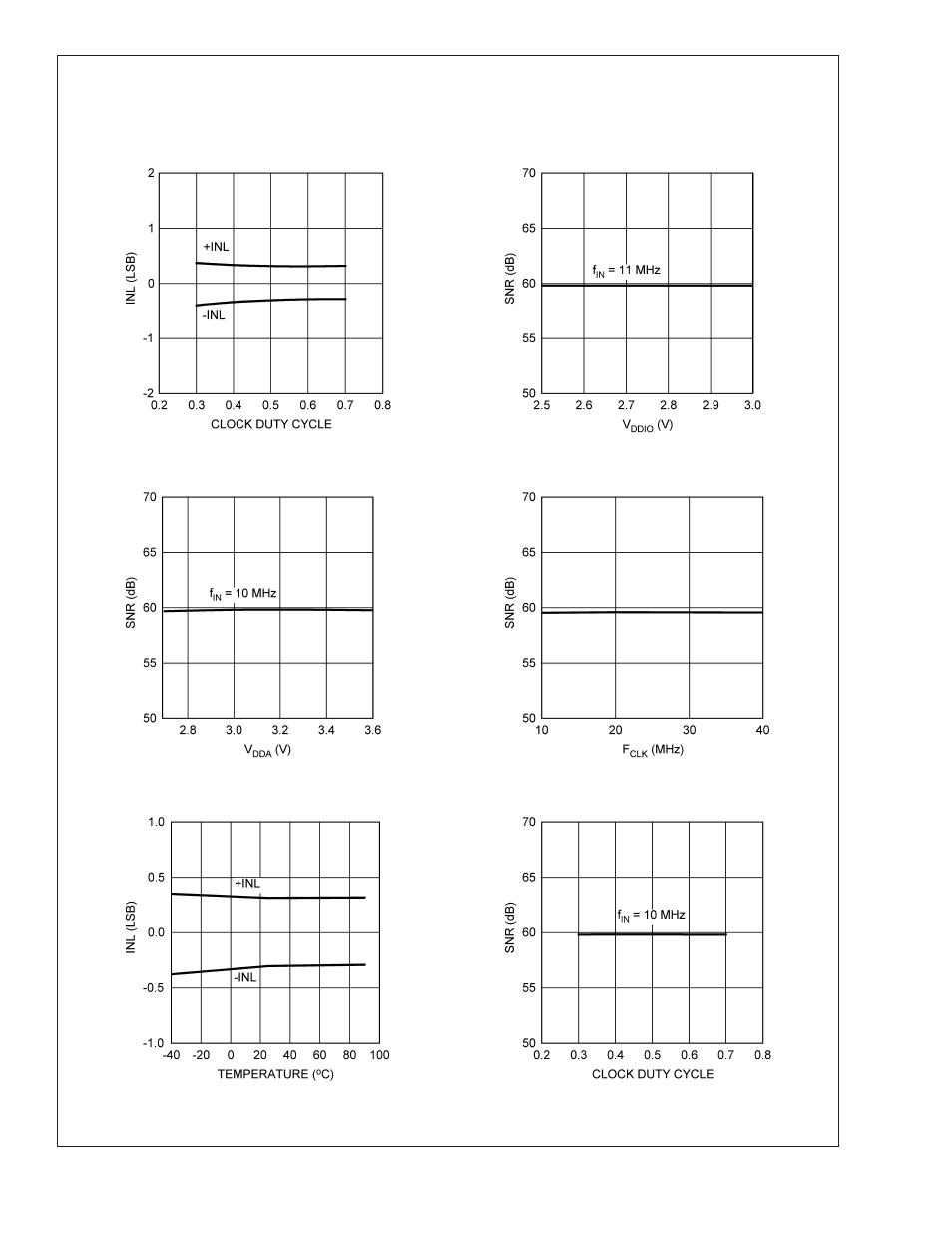

INL vs. Clock Duty Cycle SNR vs. V
DDIO
20077818 20077819
SNR vs. V
DDA
SNR vs. f
CLK
20077820 20077821
INL vs. Temperature SNR vs. Clock Duty Cycle
20077822 20077823
ADC10040
