DS1688/DS1691
3 of 4
SIGNAL DESCRIPTION
SQW (Square Wave Output) – The SQW output signal functions identical to the DS1689/DS1693 with
an exception occurring at power–up. A 32 kHz square wave will be output on this pin, t
REC
, after a
power–up condition has been detected. This condition sets the following bits enabling the 32 kHz output;
DV1=1, SQWE=1, and E32K=1. The square wave will be output on this pin if either SQWE=1 or
E32K=1.

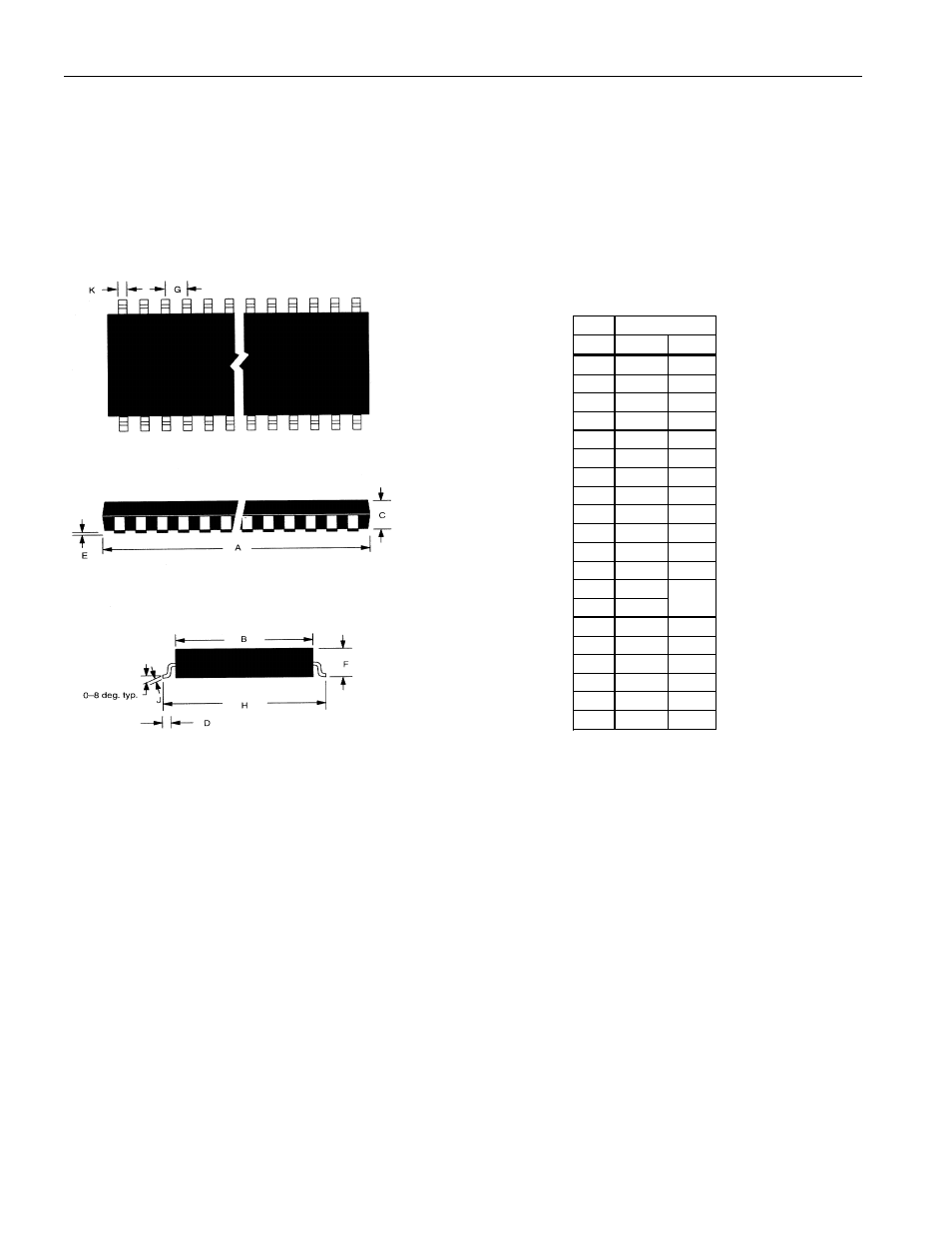

DS1688S 28-PIN SOIC
PKG 28-PIN
DIM MIN MAX
A IN. 0.697 0.728
MM 17.70 18.50
B IN. 0.324 0.350
MM 8.023 8.90
C IN. 0.087 0.118
MM 2.20 3.00
D IN. 0.016 0.050
MM 0.40 1.27
E IN. 0.002 0.014
MM 0.05 0.35
F IN. 0.100 0.120
MM 2.55 3.05
G IN. 0.050
MM 1.27
BSC
H IN. 0.453 0.500
MM 11.50 12.70
J IN. 0.006 0.013
MM 0.14 0.32
K IN. 0.014 0.020
MM 0.35 0.50
