combination of resistive loads >10k Ω and capacitive
loads <50pF.
Power-On Reset
The MAX5363/MAX5364/MAX5365 have a power-on
reset circuit to set the DAC’s output to 0 when V
DD is
first applied or when V DD dips below 1.7V (typ). This
ensures that unwanted DAC output voltages will not
occur immediately following a system startup, such as
after a loss of power. The output glitch on startup is typ-
ically less than 50mV.
Shutdown Mode
The MAX5363/MAX5364/MAX5365 include three soft-
ware-controlled shutdown modes that reduce the supply
current to <1µA. All internal circuitry is disabled, and a
known impedance is placed from OUT to GND to
ensure 0V while in shutdown. Table 2 details the three
shutdown modes of operation.
Digital Section
3-Wire Serial Interface
The MAX5363/MAX5364/MAX5365s’ digital interface is
a standard 3-wire connection compatible with
SPI/QSPI/MICROWIRE interfaces. The chip-select input
(CS) frames the serial data loading at the data-input pin
(DIN). Immediately following CS’s high-to-low transition,
the data is shifted synchronously and latched into the
input register on the rising edge of the serial clock input
(SCLK). After 16 bits have been loaded into the serial
MAX5363/MAX5364/MAX5365
Low-Cost, Low-Power, 6-Bit DACs with 3-Wire
Serial Interface in SOT23
8 _______________________________________________________________________________________
REF
CONTROL LOGIC
DATA LATCH
GND
OUT
V DD
CURRENT-STEERING
DAC
SERIAL INPUT REGISTER SCLK
DIN
CS
63
6
MAX5363
MAX5364
MAX5365

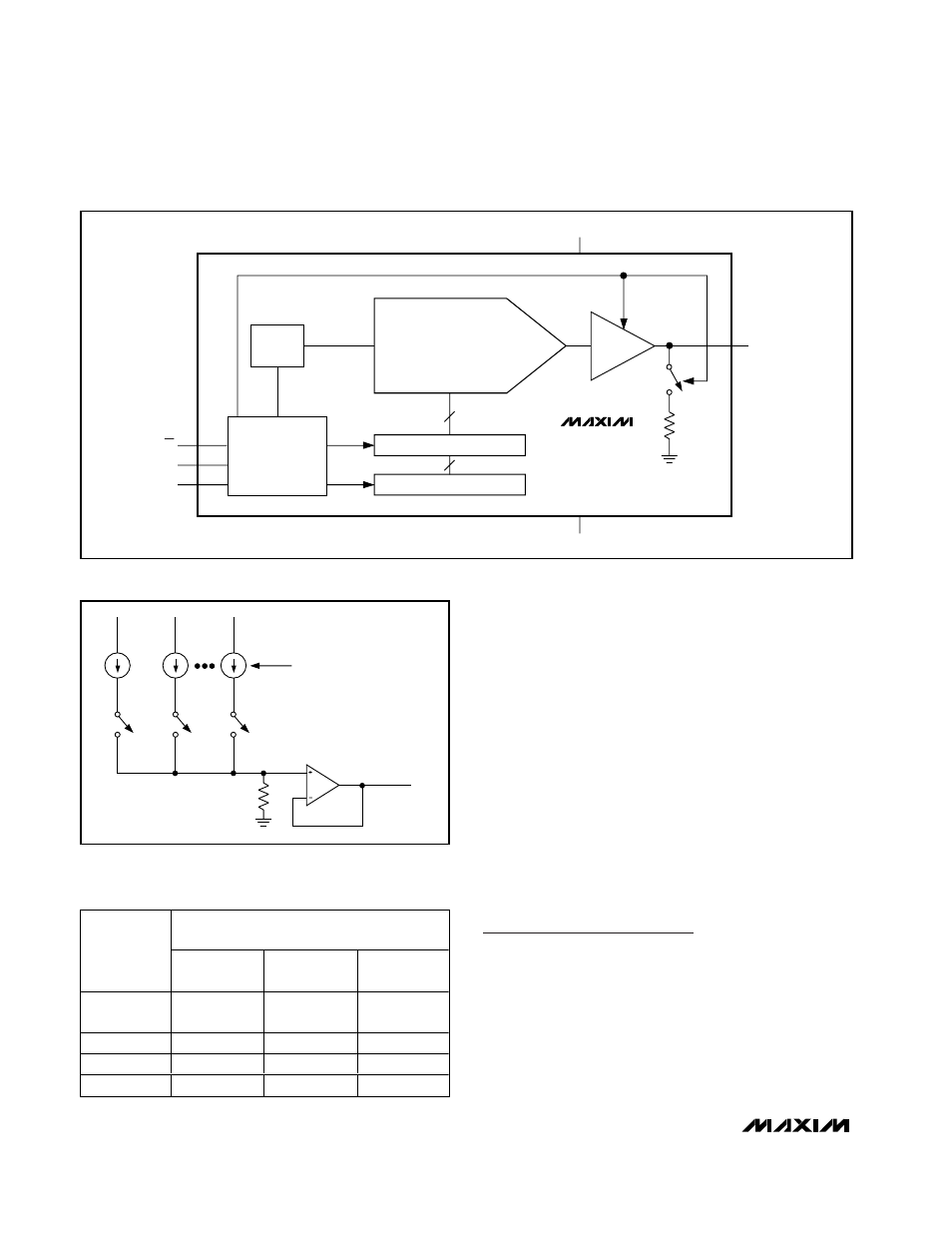

Figure 1. Functional Diagram
SW1 SW2 SW63
OUT
V REF
Figure 2. Current-Steering DAC Topology
OUTPUT VOLTAGE
DAC CODE
[D11–D6]
MAX5363 MAX5364 MAX5365
111 111 2V × (63/64) 4V Ч (63/64)
0.9 Ч V DD
×
(63/64)
100 000 1V 2V 0.9 × V DD / 2
000 001 31mV 63mV 0.9 × V
DD
/ 64
000 000 0 0 0
Table 1. Unipolar Code Output Voltage
