MAX5152/MAX5153
Since the MAX5152/MAX5153’s DOUT has an internal
active pull-up, the DOUT sink/source capability deter-
mines the time required to discharge/charge a capaci-
tive load. Refer to the digital output V
OH and V OL
specifications in the Electrical Characteristics .
Figure 8 shows an alternative method of connecting
several MAX5152/MAX5153s. In this configuration, the
data bus is common to all devices; data is not shifted
through a daisy-chain. More I/O lines are required in
this configuration because a dedicated chip-select
input (CS) is required for each IC.
Low-Power, Dual, 13-Bit Voltage-Output DACs
with Configurable Outputs
12 ______________________________________________________________________________________
CS
SCLK
DIN
COMMAND
EXECUTED
9 8 16 1
C1 A0 D0 C0 D12 D11 D10 D9 D6 D5 D4 D3 D2 D1 D8 D7

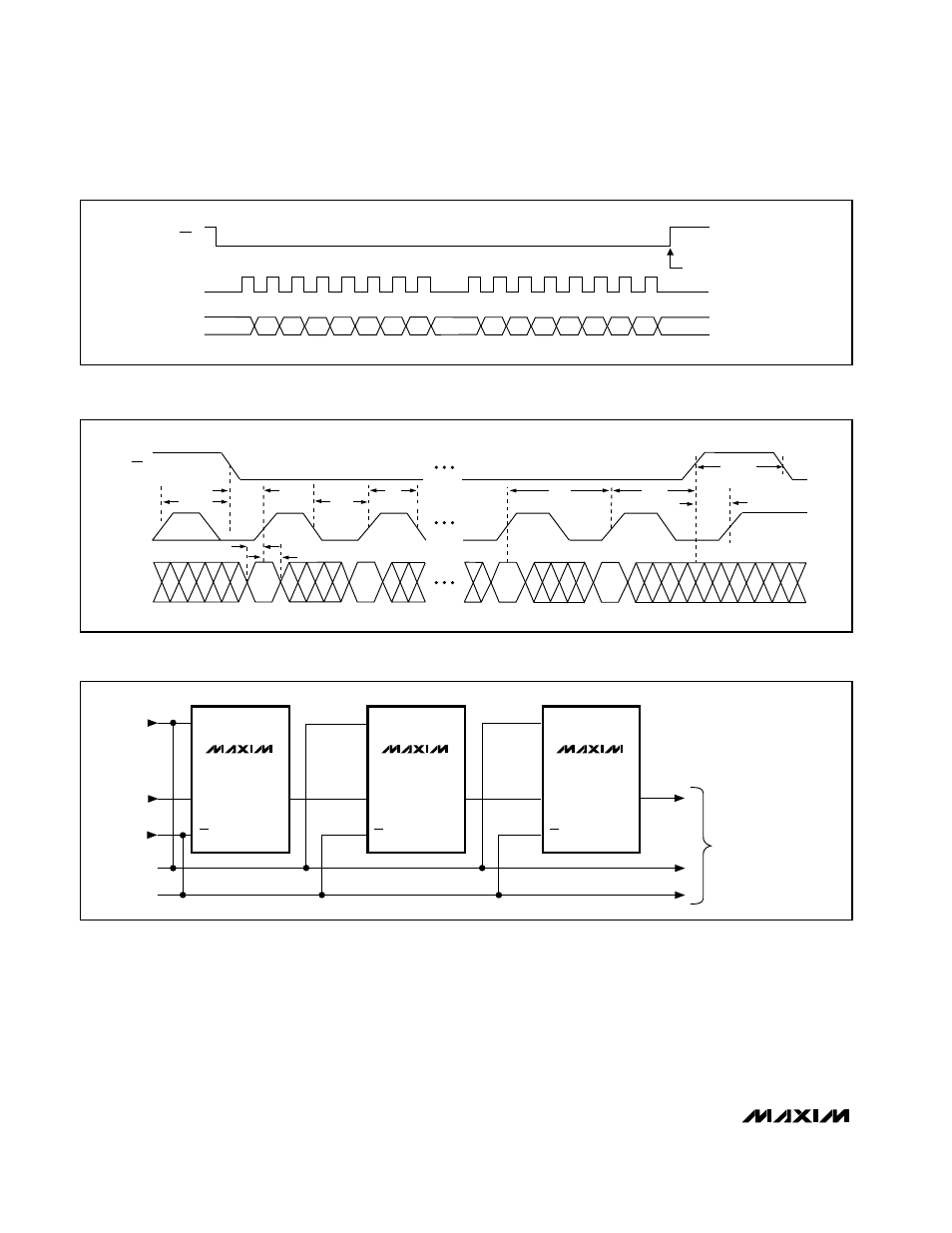

Figure 5. Serial-Interface Timing Diagram
SCLK
DIN
t CSO
t
CSS
t CL
t
CH
t CP
t
CSW
t CS1
t CSH
t DS
t
DH
CS
Figure 6. Detailed Serial-Interface Timing Diagram
TO OTHER
SERIAL DEVICES
MAX5152
MAX5153
DIN
SCLK
CS
MAX5152
MAX5153 MAX5152
MAX5153
DIN DOUT DOUT DOUT
SCLK
CS
DIN
SCLK
CS
Figure 7. Daisy Chaining MAX5152/MAX5153s
