Rear Module Options

All connections are 75 Ohms. Rear module RM20-9253-A uses BNC type connectors. Rear
modules RM20-9253-A/S, RM20-9253-B/S-DIN and RM20-9253-B/S-HDBNC are “split” rear
modules that accommodate 2 cards per rear module in adjacent slots. The –B/S module is
available with DIN 1.0/2.3 or HD-BNC connectors.

RM20-9253-A

RM20-9253-A/S

RM20-9253-B/S

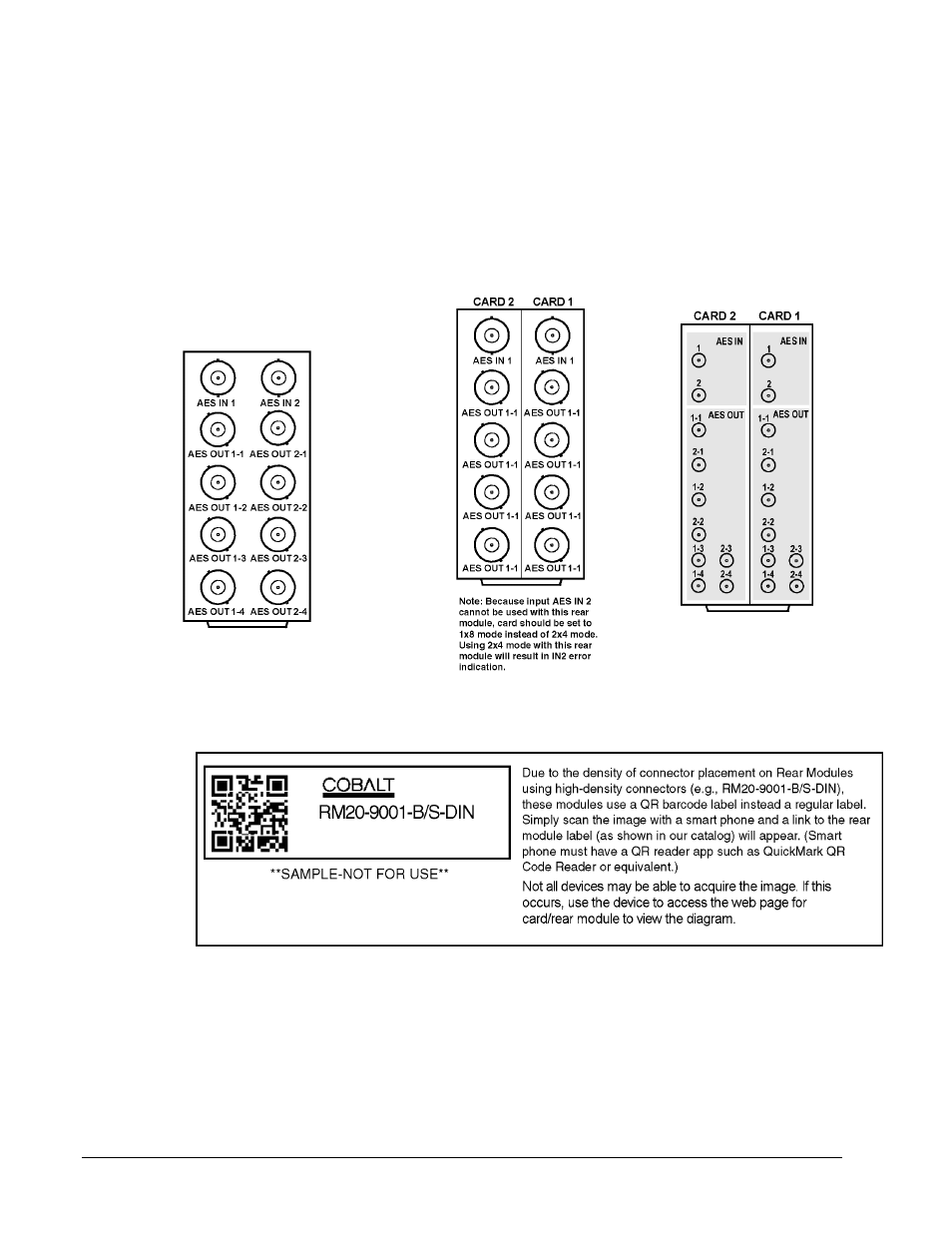

Figure 2. 9253 Rear Modules
