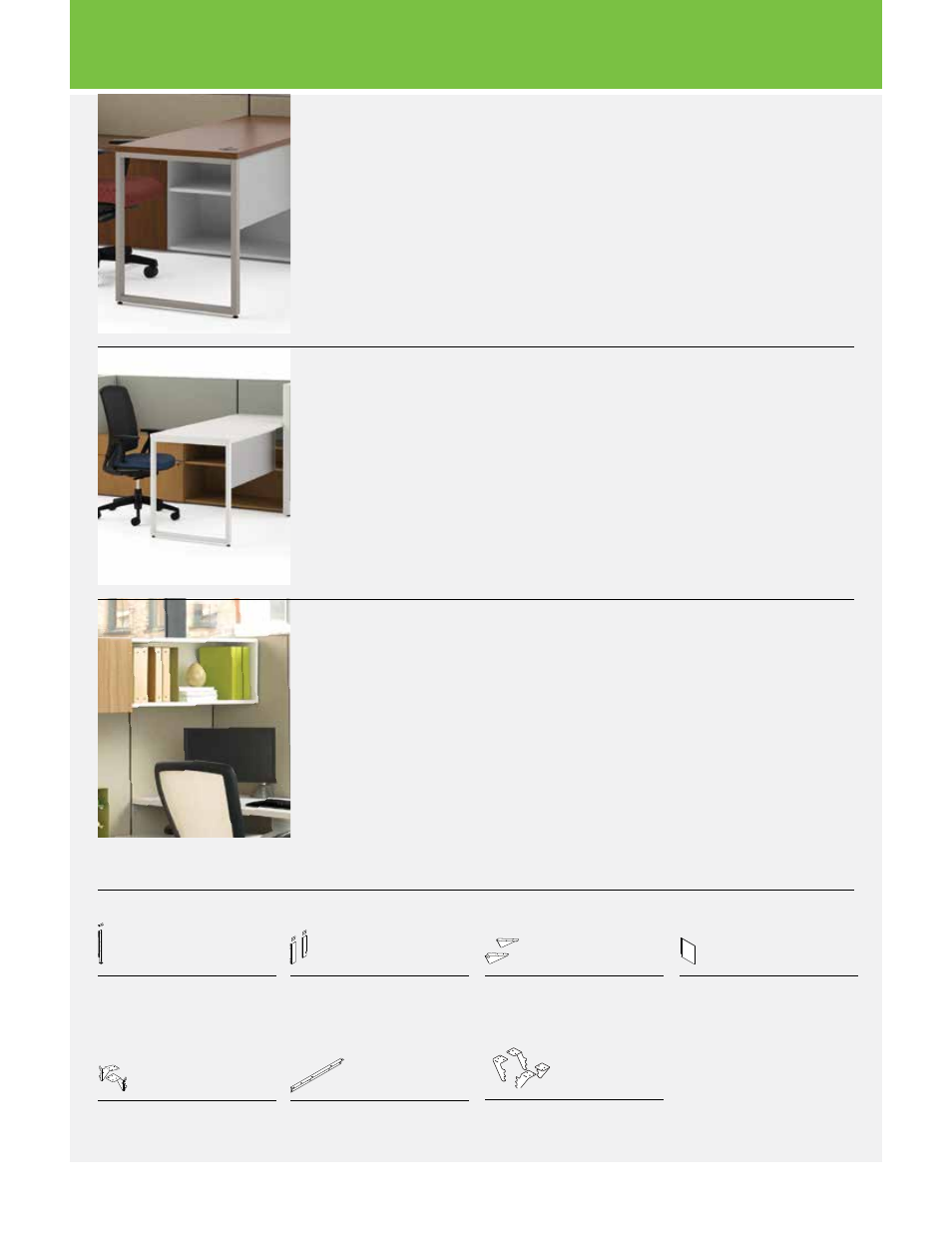

Contact HON’s Integrated Design Solutions team with specification questions: 1.800.433.7264 or [email protected].

• Systems worksurfaces can
be used with Voi components in
open plan applications. These
worksurfaces ship standard with
cantilevers unless the "omit
cantilever" option is selected.

• When Voi low credenzas are used
along the spine wall and are placed
adjacent to the wing wall, one
electrical/data cutout on the wing
wall will be blocked. When Voi

credenzas are used along the

wing wall and are placed adjacent
to the spine wall, one electrical/
data cutout on the spine wall will
be blocked.

• When Voi O-leg supports are used

with workstation panels, it is

recommended to also panel-attach

the worksurface with the work
surface anti-dislodgement bracket
kit (HMWA2). It is also recommended
to attach the O-leg to the panel
with the O-leg-to-panel bracket kit
(HLSPBL left and/or HLSPBR right).
This bracket will provide additional
workstation rigidity. It is designed
to work with edgeband worksur-
faces only.

• When the Voi end panel supports
are used with workstation panels,
it is recommended to use the end
panel support with panel bracket
model (HLSL2428EBL,

HLSL2428EBR, HLSL3028EBL,
or HLSL3028EBR). This model will
provide additional workstation
rigidity.

• The worksurface-to-tower bracket

kit (HSTB2W1) can be used with

Voi worksurfaces, as well as work-
surfaces from HON’s panel systems.

WORKSURFACE GUiDELiNES

• In situations in which the following

conditions are present:
1) the worksurface is perpendicular
to the spine wall,
2) the worksurface is panel
supported off the spine
wall, and

3) there are Voi credenzas placed
under the worksurface along
the spine,
there is not enough clearance to use
standard worksurface cantilevers
to attach the worksurface to the
spine wall.

In these applications, use the work-
surface anti-dislodgement bracket
kit (HMWA2) to panel-attach the
worksurface in lieu of cantilevers.

• The Voi O-leg-to-panel bracket is

designed to work with edgeband
worksurfaces only. Use of the Voi
O-leg with T-mold worksurfaces
will prevent the attachment of the
O-leg to the panel.

SUppORT GUiDELiNES

• Voi overhead cabinets can be
used on both Accelerate and

Abound as panel-mounted

overheads.

• The overhead cabinets require
a stack-on storage panel mounted
bracket kit (HLSLPMB). This kit
includes one left-hand and one
right-hand bracket. The brackets
are available in all Core and Choice
Metallic paint colors.

• For 66

"W, 72"W, or 78"W cabinets,

two sets of brackets (four brackets
total) must be used.

• Overhead cabinets do not have off
modular capabilities and cannot be
upmounted.

• Always panel-mount overhead

cabinets in pairs, one on each
side of a given panel in the same
location vertically and horizontally.
Limit one overhead cabinet per
side, per panel.

• Voi overhead cabinets must be

mounted on a spine wall that is
also attached to a wing panel.
The wing panel must be the same
height as the spine wall.

OVERhEAD CABiNET GUiDELiNES

SYStEmS INtEGRAtION

YOUR SYStEmS INtEGRAtION ACCESSORIES

WORKSURFACE-TO-TOWER
BRACKET

HSTB2W1

O-LEG TO pANEL ATTAChMENT
BRACKET

HLSLPBL
HLSLPBR

ANTi-DiSLODGEMENT BRACKET KiT

HWSA2

STACK-ON STORAGE pANEL
MOUNTED BRACKET

HLSLPMB

LAMiNATE END pANEL SUppORT
WiTh pANEL BRACKETS

½"H x 24"D, Left handed

HLSL2428EBL

½"H x 24"D, Right handed

HLSL2428EBR

½"H x 30"D, Left handed

HLSL3028EBL

½"H x 30"D, Right handed

HLSL3028EBR

CANTiLEVER

HCTL182

HCTL242

ShARED OVERhEAD
pANEL BRACKETS

HLSLPMBSOA
