Wilwood • March 2012 • 805 / 388-1188 • Fax 805 / 388-4938 • www.wilwood.com
7.09 (180,1)
MOUNT CENTER
SMALL
PISTON LARGE
PISTON SMALL
PISTON
DISC ROTATION
10.96 (278,4)
“E”
OUTSIDE RADIUS
2.09 (53,1)
MOUNT
HEIGHT
DISC/WHEEL CENTERLINE
TOP OF FRICTION MATERIAL
AND DISC O.D. TO BE FLUSH
DISC WIDTH
“B”
MOUNT OFFSET
“D1”
2.21 (56,3) 1.98 (50,3)
NOTE: RIGHT HAND, REAR MOUNT
CALIPER SHOWN-INLET FITTING: 1/8-27 NPT
DISC WIDTH
1.10 (27,9)
1.25 (31,8)
"B" MOUNT OFFSET
1.74 (44,9)
1.82 (46,2)
DISC
DIAMETER
12.19 (309,6)
12.72 (323,1)
12.88 (327,2)
13.06 (331,7)
14.00 (355,6)
14.25 (362,0)
14.75 (374,7)
15.00 (381,0)
"E"
OUTSIDE RADIUS
6.94 (176,3)
7.18 (182,4)
7.25 (184,2)
7.34 (186,4)
7.76 (197,1)
7.88 (200,2)
8.11 (206,0)
8.23 (209,0)
DIMENSION "D1" = (DISC DIAMETER/2) - 2.09 (53,1)

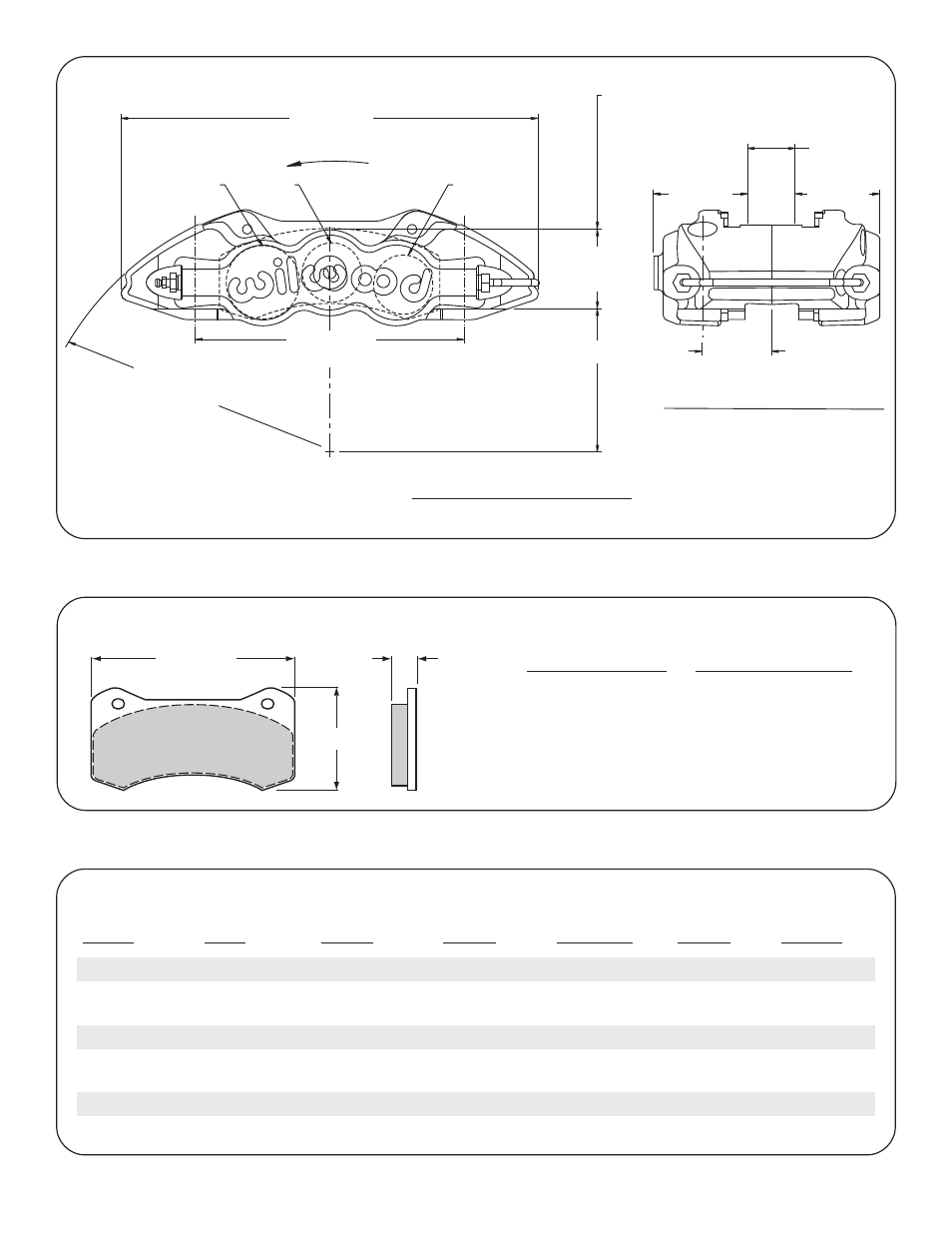

W6A CALIPER, MOUNTING DIMENSIONS:
.67
(17,0)
2.87 (72,9)
5.87 (149,1) AXLE SET PART NO. PAD TYPE/COMPOUND
150 - 9488K 6617 10 BP-10
150 - 9489K 6617 20 BP-20
150 - 9980K 6617 30 BP-30
15A - 9977K 6617 A PolyMatrix A
15B - 9978K 6617 B PolyMatrix B
15H - 9979K 6617 H PolyMatrix H
W6A CALIPER, TYPE 6617 PAD DIMENSIONS AND ORDERING INFORMATION:
ORDERING INFORMATION, USER SERVICEABLE COMPONENTS:
CALIPER SQ RING BLEED SCREW CROSSOVER PAD RETAINING BRIDGE WEAR
PART NO. PISTON KIT (6 PK) KIT (4 PK) TUBE KIT (EA) KIT (2 PK) PLATE (EA)
120-11661 200-7531 (1.75”) 130-3084 220-6069 190-9404S 180-9874 300-5876
200-7516 (1.38”)
120-11662 200-7531 (1.75”) 130-3084 220-6069 190-9404S 180-9874 300-5876
200-7516 (1.38”)
120-11663 200-7519 (1.62”) 130-5972 220-6069 190-9404S 180-9874 300-5876
200-7513 (1.12”)
120-11664 200-7519 (1.62”) 130-5972 220-6069 190-9404S 180-9874 300-5876
200-7513 (1.12”)
120-11657 200-7553 (1.62”) 130-5972 220-6069 190-9404S 180-9874 300-5876
200-7558 (1.12”)
120-11658 200-7553 (1.62”) 130-5972 220-6069 190-9404S 180-9874 300-5876
200-7558 (1.12”)
