Wilwood Forged Superlite Internal - Manual (Page 2)

"A"
BOLT CIRCLE RADIUS
3.50 (88,9)
3.69 (93,7)
3.92 (99,6)
4.00 (101,6)
4.05 (102,9)
DISC
DIAMETER
11.75 (298,5)
12.19 (309,6)
12.72 (323,1)
12.88 (327,2)
13.00 (330,2)
"E"
OUTSIDE RADIUS
6.69 (169,9)
6.85 (174,0)
7.05 (179,1)
7.12 (180,8)
7.18 (182,4)
DISC
WIDTH
1.25 (31,8)
1.10 (27,9)
.81 (20,6)
"B"
MOUNT OFFSET
1.56 (39,6)
1.46 (37,1)
1.34 (34,0)
DIMENSION "D1" = (DISC DIAMETER/2) - 2.85 (72,4)
INLET FITTING: 1/8-27 NPT
2.85 (72,4)
MOUNT HEIGHT
"D1"
DISC WIDTH
"B" MOUNT OFFSET
.45 (11,4)
MOUNT HOLE
PISTON PISTON
3.50 (88,9)
MOUNT CENTER
"E"
OUTSIDE
RADIUS
"A"
BOLT CIRCLE
RADIUS
DISC/WHEEL CENTERLINE
9.50 (241,3)
TOP OF FRICTION
MATERIAL AND DISC
O.D. TO BE FLUSH
2.15
(54,6)
2.15
(54,6)

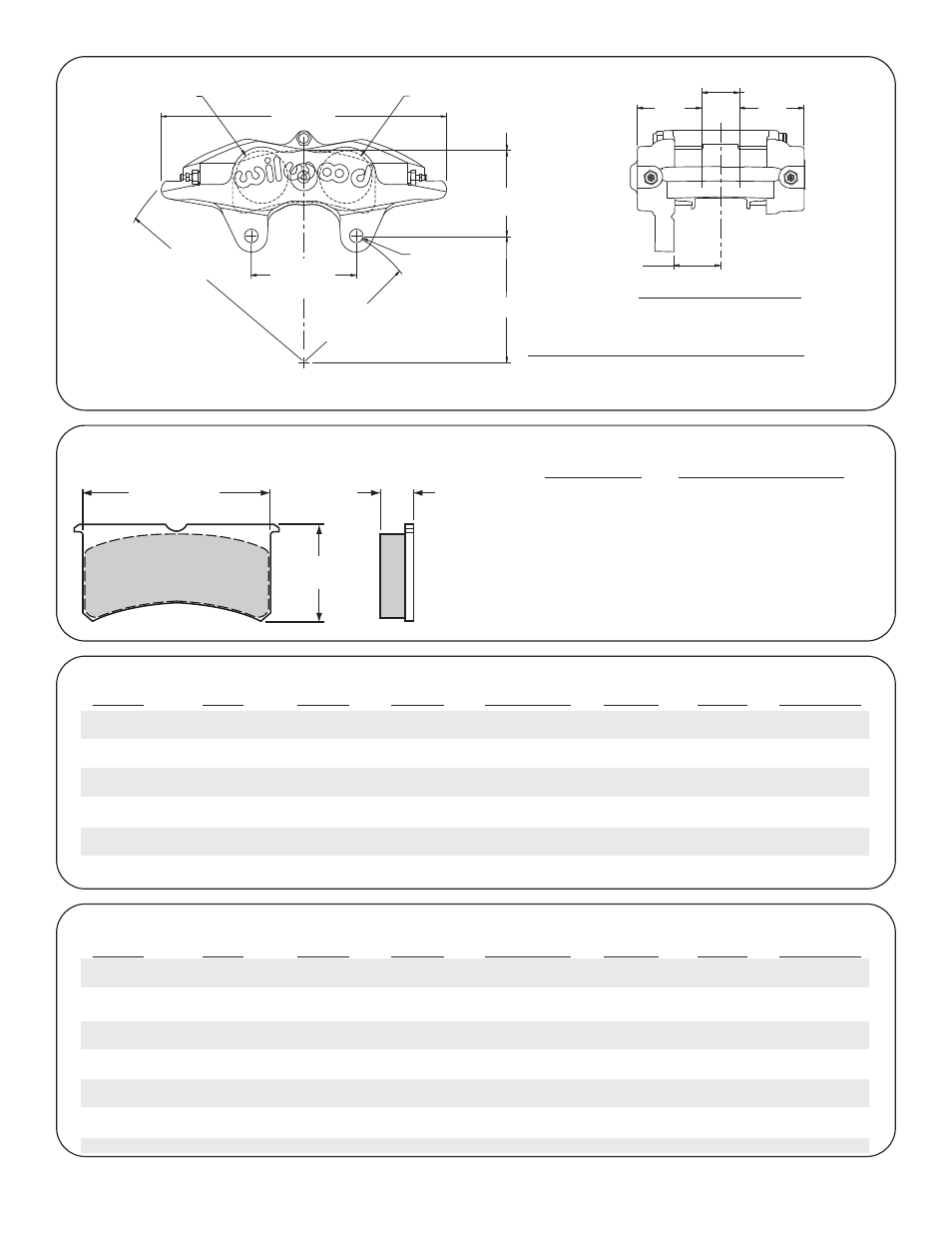

FSLI CALIPER, MOUNTING DIMENSIONS:
2.43 (61,7)
.80
(20,3) 4.74 (120,4)
FSLI CALIPER, TYPE 7420 PAD DIMENSIONS AND ORDERING INFORMATION:
AXLE SET P/N PAD TYPE / COMPOUND
15A - 5938K 7420 A PolyMatrix
15B - 5939K 7420 B PolyMatrix
15C - 6853K 7420 C PolyMatrix
15E - 6084K 7420 E PolyMatrix
15H - 8114K 7420 H PolyMatrix
15Q - 6829K 7420 Q PolyMatrix
150 - 8854K 7420 10 BP-10 Smart Pad
150 - 9416K 7420 20 BP-20 Smart Pad
150 - 9864K 7420 30 BP-30 Smart Pad
150 - 8323K 7420 SM For Titanium Rotor
ORDERING INFORMATION, USER SERVICEABLE COMPONENTS - FSLI MODELS:
CALIPER SQ RING BLEED SCREW CROSSOVER SELF BLEED BRIDGE BRIDGE WEAR
PART NO. PISTON KIT (4 PK) KIT (4 PK) TUBE KIT (4 PK) TUBE (EA) BOLT KIT PLATE-R/L (EA)
120-11125 200-6307 (1.12”) 130-2579 220-0627 — — 230-7539 300-5922/23
120-11126 200-7514 (1.25”) 130-2479 220-0627 — — 230-7539 300-5922/23
120-11127 200-7514 (1.25”) 130-2479 220-0627 — — 230-7541 300-5922/23
120-11128 200-7516 (1.38”) 130-2658 220-0627 — — 230-7539 300-5922/23
120-11129 200-7516 (1.38”) 130-2658 220-0627 — — 230-7540 300-5922/23
120-11130 200-7516 (1.38”) 130-2658 220-0627 — — 230-7541 300-5922/23
120-11131 200-7519 (1.62”) 130-4346 220-0627 — — 230-7539 300-5922/23
120-11132 200-7519 (1.62”) 130-4346 220-0627 — — 230-7540 300-5922/23
120-11133 200-7519 (1.62”) 130-4346 220-0627 — — 230-7541 300-5922/23
120-11134 200-7531 (1.75”) 130-2655 220-0627 — — 230-7539 300-5922/23
120-11135 200-7531 (1.75”) 130-2655 220-0627 — — 230-7540 300-5922/23
120-11136 200-7531 (1.75”) 130-2655 220-0627 — — 230-7541 300-5922/23
ORDERING INFORMATION,USER SERVICEABLE COMPONENTS - PREVIOUS FSL MODELS:
CALIPER SQ RING BLEED SCREW CROSSOVER SELF BLEED BRIDGE BRIDGE WEAR
PART NO. PISTON KIT (4 PK) KIT (4 PK) TUBE KIT (4 PK) TUBE (EA) BOLT KIT PLATE-R/L (EA)
120-7429 200-7531 (1.75”) 130-2655 220-6069 190-5975 190-8310 230-7541 300-5922/23
120-7430 200-7531 (1.75”) 130-2655 220-6069 190-5973 — 230-7539 300-5922/23
120-7431 200-7516 (1.38”) 130-2658 220-6069 190-5975 190-8310 230-7541 300-5922/23
120-7432 200-7516 (1.38”) 130-2658 220-6069 190-5973 — 230-7539 300-5922/23
120-7476 200-7531 (1.75”) 130-2655 220-6069 190-5974 — 230-7540 300-5922/23
120-7477 200-7516 (1.38”) 130-2658 220-6069 190-5974 — 230-7540 300-5922/23
120-7792 200-7514 (1.25”) 130-2479 220-6069 190-5975 190-8310 230-7541 300-5922/23
120-7794 200-7514 (1.25”) 130-2479 220-6069 190-5973 — 230-7539 300-5922/23
120-8282 200-7513 (1.12”) 130-2579 220-6069 190-5975 190-8310 230-7541 300-5922/23
120-8283 200-7513 (1.12”) 130-2579 220-6069 190-5973 — 230-7539 300-5922/23
120-8464 200-7519 (1.62”) 130-4346 220-6069 190-5973 — 230-7539 300-5922/23
120-8465 200-7519 (1.62”) 130-4346 220-6069 190-5974 — 230-7540 300-5922/23
120-8466 200-7519 (1.62”) 130-4346 220-6069 190-5975 190-8310 230-7541 300-5922/23
Wilwood • August 2012 • 805 / 388-1188 • Fax 805 / 388-4938 • www.wilwood.com
E-mail Technical Assistance: [email protected]
