Wilwood Tandem Master Cylinder (TM1) - Manual (Page 3)

Wilwood Disc Brakes • Camarillo, CA 93012 Phone 805 / 388-1188 • www.wilwood.com
E-mail Technical Assistance: [email protected]
2.36
(59,9)
6.26 (159,0)
11.53 (292,9)
2.41 (61,2) .58 (14,7)
3.53 (89,7)
.39 (9,9) DIA
.67 (17,0)
.33 (8,4) DIA
MOUNT HOLE
M10 X 1.00 THREAD
x .500 DEEP BANJO
OUTLET FITTING
1.44
(36,6)
1.74
(44,2)
.55
(14,0)
.34 (8,6)

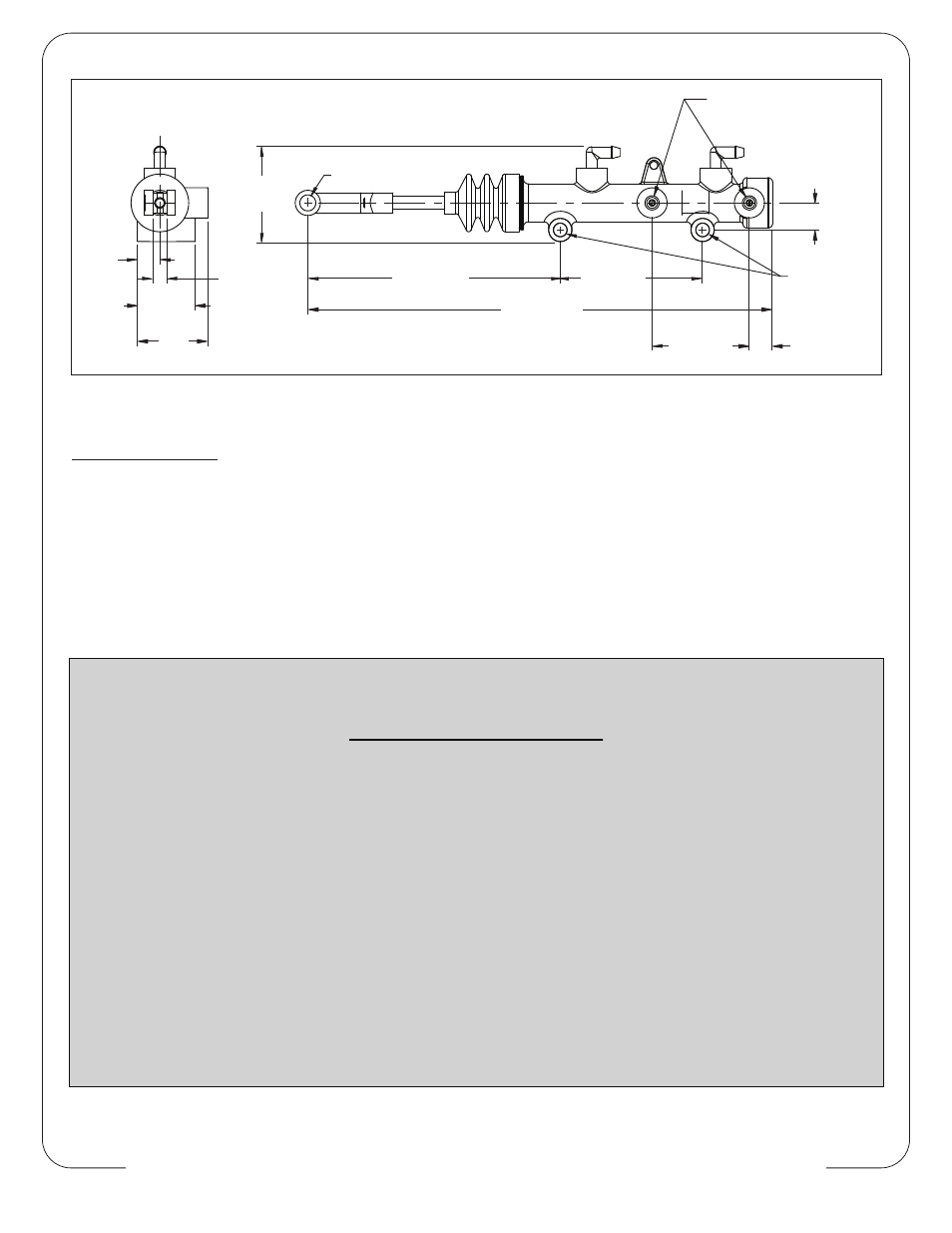

Figure 2. Wilwood 5/8” TM1 Tandem Master Cylinder, Mounting Dimensions
• Make sure pedal is firm: Hold firm pressure on pedal for several minutes, it should remain in position without
sinking. If pedal sinks toward floor, check system for fluid leaks. DO NOT drive vehicle if pedal does not stay firm
or can be pushed to the floor with normal pressure.
• At very low speed (2-5 mph) apply brakes hard several times while turning steering from full left to full right, repeat
several times. Remove the wheels and check that components are not touching, rubbing, or leaking.
• Carefully examine all brake components, brake lines, and fittings for leaks and interference.
• Make sure there is no interference with wheels or suspension components.
• Drive vehicle at low speed (15-20 mph) making moderate and hard stops. Brakes should feel normal and
positive. Again check for leaks and interference.
• Always test vehicle in a safe place where there is no danger to (or from) other people or vehicles.
• Always wear seat belts and make use of all safety equipment.
WARNING • DO NOT DRIVE ON UNTESTED BRAKES
BRAKES MUST BE TESTED AFTER INSTALLATION OR MAINTENANCE
MINIMUM TEST PROCEDURE
Ordering Information:
5/8” TM1 Tandem Master Cylinder
260-11097
If after following the instructions, you still have difficulty in installing or bleeding your Wilwood master cylinder, consult your local
chassis builder, or retailer where the item was purchased for further assistance. Additionally, you can visit our web site at
www.wilwood.com, call our customer service department at (805) 388-1188, or e-mail technical assistance at:
[email protected]
