Mounting Requirements, Variations

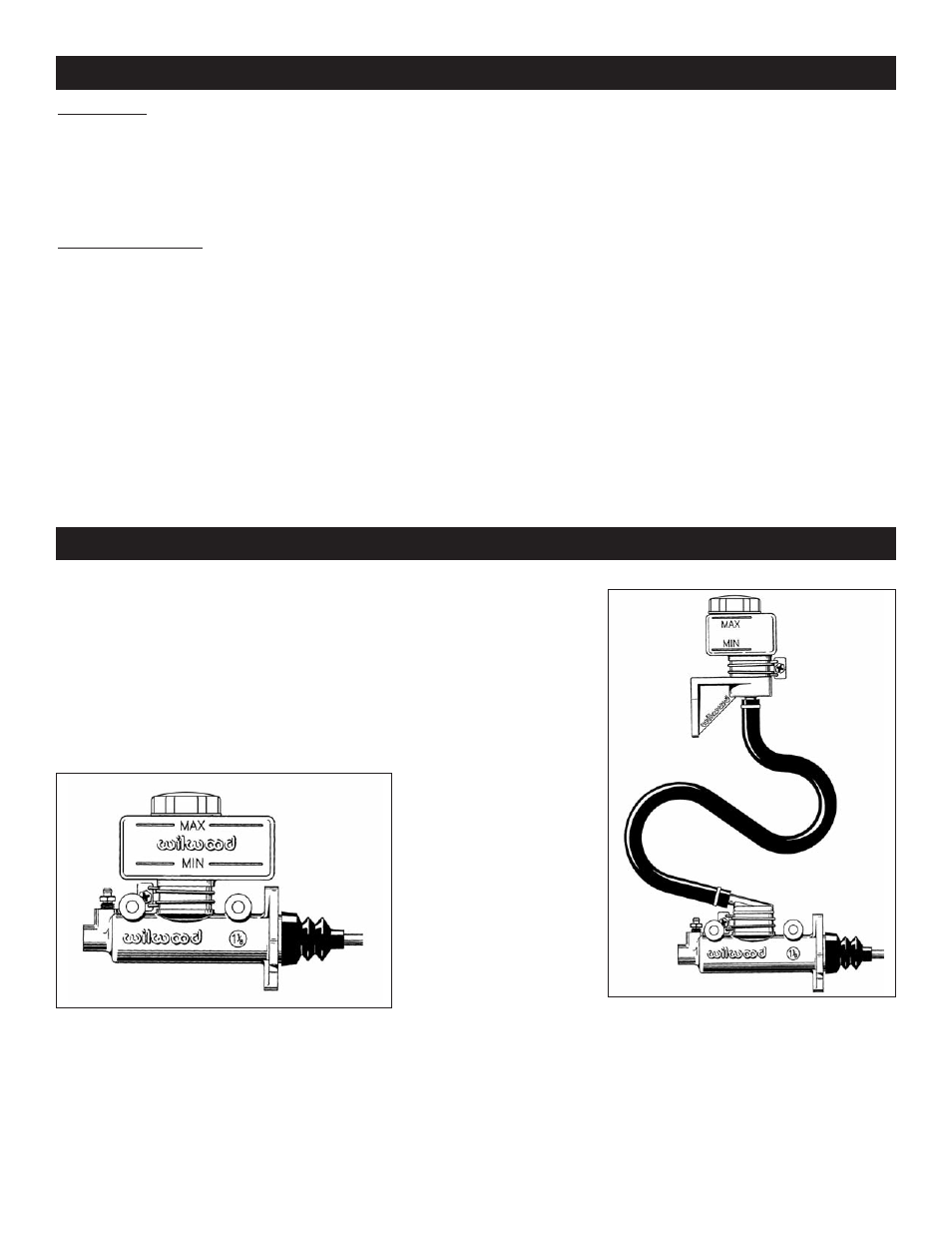

Figure 2. Remote Mounted Master Cylinder
Figure 1. Direct Mounted Master Cylinder
FOUR DIFFERENT MASTER CYLINDER COMBINATIONS AVAILABLE IN ONE KIT
Wilwood’s new master cylinder combination kit can be mounted with the reservoir on
the master cylinder body “direct mount” (Figure 1), or the reservoir positioned at a
convenient remote location “remote mount” (Figure 2), and then connected via a flexible
hose.
Both versions can utilize either a large or small mount reservoir (included in the kit), as
your application warrants. Refer to Figure 3, page 4 for the minimum mounting
requirements before installation begins.
Page 3
General Information and Installation Instructions (Continued)
Maintenance:
Master cylinder rebuild kits are available for all bore sizes (see ordering information, below) and should be rebuilt periodically (reference
Figure 4, the exploded diagram on the back of this sheet). Always inspect master cylinders before and after every race for damage or
leakage. When rebuilding master cylinders, take care not to damage piston seals. Test master cylinder before usage. Use Wilwood
Hi-Temp° 570 brake fluid as a lubricant when assembling.
Ordering Information:
5/8” Combination Master Cylinder Kit (1.3 stroke)
260-3372 5/8” Combination Rebuild Kit 260-3880
3/4” Combination Master Cylinder Kit (1.1 stroke) 260-3374 3/4” Combination Rebuild Kit 260-3881
13/16” Combination Master Cylinder Kit (1.1 stroke) 260-5920 13/16” Combination Rebuild Kit 260-5921
7/8” Combination Master Cylinder Kit (1.2 stroke) 260-3376 7/8” Combination Rebuild Kit 260-3882
1” Combination Master Cylinder Kit (1.0 stroke) 260-3378 1” Combination Rebuild Kit 260-3883
1-1/8” Combination Master Cylinder Kit (1.0 stroke) 260-3380 1-1/8” Combination Rebuild Kit 260-3884
If after following the instructions, you still have difficulty in installing or bleeding your Wilwood master cylinder, consult your local chassis
builder, or retailer where the kit was purchased for further assistance.
