Wilwood MasterCylinder No: 260-3278 - Manual

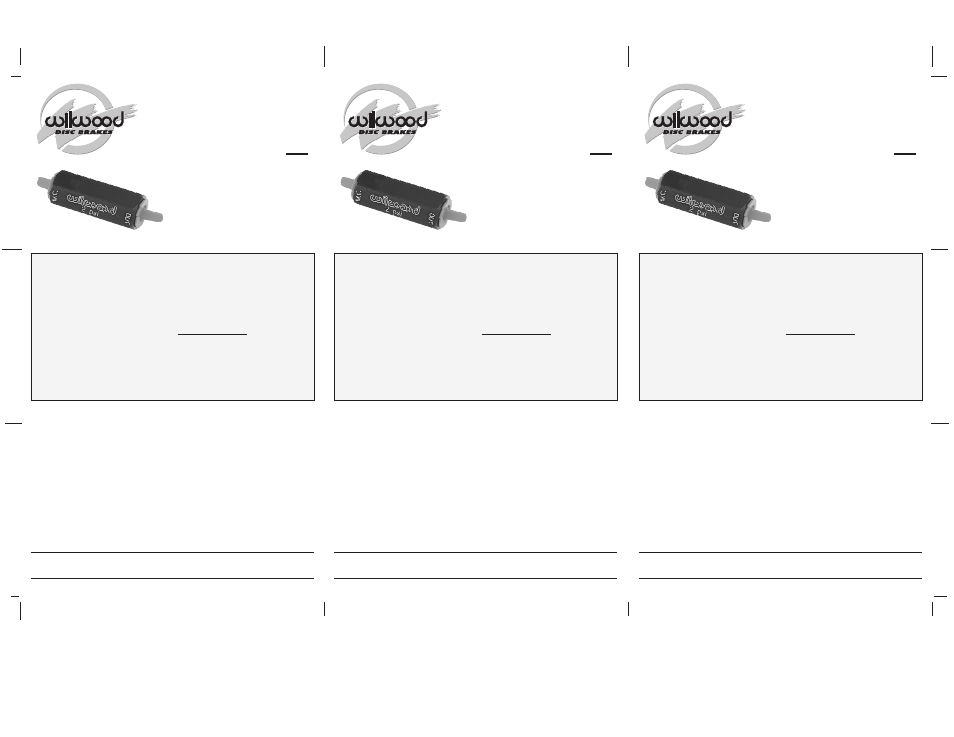

This package contains ONE
of the following :
RESIDUAL
PRESSURE VALVE
WARNING
IT IS THE RESPONSIBILITY OF THE PERSON SELECTING OR INSTALLING ANY BRAKE
COMPONENT OR KIT TO DETERMINE THE SUITABILITY OF THE COMPONENT OR KIT
FOR THAT PARTICULAR APPLICATION. IF YOU ARE NOT SURE HOW TO SAFELY USE
THIS BRAKE COMPONENT OR KIT, YOU SHOULD NOT INSTALL OR USE IT. DO NOT
ASSUME ANYTHING. IMPROPERLY INSTALLED OR MAINTAINED BRAKES ARE
DANGEROUS. IF YOU ARE NOT SURE, GET HELP OR RETURN THE PRODUCT. YOU MAY
OBTAIN ADDITIONAL INFORMATION AND TECHNICAL SUPPORT BY CALLING WILWOOD
AT (805) 388-1188, OR VISIT OUR WEB SITE AT WWW.WILWOOD.COM. USE OF WILWOOD
TECHNICAL SUPPORT DOES NOT GUARANTEE PROPER INSTALLATION. YOU, OR THE
PERSON WHO DOES THE INSTALLATION MUST KNOW HOW TO PROPERLY USE THIS
PRODUCT. IT IS NOT POSSIBLE OVER THE PHONE TO UNDERSTAND OR FORESEE ALL
THE ISSUES THAT MIGHT ARISE IN YOUR INSTALLATION.
RACING EQUIPMENT AND BRAKES MUST BE MAINTAINED AND SHOULD BE CHECKED
REGULARLY FOR FATIGUE, DAMAGE, AND WEAR.
• 2 lb. (P/N 260-1874 • Blue)
• 2 lb. (P/N 260-3278 w/fittings)
• 10 lb. (P/N 260-1876 • Red)
• 10 lb. (P/N 260-3279 w/fittings)
DS-100H REV DATE: 06-29-09
4700 Calle Bolero • Camarillo, CA 93012 Phone 805 / 388-1188 • Fax 805 / 388-4938
www.wilwood.com • E-mail Technical Assistance: [email protected]
A residual pressure valve is used when a master cylinder is mounted equal to or below
the horizontal plane of the calipers or drum brake wheel cylinders. This valve prevents
fluid flow-back to the master cylinder reservoir which can cause excessive brake travel
or “pumping” of the pedal to engage brakes.
Install the valve as close as possible to the master cylinder and position the end marked
“M.C.” toward the master cylinder and the end marked “OUT” toward the brakes. Ports
in the valve are 1/8-27 NPT threads and will accept standard inverted flare tube
nut adapters.
A 2 lb. valve is designed for disc brakes and a 10 lb. valve for drum brakes. If the vehicle
has a single outlet master cylinder and a disc/disc system, only one 2 lb. valve is
required. If the vehicle has a single outlet master cylinder and a disc/drum system, a 2
lb. valve is required in the disc brake line and a 10 lb. valve in the drum brake line (after
the tee fitting). Balance bar systems require the appropriate valve just outside the
master cylinder.
