Wilwood Dynapro Lug Mount - Manual (Page 2)

Wilwood • February 2008 • 805 / 388-1188 • Fax 805 / 388-4938
DIMENSION "D1" =
(DISC DIAMETER/2) - 2.03 (51,6)
INLET FITTING: 1/8-27 NPT
DISC/WHEEL CENTERLINE
"B"
MOUNT OFFSET
"D1"
2.10 (53,3)
MOUNT HEIGHT
.39 (9,9)
MOUNT HOLE
TOP OF FRICTION MATERIAL
AND DISC O.D. TO BE FLUSH
DISC WIDTH
1.67
(42,4)
1.67
(42,4)
5.25 (133,4)
MOUNT CENTER
7.01 (178,1)
"E"
OUTSIDE
RADIUS
"A"
BOLT CIRCLE RADIUS
3.96 (100,6)
4.15 (105,4)
4.25 (108,0)
4.35 (110,5)
4.53 (115,1)
4.66 (118,4)
4.84 (122,9)
DISC
DIAMETER
10.00 (254,0)
10.50 (266,7)
10.75 (273,1)
11.00 (279,4)
11.44 (290,6)
11.75 (298,5)
12.19 (309,6)
"E"
OUTSIDE RADIUS
6.02 (152,9)
6.23 (158,2)
6.34 (161,0)
6.44 (163,6)
6.63 (168,4)
6.76 (171,7)
6.97 (177,0)
DISC WIDTH
.38 (9,7)
.50 (12,7)
.81 (20,6)
1.00 (25,4)
1.25 (31,8)
"B" MOUNT OFFSET
.76 (19,3)
.82 (20,8)
.98 (24,9)
1.08 (27,4)
1.20 (30,5)
"A"
BOLT CIRCLE RADIUS
PISTON PISTON

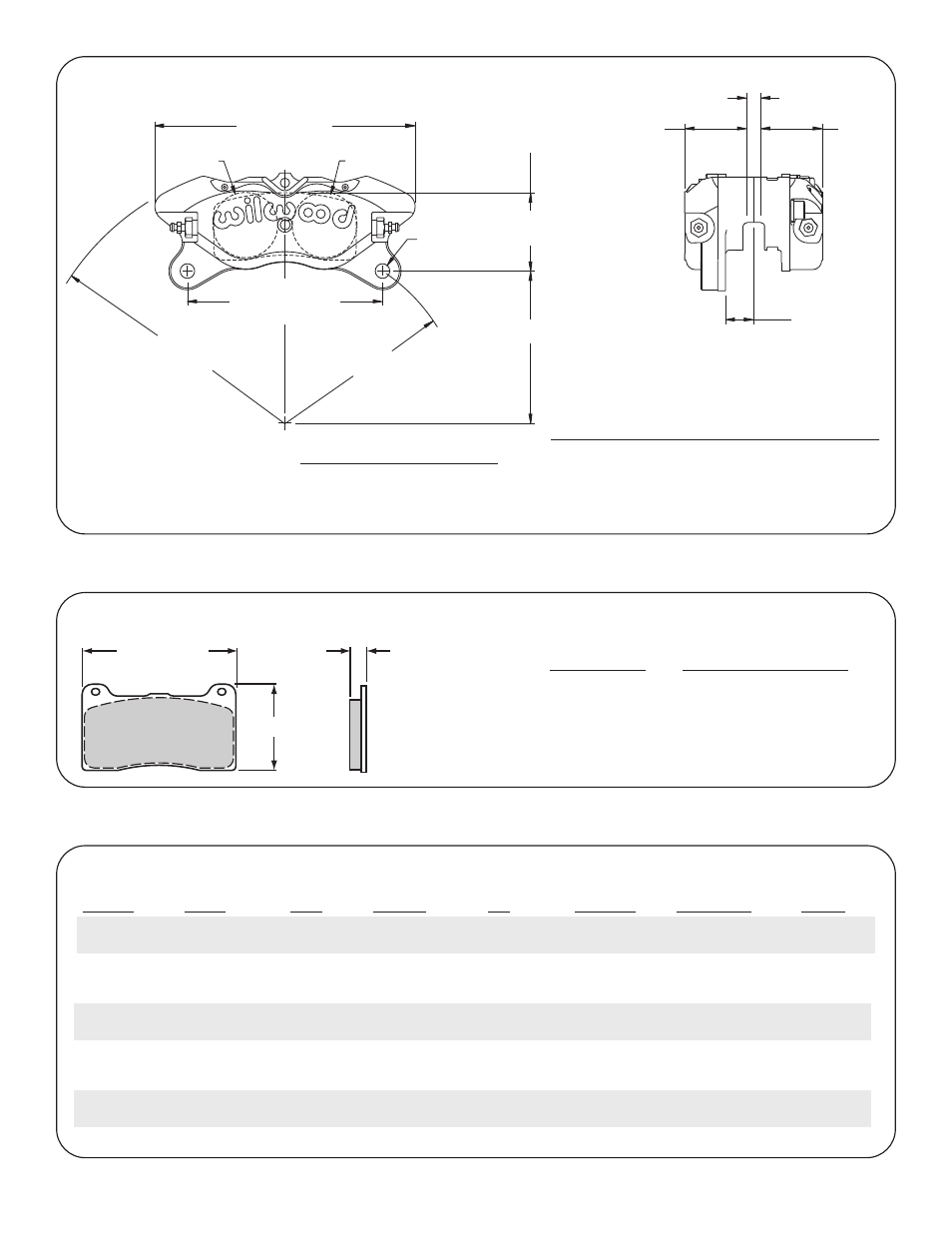

DYNAPRO LUG MOUNT CALIPER, MOUNTING DIMENSIONS:
2.21 (56,0)
.49
(12,4)
3.96 (100,6)
DYNAPRO LUG MOUNT CALIPER, TYPE 7812 PAD DIMENSIONS AND ORDERING INFORMATION:
ORDERING INFORMATION, USER SERVICEABLE COMPONENTS:
CALIPER SQ RING BLEED SCREW BODY SEAL BRIDGE WEAR PAD RETAINER BRIDGE BOLT
PART NO. PISTON (4 PK) KIT (4 PK) (EA) PLATE (EA) CLIP PIN (EA) KIT (EA)
120-9691 200-7528 (1.75”) 130-2655 220-0627 210-2582 300-5875 300-9638 230-10119
120-9692 200-7528 (1.75”) 130-2655 220-0627 210-2582 300-5875 300-9637 —
120-9693 200-7528 (1.75”) 130-2655 220-0627 210-2582 300-5875 300-9636 230-10118
120-9694 200-7528 (1.75”) 130-2655 220-0627 210-2582 300-5875 300-9635 —
120-9695 200-7528 (1.75”) 130-2655 220-0627 210-2582 300-5875 300-9634 230-10117
120-9701 200-7518 (1.38”) 130-2658 220-0627 210-2582 300-5875 300-9638 230-10119
120-9702 200-7518 (1.38”) 130-2658 220-0627 210-2582 300-5875 300-9637 —
120-9703 200-7518 (1.38”) 130-2658 220-0627 210-2582 300-5875 300-9636 230-10118
120-9704 200-7518 (1.38”) 130-2658 220-0627 210-2582 300-5875 300-9635 —
120-9705 200-7518 (1.38”) 130-2658 220-0627 210-2582 300-5875 300-9634 230-10117
120-9706 200-6979 (1.00”) 130-4320 220-0627 210-2582 300-5875 300-9636 —
AXLE SET P/N PAD TYPE / COMPOUND
15A - 9835K 7812 A PolyMatrix
15B - 9836K 7812 B PolyMatrix
15E - 9837K 7812 E PolyMatrix
150 - 9136K 7812 10 BP-10 Smart Pad
150 - 9418K 7812 20 BP-20 Smart Pad
150 - 10020K 7812 CMFor Titanium Rotor
