Wilwood Billet Go-Kart - Manual

4700 Calle Bolero • Camarillo, CA 93012 Sales: 805 / 388-1188 • Fax: 805 / 388-4938 • www.wilwood.com
62B (12/00)

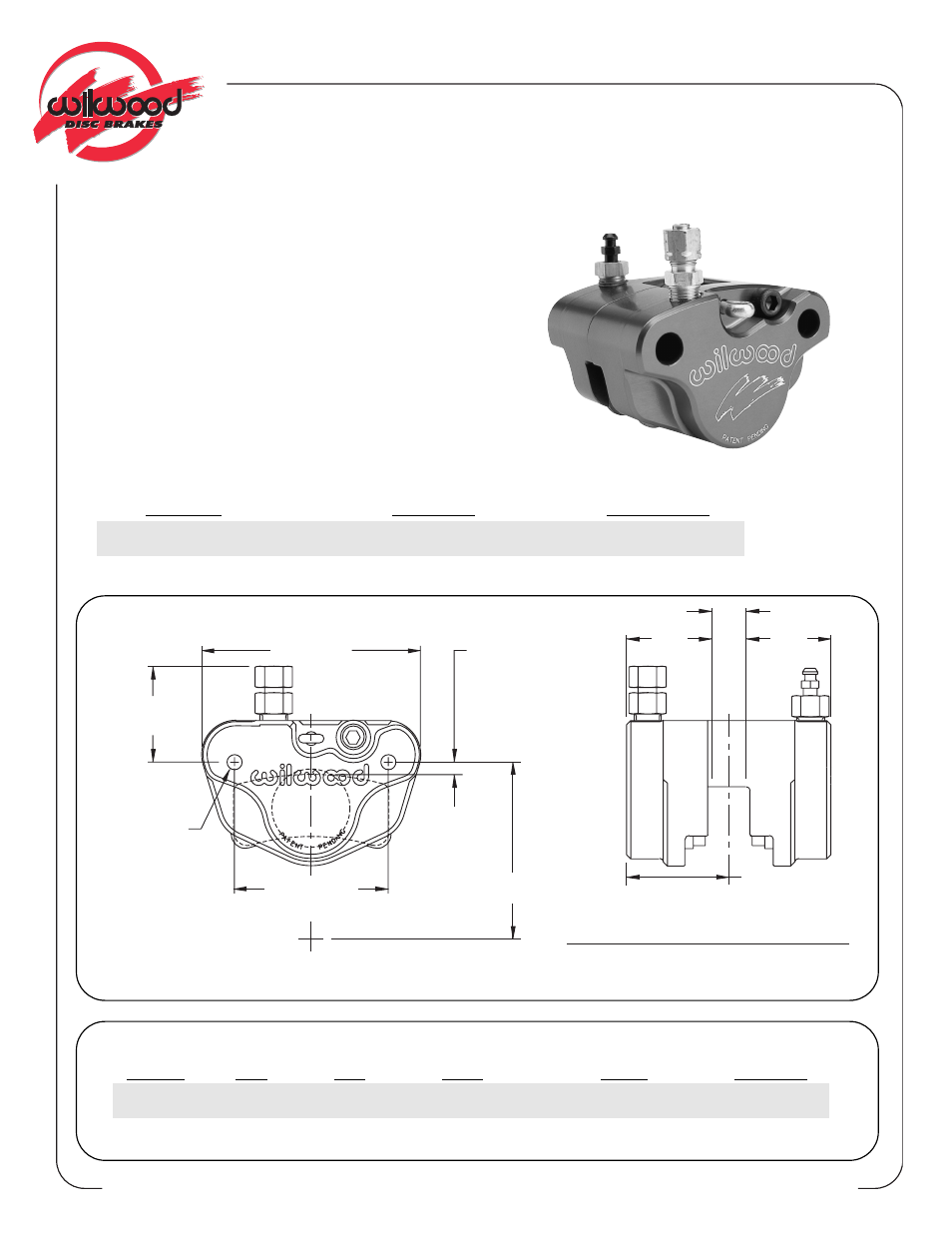

KART / JR. DRAGSTER CALIPER
Caliper Highlights:
Wilwood’s Kart / Jr. Dragster Caliper has been designed
specifically for racing. A unique self retracting and adjusting
piston system has been incorporated into this caliper which
enables the piston to retract as the brake line pressure is
reduced. The caliper can be mounted on either side of the
vehicle and comes in three rotor widths to accommodate
most applications. Weighing a meager 1.2 pounds, the
caliper’s lightweight billet design includes high performance,
high friction brake pads. Additional features include deep
cup stainless steel piston for reduced heat transfer, cotter
pin, pad retainer, internal fluid passage and blue anodized
finish. A specifically designed master cylinder is also
available for use with this caliper.
ORDERING INFORMATION:
BORE SIZE DISC WIDTH PART NUMBER
1.00” 25,4 mm .12” 3,0 mm 120-5498
1.00” 25,4 mm .18” 4,6 mm 120-5750
1.00” 25,4 mm .50” 12,7 mm 120-5499
3.18 (80,8)
2.25 (57,2)
MOUNT CENTER
"D1"
.19 (4,8)
MOUNT
HEIGHT
1.23
(31,3)
1.23
(31,3)
1.38
(35,1)
DISC/WHEEL CENTERLINE
TOP OF FRICTION
MATERIAL AND
DISC O.D. TO
BE FLUSH
.39 (9,9)
MOUNT
HOLE
DISC WIDTH
"B"
MOUNT OFFSET
DISC
DIAMETER
8.00 (203,2)
8.00 (203,2)
8.75 (222,3)
DISC
WIDTH
.12 (3,05)
.18 (4,6)
.50 (12,7)
"B"
MOUNT OFFSET
1.32 (33,5)
1.36 (34,5)
1.51 (38,4)
DIMENSION "D1" =
(DISC DIAMETER/2) + .19 (4,8)
KART / JR. DRAGSTER CALIPER, MOUNTING DIMENSIONS:
ORDERING INFORMATION: USER SERVICEABLE COMPONENTS:
INBOARD OUTBOARD BRAKE PAD KIT
ASSEMBLY BODY BODY PISTON (2 PACK) REBUILD KIT*
120-5498 110-5477 110-5478 200-5474 (1.00”) 150-5602K 220-5766
120-5499 110-5477 110-5497 200-5474 (1.00”) 150-5602K 220-5766
120-5750 110-5477 110-5749 200-5474 (1.00”) 150-5602K 220-5766
*INCLUDES FITTINGS, RUBBER COMPONENTS AND PAD RETAINERS
