Wilwood Forged Superlite 4 Big Brake Front Brake Kit (Hat) - Manual (Page 3)

Installation of this kit should ONLY be performed by persons experienced in the
installation and proper operation of disc brake systems. Before installation begins,
please read the complete procedure thoroughly to familiarize yourself with the
process, and double check the following items to ensure a trouble-free installation.
•Make sure this is the correct kit to match the exact make and model year of the
vehicle’s hubs (i.e., brackets for a 2000 Toyota spindle will not fit a 2004 Scion
spindle).
•Verify the hat stud pattern in this kit matches the stud pattern of the vehicle’s hubs.
•Verify your wheel clearance using Figure 2.
•Inspect the package contents against the parts list to ensure that all
components and hardware are included.
Disassembly
•Disassemble the original equipment front brakes:
Raise the front wheels off the ground and support the front suspension
according to the vehicle manufacturer’s instructions.
Remove the wheel. Disconnect the caliper brake hose from the brake line at
the body. Remove the two bolts that hold the stock caliper mounting bracket
to the hub. Lift off the bracket and stock caliper as one unit, then slide off the
stock hat and rotor assembly. On some models you may have to unbolt the
stock caliper from the caliper bracket before removal.
•Thoroughly clean the hubs and remove all nicks or burrs.
Assembly Instructions (numbers in parenthesis refer to the part list/diagram on the preceding page): CAUTION: All mounting bolts must
fully engage insert nuts. Be sure to check that all bolts are either flush or protruding through flanged side of insert nut after shimming.
•Insert one sleeve (2) each into the holes on the top and bottom of the spindle “ears” where the OEM caliper bracket was removed.
Apply red Loctite® 271 to the caliper mounting bracket bolt threads (4) before installation of the caliper mounting bracket (1). Install
the bracket with the flanged heads of the clinch nuts facing outboard, as shown in Figure 1. Slide bolt (4) through washer (3) and
into the previously installed sleeve (2), from the backside of the hub. Finger tighten. Repeat for the lower mounting holes. Torque
bolts to 60 ft-lb.
INSIDE WHEEL
PROFILE (MINIMUM
REQUIRED FOR
CLEARANCE)
FACE OF
STOCK HUB
WHEEL STUDS
.85 (21,6)
4.37
(111,0)
7.20
(182,9)
7.31
(185,7)
1.46
(37,1)
STOCK WHEEL
MOUNTING SURFACE
OFFSET
WILWOOD
ROTOR
CENTER
LINE OF
WHEEL
.30 HAT
THICKNESS
REFERENCE
FACE OF
WILWOOD HAT
CALIPER

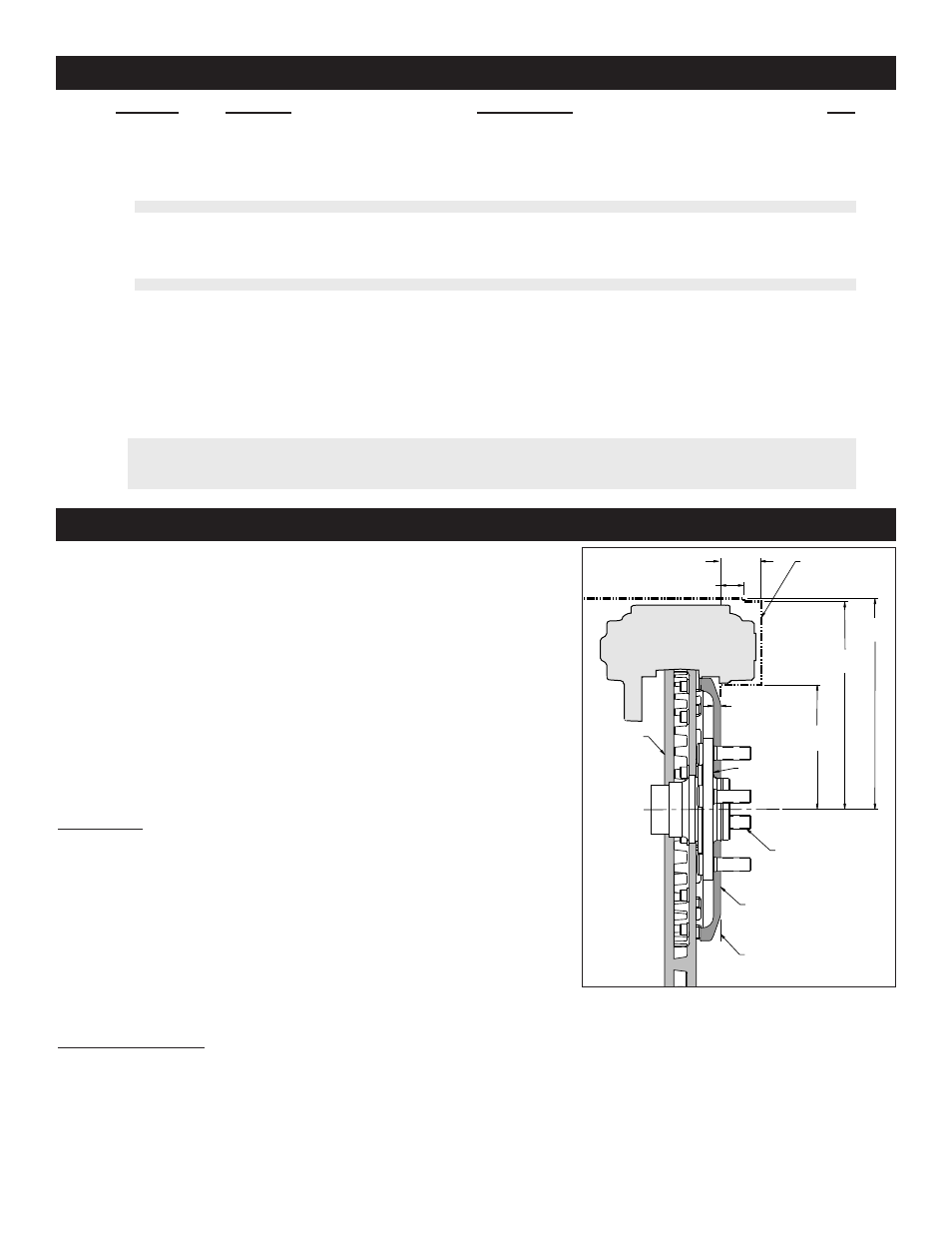

Figure 2. Wheel Clearance Diagram
General Information, Disassembly, and Assembly Instructions
Price List
1
2
3
4
5
5A
6
7
8
9
9A
10
11
12
13
14
2
4
4
4
2
2
2
24
24
2
2
4
4
16
4
1
250-8358
300-8359
240-11101
230-9897
160-6833/34
160-6835/36-BK
170-8357
240-11240
230-6737
120-11128
120-11128-RD
230-10023
240-11101
240-3902
300-8360
150-8855K Bracket, Caliper Mounting
Sleeve
Washer, .453 I.D. x .750 O.D. x .063 Thick
Bolt, 7/16-20 x 1.25 Long, Hex Head
Rotor, 1.10” Thk x 12.90” Dia, 12 x 8.75” Bolt Circle
Rotor, SRP Drilled and Slotted
Hat
Washer, .265 I.D. x .500 O.D. x .063 Thick
Bolt, 1/4-20 x 1.00 Long, 12 Point
Caliper, Forged Superlite 4
Caliper, Forged Superlite 4, Red
Bolt, 7/16-20 x 1.75 Long, Hex Head
Washer, .453 I.D. x .750 O.D. x .063 Thick
Shim, .016 thick
Spacer, .285 Thick
Pad, BP-10 Compound, Axle Set
ITEM NO. PART NO. DESCRIPTION QTY
NOTES: Part Number 230-4572 Rotor Bolt Kit, includes part numbers 230-6737 and 240-11240
Part Number 230-8355 Caliper Bracket Mounting Bolt Kit, includes P/N’s 230-9897, 240-11101 and 300-8359
Part Number 230-8356 Caliper Mounting Bolt Kit, includes P/N’s 230-10023, 240-11101, 240-3902 and 300-8360
Item 5A is an optional item and is included in the (D) drilled rotor kits. Add -D to end of part number when ordering.
Item 9A is an optional item and is included in the (R) red caliper kits. Add -R to end of part number when ordering.
Wilwood offers an optional Braided Stainless Steel Hose Kit. Order part number 220-8336 (not included in kit)
Page 3
