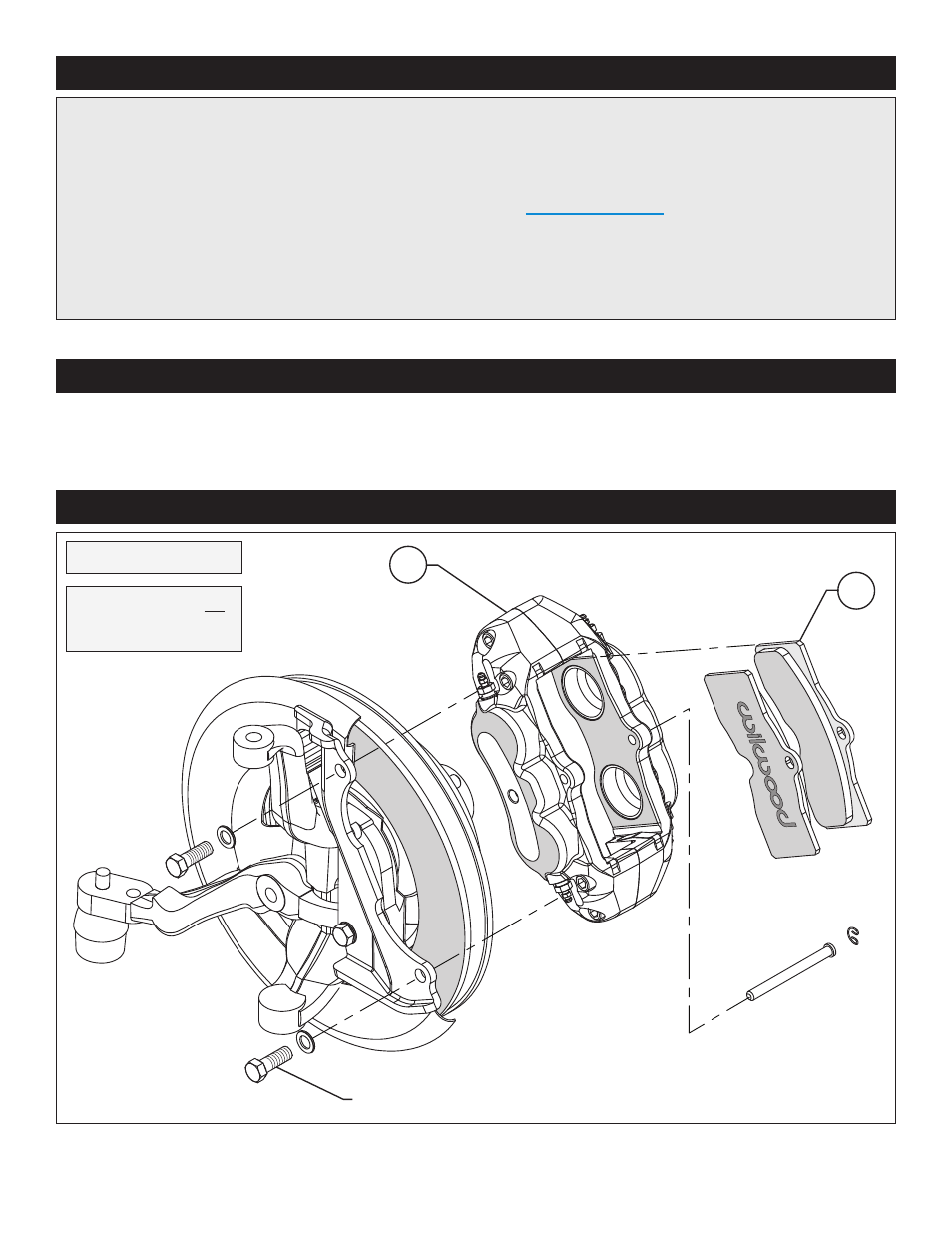

Exploded Assembly Diagram
2
REINSTALL ORIGINAL BOLT AND WASHER (2 PLACES)
1
Figure 1. Typical Installation Configuration
WARNING
INSTALLATION OF THIS KIT SHOULD ONLY BE
PERFORMED BY PERSONS EXPERIENCED IN
THE INSTALLATION AND PROPER OPERATION
OF DISC BRAKE SYSTEMS.
NOTE
SPECIFIC PARTS MAY VARY FROM DIAGRAM
Important Notice - Read This First
Page 2
Before any tear-down or disassembly begins, review the following information:
• Review the wheel clearance diagram (figure 2, page 3) to verify that there is adequate clearance with the
wheels you will be using with the installation.
• OEM brake lines will not adapt to Wilwood calipers. Check the assembly instructions, or associated
components section for brake line recommendations before assembly. In addition, Wilwood offers an
extensive listing of brake lines and fittings on our web site:
www.wilwood.com .
• Due to OEM production differences and other variations from vehicle to vehicle, the fastener hardware and
other components in this kit may not be suitable for a specific application or vehicle.
• It is the responsibility of the purchaser and installer of this kit to verify suitability / fitment of all components
and ensure all fasteners and hardware achieve complete and proper engagement. Improper or inadequate
engagement can lead to component failure.
Photographic Tip
Important and highly recommended: Take photos of brake system before disassembly and during the disassembly process. In the
event, trouble-shooting photos can be life savers. Many vehicles have undocumented variations, photos will make it much simpler for
Wilwood to assist you if you have a problem.
