Wilwood W4A - Manual (Page 2)

Wilwood • March 2012 • 805 / 388-1188 • Fax 805 / 388-4938 • www.wilwood.com
7.09 (180,1)
MOUNT CENTER
LARGE
PISTON SMALL
PISTON
DISC ROTATION
10.96 (278,4)
“E”
OUTSIDE RADIUS
2.09 (53,1)
MOUNT
HEIGHT
DISC/WHEEL CENTERLINE
TOP OF FRICTION MATERIAL
AND DISC O.D. TO BE FLUSH
DISC WIDTH
“B” MOUNT
OFFSET “D1”
2.21 (56,3) 1.98 (50,3)
NOTE: RIGHT HAND, REAR MOUNT
CALIPER SHOWN-INLET FITTING: 1/8-27 NPT
DISC WIDTH
1.10 (27,9)
1.25 (31,8)
"B" MOUNT OFFSET
1.74 (44,9)
1.82 (46,2)
DISC
DIAMETER
12.19 (309,6)
12.72 (323,1)
12.88 (327,2)
13.06 (331,7)
14.00 (355,6)
14.25 (362,0)
14.75 (374,7)
15.00 (381,0)
"E"
OUTSIDE RADIUS
6.94 (176,3)
7.18 (182,4)
7.25 (184,2)
7.34 (186,4)
7.76 (197,1)
7.88 (200,2)
8.11 (206,0)
8.23 (209,0)
DIMENSION "D1" = (DISC DIAMETER/2) - 2.09 (53,1)

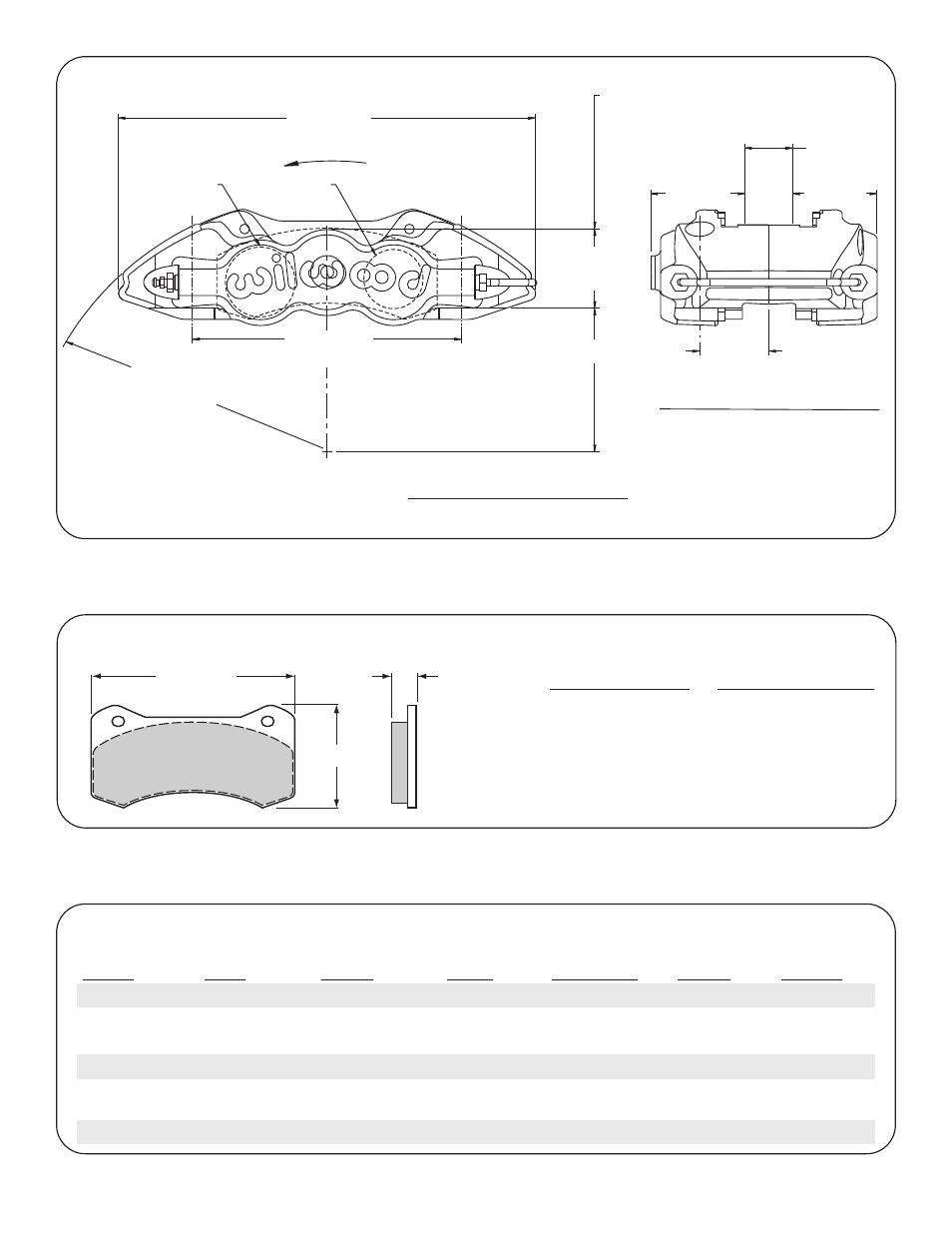

W4A CALIPER, MOUNTING DIMENSIONS:
.67
(17,0)
2.87 (72,9)
5.87 (149,1) AXLE SET PART NO. PAD TYPE/COMPOUND
150 - 9488K 6617 10 BP-10
150 - 9489K 6617 20 BP-20
W4A CALIPER, TYPE 6617 PAD DIMENSIONS AND ORDERING INFORMATION:
ORDERING INFORMATION, USER SERVICEABLE COMPONENTS:
CALIPER SQ RING BLEED SCREW CROSSOVER PAD RETAINER BRIDGE WEAR
PART NO. PISTON KIT (4 PK) KIT ( PK) TUBE KIT (2 PK) KIT (2 PK) PLATE (EA)
120-9679 200-7521 (1.88”) 130-5100 220-6069 190-9875 180-9874 300-5876
200-7519 (1.62”)
120-9680 200-7521 (1.88”) 130-5100 220-6069 190-9875 180-9874 300-5876
200-7519 (1.62”)
120-9681 200-7519 (1.62”) 130-9873 220-6069 190-9875 180-9874 300-5876
200-7516 (1.38”)
120-9682 200-7519 (1.62”) 130-9873 220-6069 190-9875 180-9874 300-5876
200-7516 (1.38”)
120-10904-R/L 200-7514 (1.25”) 130-2479 220-6069 190-11508 180-9874 300-5876
200-7514 (1.25”)
