Parts List

General Information

Installation of this kit should ONLY be performed by persons experienced in the
installation and proper operation of disc brake systems. Before assembling the
Wilwood front disc brake kit, double check the following items to ensure a trouble-
free installation.

•Make sure this is the correct kit to match the exact make and model year of the

vehicles spindle (i.e., hubs for a 1975 Mustang spindle will not fit a 1982 Mustang
spindle).

•Verify the hub stud pattern in this kit matches the stud pattern of the vehicles

wheels.

•Verify your wheel clearance using Figure 2.

•Inspect the package contents against the parts list to ensure that all components

and hardware are included.

WARNING: The wheel contact surfaces must seat completely on the face of the

hub. If any contact surfaces overhang the outside diameter of the hub face, a
6.60” diameter x .20” thick steel spacer (Wilwood P/N 300-11961, sold separately)
MUST be used between the wheel and the hub.

•To prevent damage to the hub face, a 6.15” diameter x .09” thick hub shield

(Wilwood P/N 300-10716, sold separately) should be used with any stamped steel
wheels
that do NOT overhang the outside diameter of the hub face.

•Always tighten lug nuts to the wheel manufacturer’s specifications.

1
2
3
4
5
6
7

7A

8
9

10

11

12
13
14
15
16
17

1
4

10

2
2
2
2
2

10

2
2
2
2
4
4

16

1
2

249-0895L/R
230-0945
230-0921
270-7277
370-0884
380-0885
160-2181
160-2182
230-11239
370-0882
270-2158
211-1674
120-9686
240-10190
230-0228
240-1159
150-9764K
300-9786

Brackets, Caliper Mounting (pair, one each, left and right)
Bolt, 3/8 x 16 x 1.0 Long, FHCS
Stud, 1/2-20 x 3.00 Long, SHCS
Hub Assembly
Cone, Inner Bearing
Seal, Grease
Rotor, .32” Thk x 10.00” Dia, 5 x 3.88” Bolt Circle
Rotor, Drilled
Bolt, 3/8-16 x 1.0 Long, Torx Button Head
Cone, Outer Bearing
Cap, Dust
O-ring
Caliper, Billet DynaPro Single
Washer, .391 I.D. x .625 O.D. x .063 Thick
Bolt, 3/8-24 x 1.25 Long, Hex Head
Shim, 0.032 inch Thick
Pads, BP-10 Compound, Axle Set
Clip, Retainer

ITEM NO.

PART NO.

DESCRIPTION

QTY

NOTES:
Part Number 230-3829 Bolt Kit, rotor to hub, includes part number 230-11239
Part Number 230-0204 Bolt Kit, caliper to bracket, includes part numbers 230-0228, 240-10190 and 240-1159
Item 7A is an optional item and is included in the (D) Drilled kits

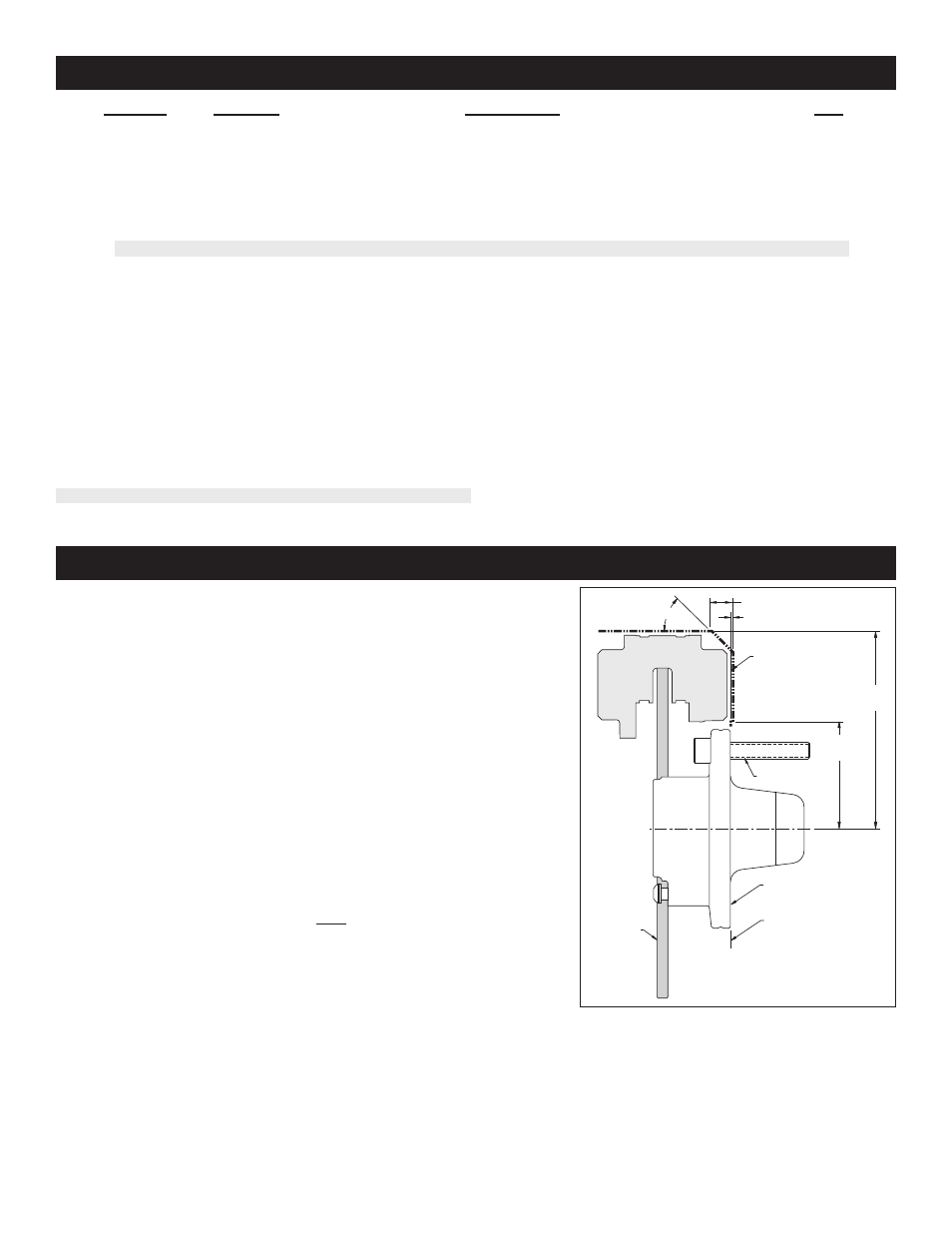

FACE OF HUB

WILWOOD
ROTOR

INSIDE WHEEL PROFILE
(MINIMUM REQUIRED
FOR CLEARANCE)

CENTER
LINE OF
WHEEL

5.96

(151,4)

3.15

(80,0)

.62 (15,7)

.02 (0,5)

45°

WHEEL STUDS

WHEEL MOUNTING
SURFACE OFFSET

CALIPER

Figure 2. Wheel Clearance Diagram
