Wilwood Billet Superlite 6 Lug Mount Caliper - Manual (Page 2)

Wilwood • Sept 2001 • 805 / 388-1188 • Fax 805 / 388-4938 • www.wilwood.com
ORDERING INFORMATION:
NOTES: (1) REFERENCE FRONT OF TECHNICAL CATALOG FOR GENERAL ORDERING INFORMATION
(2) AVAILABLE POLISHED, ADD-P TO END OF PART NUMBER
FS = FRONT SIDE MOUNT, RS = REAR SIDE MOUNT
BILLET SUPERLITE 6: (1, 2)
DIFFERENTIAL BORE
FRONT MOUNT REAR MOUNT
PART NUMBER PART NUMBER
BORE SIZE DISC WIDTH RH LH RH LH
1.62/1.12/1.12” 1.25” 31,8 mm 120-5960-FS 120-5961-FS 120-5960-RS 120-5961-RS
41,1/28,4/28,4 mm
1.62/1.12/1.12” 1.00” 25,4 mm 120-5958-FS 120-5959-FS 120-5958-RS 120-5959-RS
41,1/28,4/28,4 mm
1.62/1.12/1.12” .81” 20,6 mm 120-5956-FS 120-5957-FS 120-5956-RS 120-5957-RS
41,1/28,4/28,4 mm
BILLET SUPERLITE 6R: (1)
DIFFERENTIAL BORE
FRONT MOUNT REAR MOUNT
PART NUMBER PART NUMBER
BORE SIZE DISC WIDTH RH LH RH LH
1.62/1.12/1.12” 1.25” 31,8 mm 120-6115-FS 120-6116-FS 120-6115-RS 120-6116-RS
41,1/28,4/28,4 mm
1.62/1.12/1.12” 1.00” 25,4 mm 120-6113-FS 120-6114-FS 120-6113-RS 120-6114-RS
41,1/28,4/28,4 mm
1.62/1.12/1.12” .81” 20,6 mm 120-6111-FS 120-6112-FS 120-6111-RS 120-6112-RS
41,1/28,4/28,4 mm
2.43 (61,7)
.80
(20,3) 4.74 (120,4)

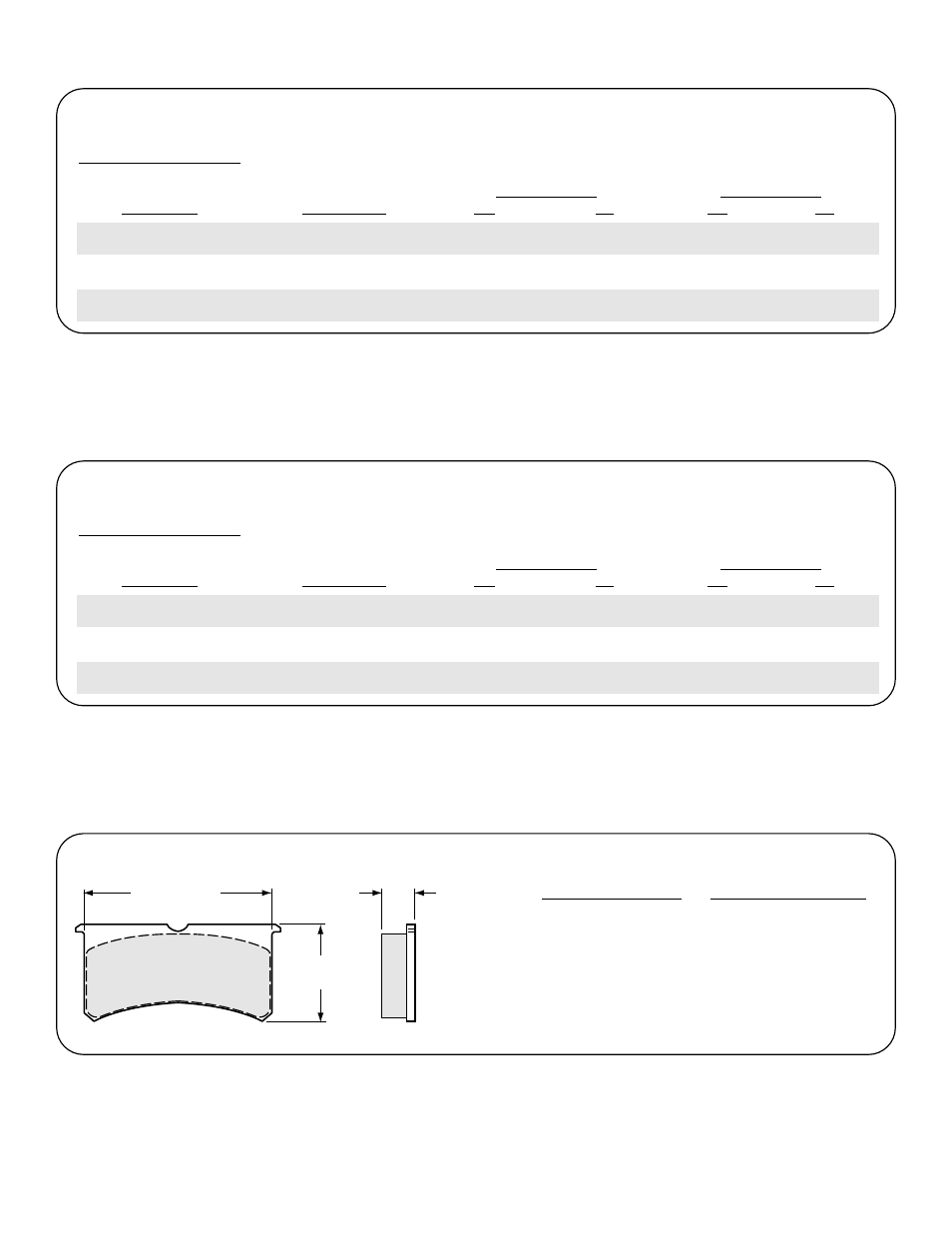

TYPICAL CALIPER, TYPE 7420 PAD DIMENSIONS AND ORDERING INFORMATION:
AXLE SET PART NO. PAD TYPE/COMPOUND
15A - 5938K 7420 A PolyMatrix
15B - 5939K 7420 B PolyMatrix
15D - 5935K 7420 D PolyMatrix
15E - 6084K 7420 E PolyMatrix
15J - 6443K 7420 J PolyMatrix
15Q- 6828K 7416 Q PolyMatrix
15Q- 6829K 7420 Q PolyMatrix
15T - 5916K 7420 T PolyMatrix
