Series 2 Chain Conveyors Optional Carry-over Bars
Carry-Over Bars - Reversing Conveyor
For applications where the enmasse conveyor may
run in a reversing direction, carry-over bars should
be installed in the head assembly. These bars will
ensure a smooth transition of the chain and flights
from the head discharge into the conveyor box.
The carry-over bar package consists of four (4)
carry-over bars, four (4) clips, and two (2) shims
plus the hardware necessary to attach these com-
ponents within the head assembly.
Pre-assemble the two pairs of carry-over bars
and clips using the 3/8” bolts and nuts. Be sure to
center the clips to the vertical slots on each end
of the carry-over bars.

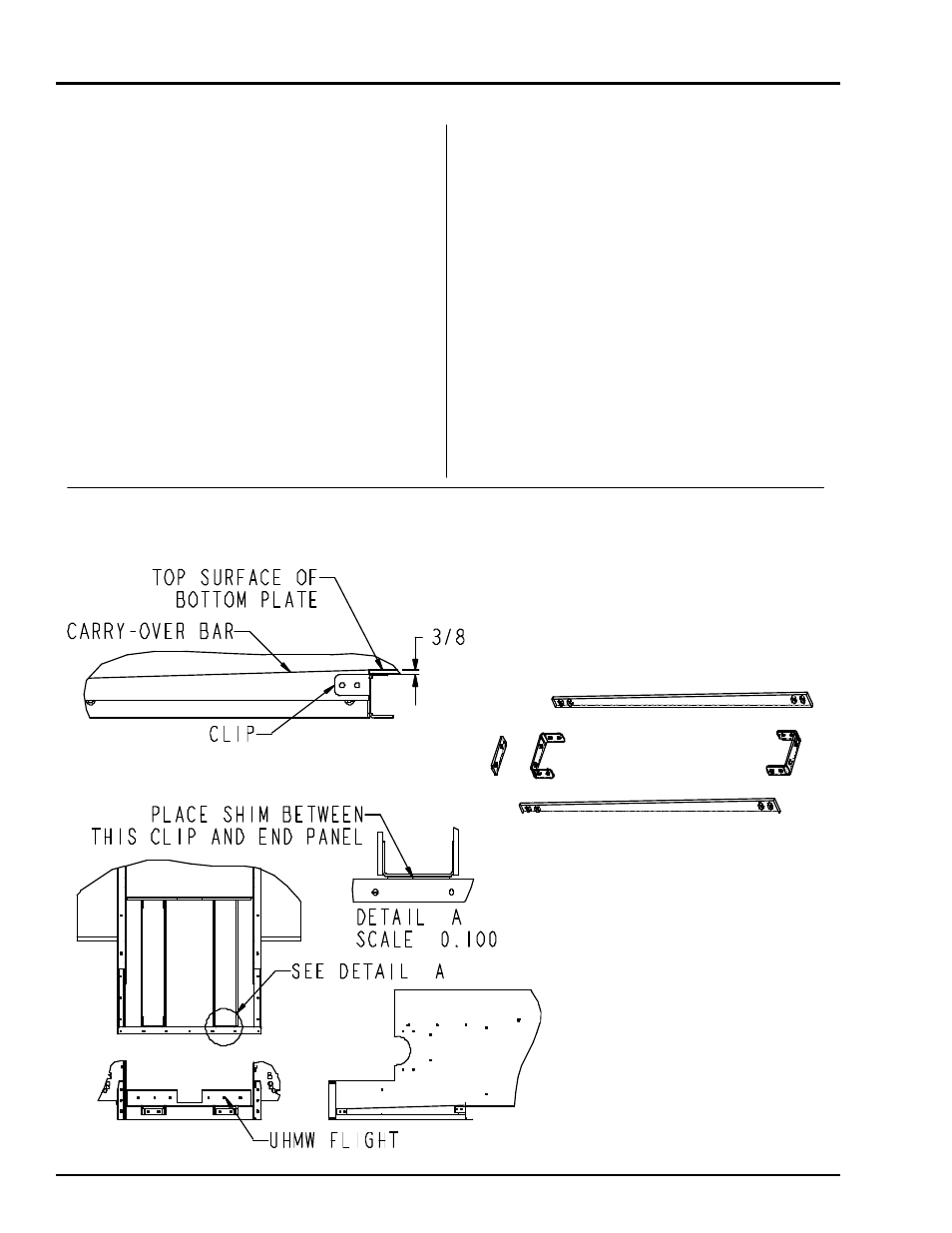

Next, place the pre-assembled pairs of carry-over
bars in the head discharge as shown below. It is
imperative that these carry-over bars be spaced
so that they pick up the UHMW flights as shown
below.
After the two pairs of carry-over bars have been
positioned, mark the locations for the eight (8)
9/16” diameter holes and drill. Attach with the
1/2” hardware provided.
After installation, check that the top edge of the
carry-over bars does not extend above the top sur-
face of the bottom plate.
