16 PNEG-1375 Farm/Commercial Distributor Cable Control
5. INSTALLATION
Lower Cable Wheel Assembly
Once the control handle has been assembled the lower cable wheel can be installed. The
location of the lower cable wheel assembly (GSB-0049) is decided by where the operator will be
positioned. Once the desired height has been determined for the lower cable wheel, it must be

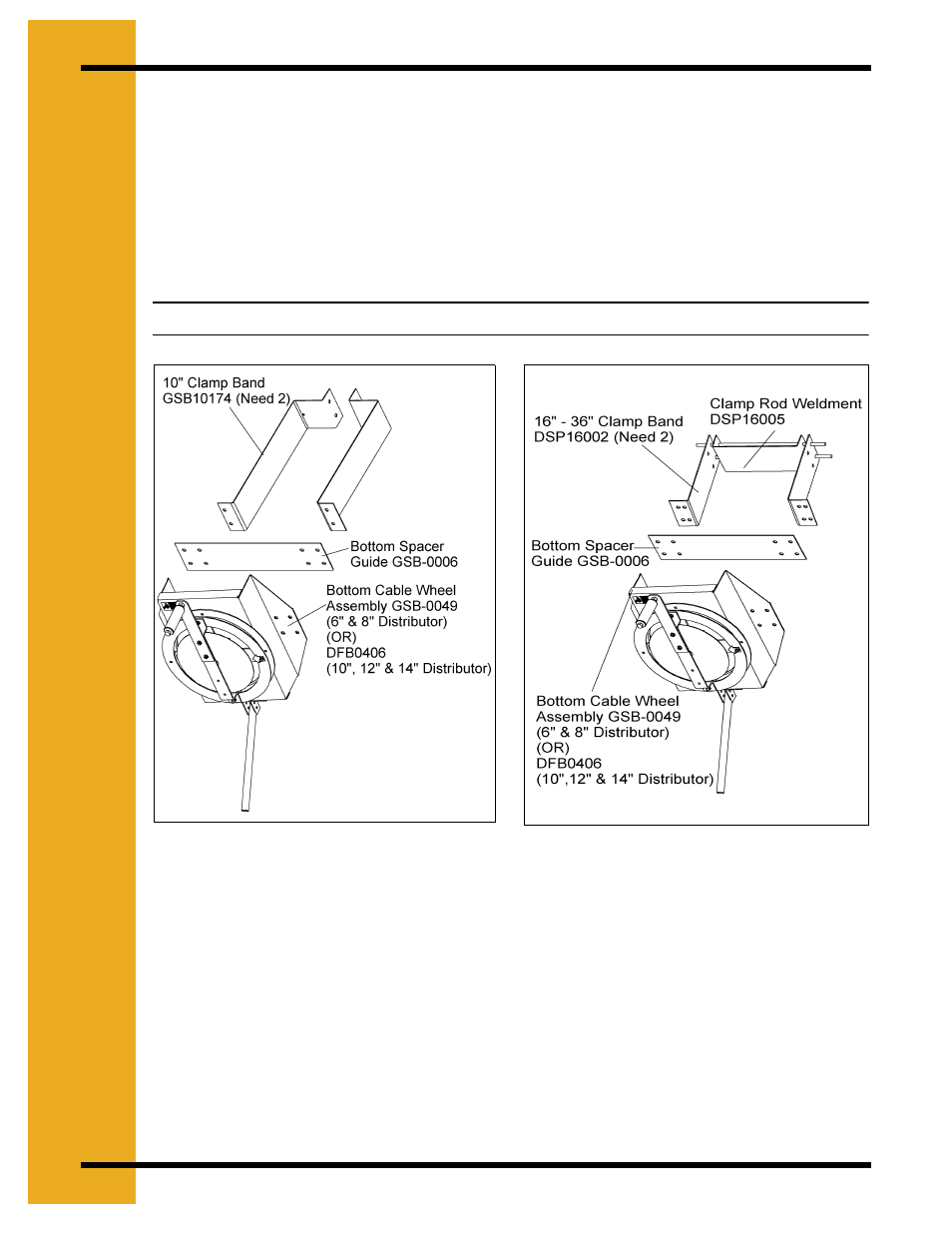

fastened to the trunking. The assembly of the lower cable wheel and clamp bands are shown in
Figure 5G & Figure 5H . The 1/2" x 2" bolts and nuts to fasten clamp bands to the lower cable
wheel are provided in the hardware package (FC-DCG-HDW). These clamp bands vary
depending on what size leg you have.
Refer to Table on Page 14 to see what clamp bands
should be used.
Note: Use caution when tightening hardware, do not overtighten and collapse trunking.
Figure 5G Trunking Removed for Clarity
Figure 5H Trunking Removed for Clarity
