Overall gate dimensions – Grain Systems Bucket Elevtors, Conveyors, Series II Sweeps PNEG-765 User Manual
Page 3
3
PNEG-765 Gate Manual

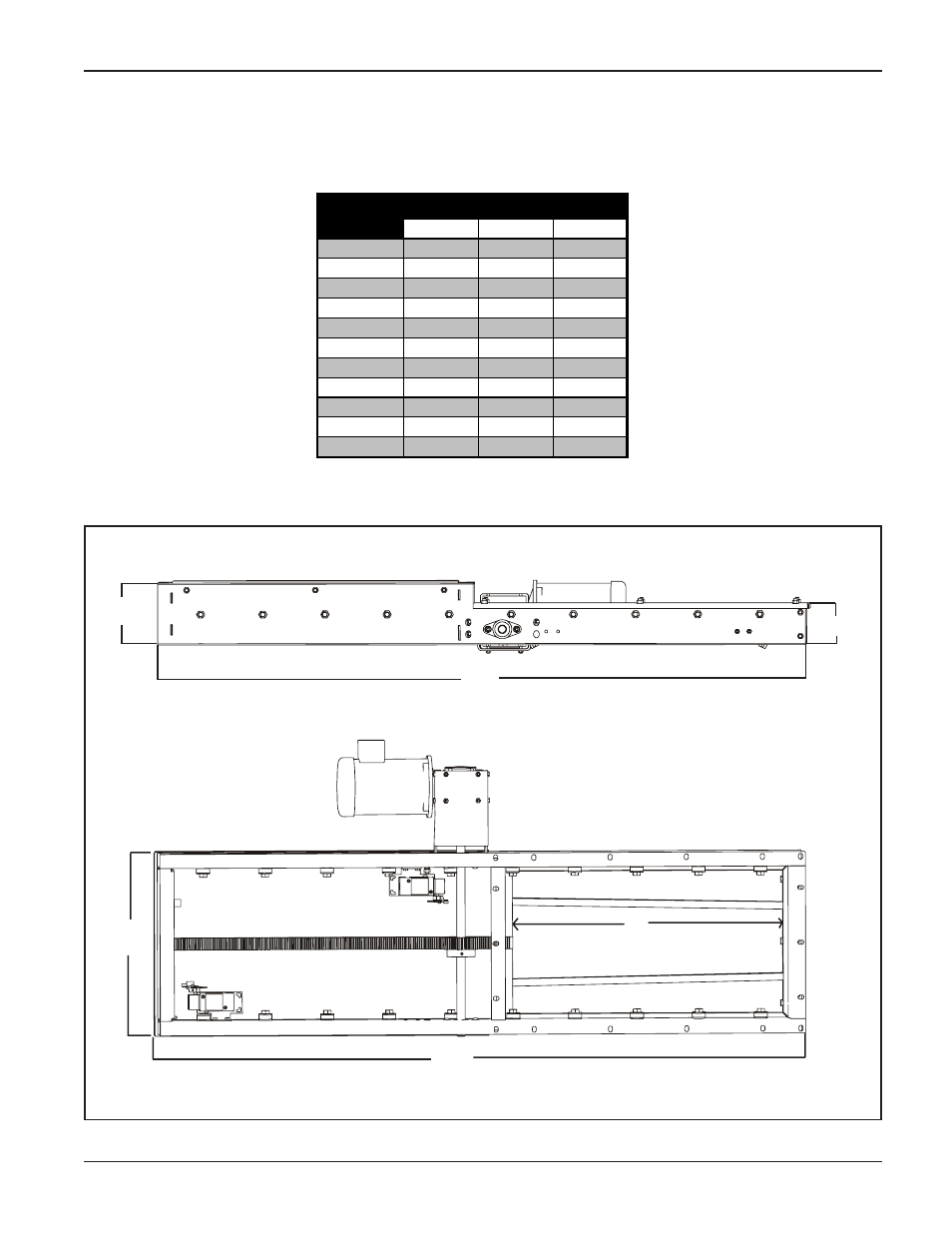

OVERALL GATE DIMENSIONS
Overall Gate Dimensions
C
A
B
C
6.50"
4.31"
Conv. Size
A
B
C
0912
9.00
30.00
68.125
1212
12.00
30.00
68.125
1612
16.00
30.00
68.125
1214
12.00
30.00
68.125
1614
16.00
30.00
68.125
2114
21.00
30.00
68.125
1420
14.00
36.00
81.125
1620
16.00
36.00
81.125
2020
20.00
36.00
81.125
2620
26.00
36.00
81.125
3220
32.00
36.00
81.125
Overall Gate Dimensions
