PNEG-1828 42' Dura-Lok Plank and Support Manual

45

6. Layouts

42' Non-Split Floor Bundle Layout

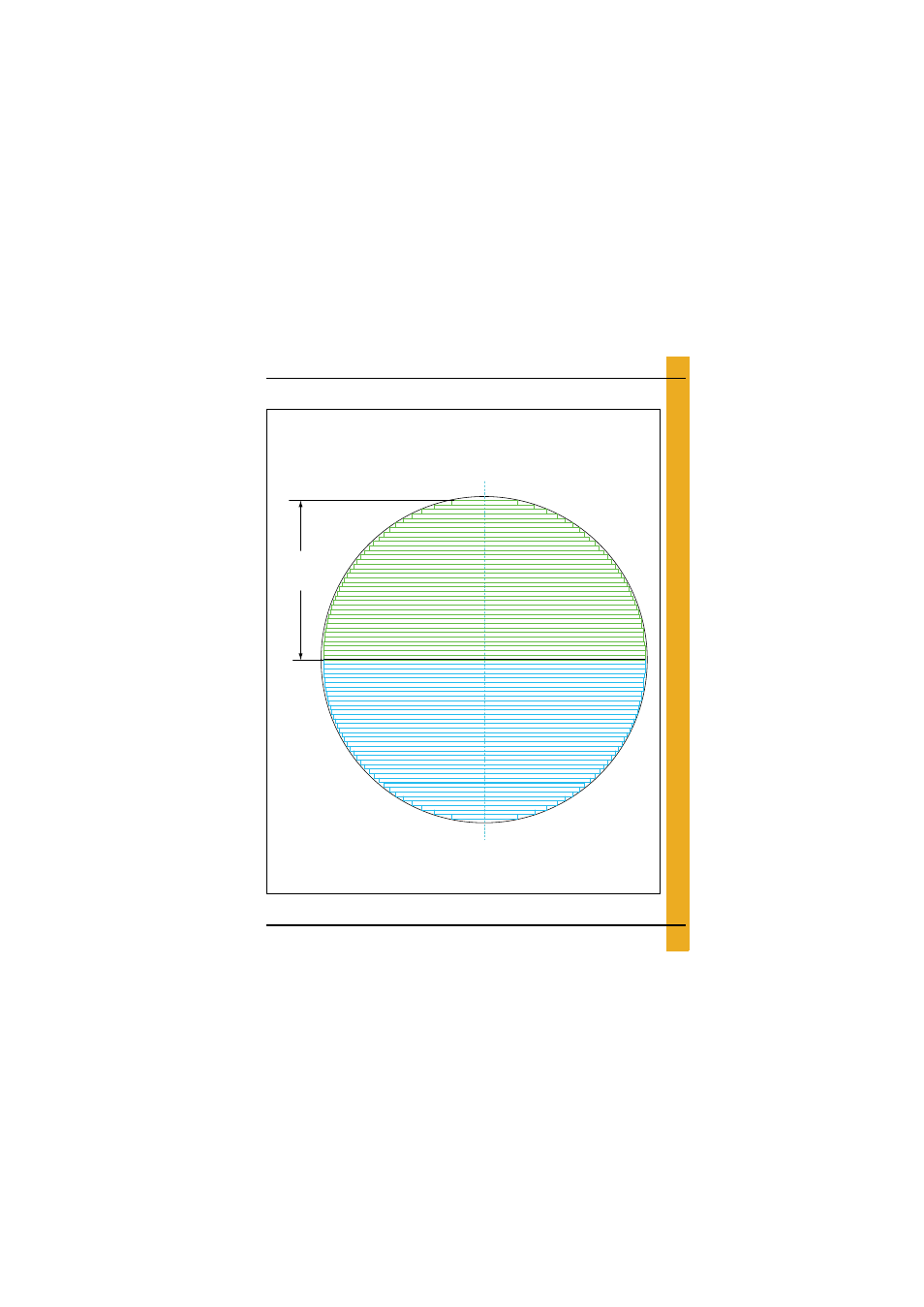

Figure 6Q 42' Non-Split Floor Bundle Layout

NOTE: The 42' floor is split up into two (2) different bundles, two (2) of which are identical to each other. The split
of the floor is staggered from one 7" plank to the next. The bundle is arranged so that the “A” plank is installed
together with the “B” plank. Begin installation with plank 1 found in bundle.

Bundle A

Bundle B

20'-4" Critical

starting

dimension

for first plank
