Grain Systems Bin Accessories PNEG-524 User Manual
Page 17
5. Installation
PNEG-524 Roof Exhaust Fan
17
24" Roof Fan Mounting and Assembly of Fan, Adaptor and
Rainhood (Continued)

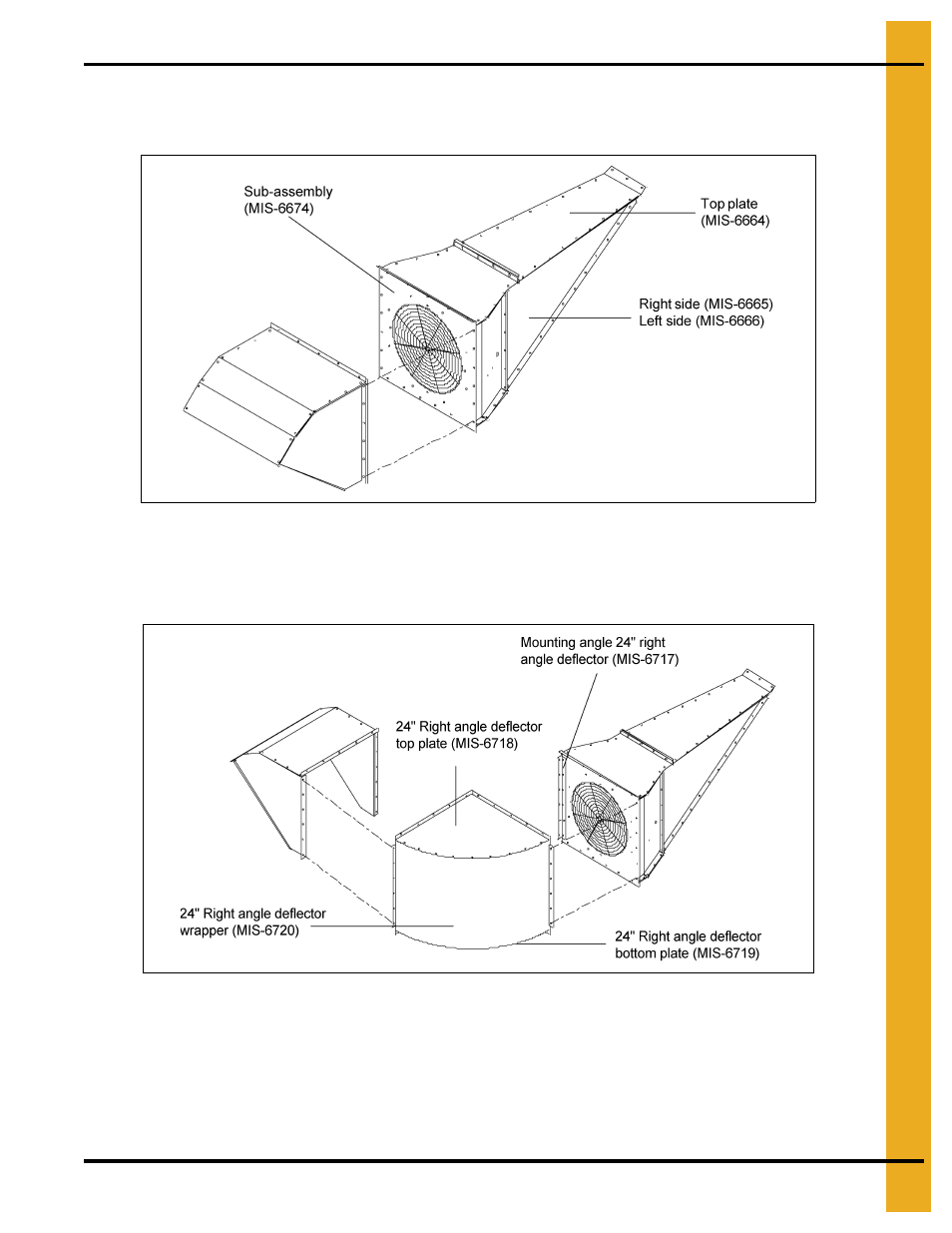

Figure 5J The 24" Roof Fan Exhauster and Rainhood
12. Pre-assemble the optional 90° deflector.
13. Bolt deflector assembly to sub-assembly (MIS-6674) for noise deflection.
Figure 5K The 24" Roof Fan Exhauster with Optional 90° Deflector
14. Bolt rainhood to fan housing or optional 90° deflector if installed.
15. Support optional 90° deflector adequately down to bin roof structure to prevent exhauster or roof
damage due to flexure of deflector and exhauster.
