PNEG-1830 54' Dura-Lok Plank and Support Manual
39
6. Layouts
54'-26" Monorail Spacing Layout

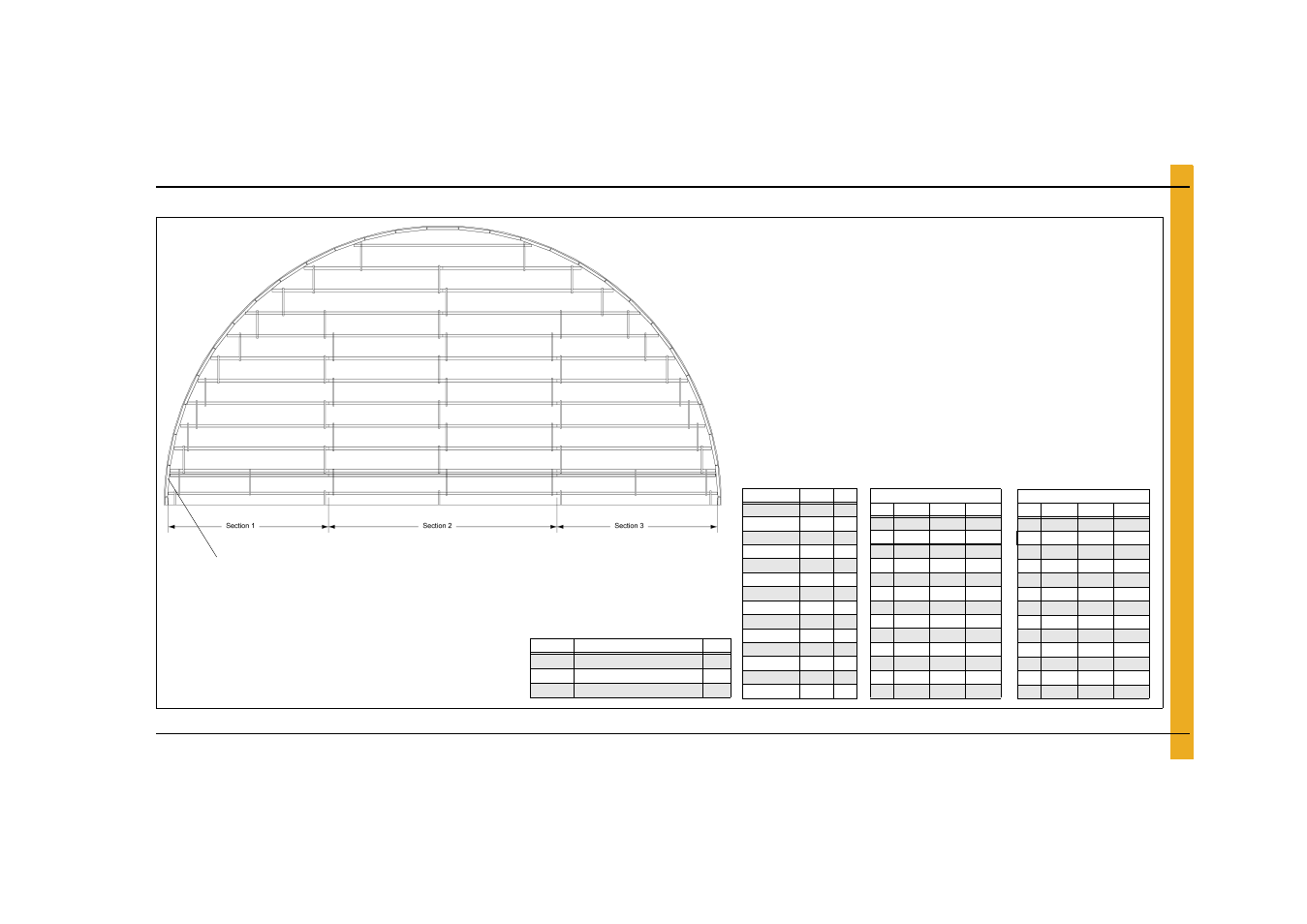

Figure 6N 54' Diameter Bin with 26" Monorail Spacing
Part #
Description
Qty
FL-404-26
26" Monorail Tie Bar
110
FL-7411
Monorail Strap 1-1/2" x 30" x 0.061"
80
S-280
#10-16 x 5/8" Zinc Self-Drilling Screw
450
54' Diameter 26" Spacing
Measurement in Inches
Rail # Section 1 Section 2 Section 3
1
185
264
185
* 2
183
264
183
3
183
264
183
4
178
264
178
5
171
264
171
6
163
264
163
7
151
264
151
8
136
264
136
9
249
249
0
10
228
228
0
11
197
197
0
12
160
160
0
13
205
0
0
16.46 m Diameter 66.04 cm Spacing
Measurement in Centimeters
Rail # Section 1 Section 2 Section 3
1
469.9
670.56
469.9
* 2
464.82
670.56
464.82
3
464.82
670.56
464.82
4
452.12
670.56
452.12
5
434.34
670.56
434.34
6
414.02
670.56
414.02
7
383.54
670.56
383.54
8
345.44
670.56
345.44
9
632.46
632.46
0
10
579.12
579.12
0
11
500.38
500.38
0
12
406.4
406.4
0
13
520.7
0
0
NOTE: Fifty five (55) total outer perimeter 3' monorail
pieces. See
for leg support details.
* NOTE: This special monorail run is used
to support the floor plank at the split.
Bill of Materials
Part #
Length
Qty
A-22MONO
264
16
A-20.75MONO
249
4
A-19MONO
228
4
A-17.08MONO
205
2
A-16.4MONO
197
4
A-15.41MONO
185
4
A-15.25MONO
183
8
A-14.83MONO
178
4
A-14.25MONO
171
4
A-13.58MONO
163
4
A-13.3MONO
160
4
A-12.58MONO
151
4
A-11.3MONO
136
4
A-3MONO
36
73
