3
InstaLLatIon InstructIons
For installation with the Orrington ® pedestal column
1. Apply two cork pads (G) onto the bottom of
the pedestal basin (A) in the pedestal column re-
cess as indicated.

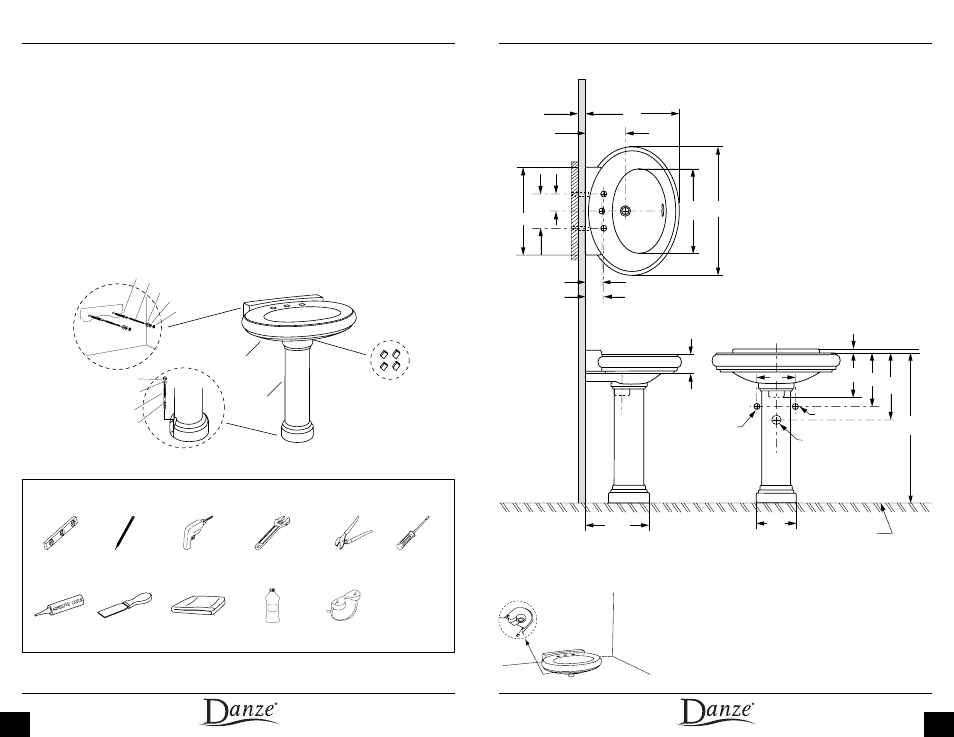

Product dImensIons
tooLs requIred
( Y ) Warranty Parts Guide
Check to make sure you have the following parts included in the pedestal column
package:
( B ) Pedestal Column for 30” Pedestal Basin Model DC016028
( I ) Pedestal Column Anchor Hardware
( J ) Pedestal Column Anchor Bolt (1 each)
( K ) Pedestal Column Anchor Washer (1 each)
( L ) Pedestal Column Anchor Cap Nut (1 each)
( M ) Pedestal Column Expansion Anchor (1 each)
( V ) Welcome to Danze Kit
(W) Installation Instructions
( X ) Homeowner Care Manual
( Y ) Warranty Parts Guide
22”
8” 4” 30” 20”
20 1/2 ”
4 3/8 ”
4 7/8 ”
4 7/8 ”
13 7/8 ”
9 1/2 ”
8 3/4 ”
8”
12 3/4 ”
10”
35”
1”
9 5/8 ”
3/8 ” COLD
3/8 ” HOT
1 1/4 ” WASTE
FINISHED
WALL
FINISHED
FLOOR
G
D
E
C
L
I
K
J
M
H
A
N
F
B
Carpenter’s Level Pencil Adjustable Wrench Regular Screwdriver
Cloth Rubbing Alcohol Adhesive Caulk Safety Glasses
Rubbing Alcohol
Drill Channel
Lock Pliers
Putty Knife
