Danze D135301BT - Installation Manual User Manual
Page 4
®
3
4.
5.
6.
© 2008 Danze, Inc. All rights reserved.

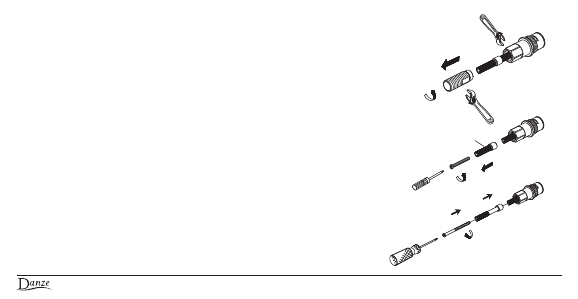

Stem Extension
Use two wrenches to take apart the volume control cartridge. With one adjustable
wrench holding the cartridge, use the other wrench to remove the shank adapter.
Remove the stem extension from the volume control cartridge using screwdriver.
Install the long stem extension to the cartridge by using long screw.
