3

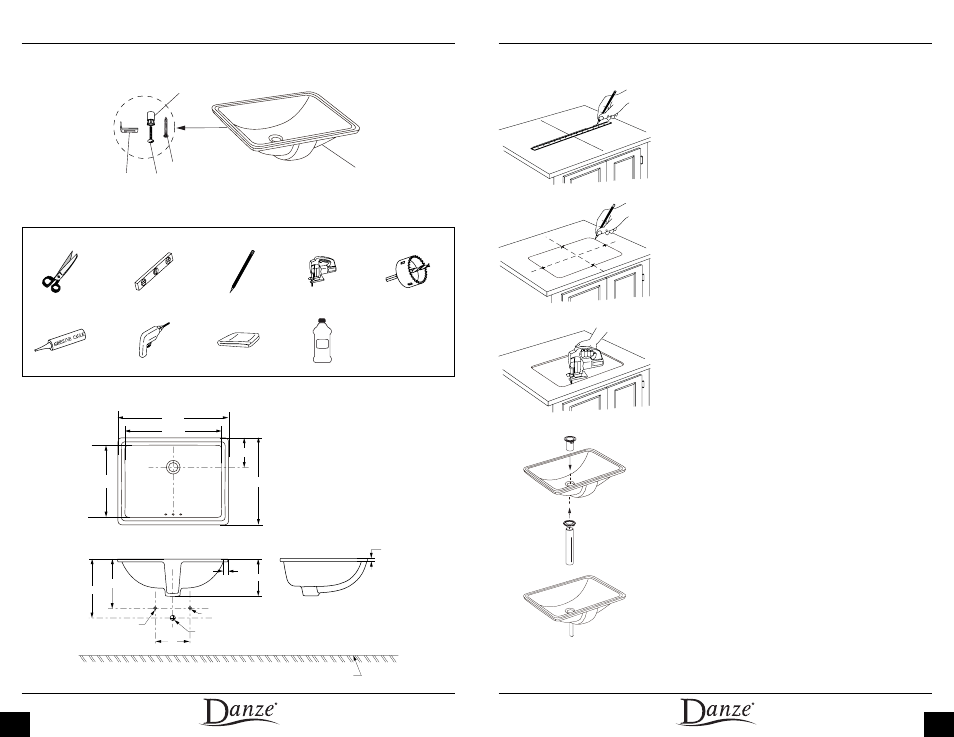

InstallatIon InstructIons
1. Use a pencil to lightly mark the centerlines for
location of lavatory (A) in slab or counter top.
2. Cut out template (Z). Line up centerline ar-
rows on the template (Z) with the centerlines
marked on the slab or counter top. Trace around
the outside of the template (Z). (The dimensional
drawing to the right of the template indicates
the suggested drilling for a widespread lavatory
faucet (not included) relative to the cutout. Make
sure there is adequate room behind the cutout
for the faucet being installed before cutting the
slab or counter top.)
3. Cut opening in slab or counter top following
traced line.
4. Assemble drain (not included) in lavatory (A)
according to the manufacturer’s recommenda-
tions.
5. Mount the lavatory (A) to underside of the
slab or counter top using the included mounting
hardware (D).
Product dImensIons
FINISHED
FLOOR
3/8 ” COLD
3/8 ” HOT
1 1/4 ” WASTE
8”
13 1/2 ”
10 ”
6 3/4 ”
18 3/4 ”
16 7/8 ”
5 1/4 ”
14 1/2 ” 12 5/8 ”
5/8 ”
7/8 ”
Scissors Carpenter’s Level Pencil Hole Saw
Adhesive Caulk Drill Cloth Rubbing Alcohol
Rubbing Alcohol
tools requIred
Saber Saw
P E
J
C
A
D
