From inside the cab locate the
grommet on the firewall and make
another 1” x 1” cross-shaped (X) incision
on the grommet, opposite the spot that
was cut from the outside. Now, feed the
In-cab cable through the incision made
in the firewall grommet and into the cab
(Figure 5).
Note: Some thick putty may be used
to provide additional sealing around the
In-Cab cable and the grommet.
10.
Position the Tuner on the fuse box
cover for an idea of where to clean. The
Tuner must be mounted as close to the
inside (engine side) edge as possible to
avoid a hood clearance issue. check
the hood clearance before attaching
the Tuner to the fuse box. Clean the top
of the fuse box cover located on the
drivers’ side of the engine compartment.
Make sure the outside of the fuse box is
free of oil, grease and dirt.
Note: Clean the fuse box cover with a
non-oil based solvent such as Acetone,
Mineral Spirits, Denatured Alcohol or
Lacquer thinner. Read and follow the
manufacture’s operation instruction for
non-oil based solvent cleaner.
WARNING: Make sure to place the
Tuner as shown in Figure 2 to avoid
a clearance issue when closing the
hood. Mount the Six-Gun Tuner as
close to the inside (engine side)
edge of the fuse cover as possible.
Verify you have hood clearance
before mounting the Tuner.
11.
Peel the protective backing from
the hook and loop interlocking fasteners
attached to the Six-Gun Diesel Tuner.
Position the side edge of the Six-Gun
Diesel Tuner to the edge closest to the
engine of the fuse cover, then press
the adhesive onto the outside of the
fuse box cover. Apply light pressure to
the Six-Gun Diesel Tuner by hand for
60-seconds to create a strong bond
between the fuse box and hook & loop
interlocking fasteners. Using the supplied
cable ties, secure the wire harness
away from any heat sources or moving
components.
CAUTION: When securing the
wires, do not bend them any
tighter than a 2.5” diameter bend
as this can cause undue stress on
the wires and may cause failure.
-END, SECTION 1-

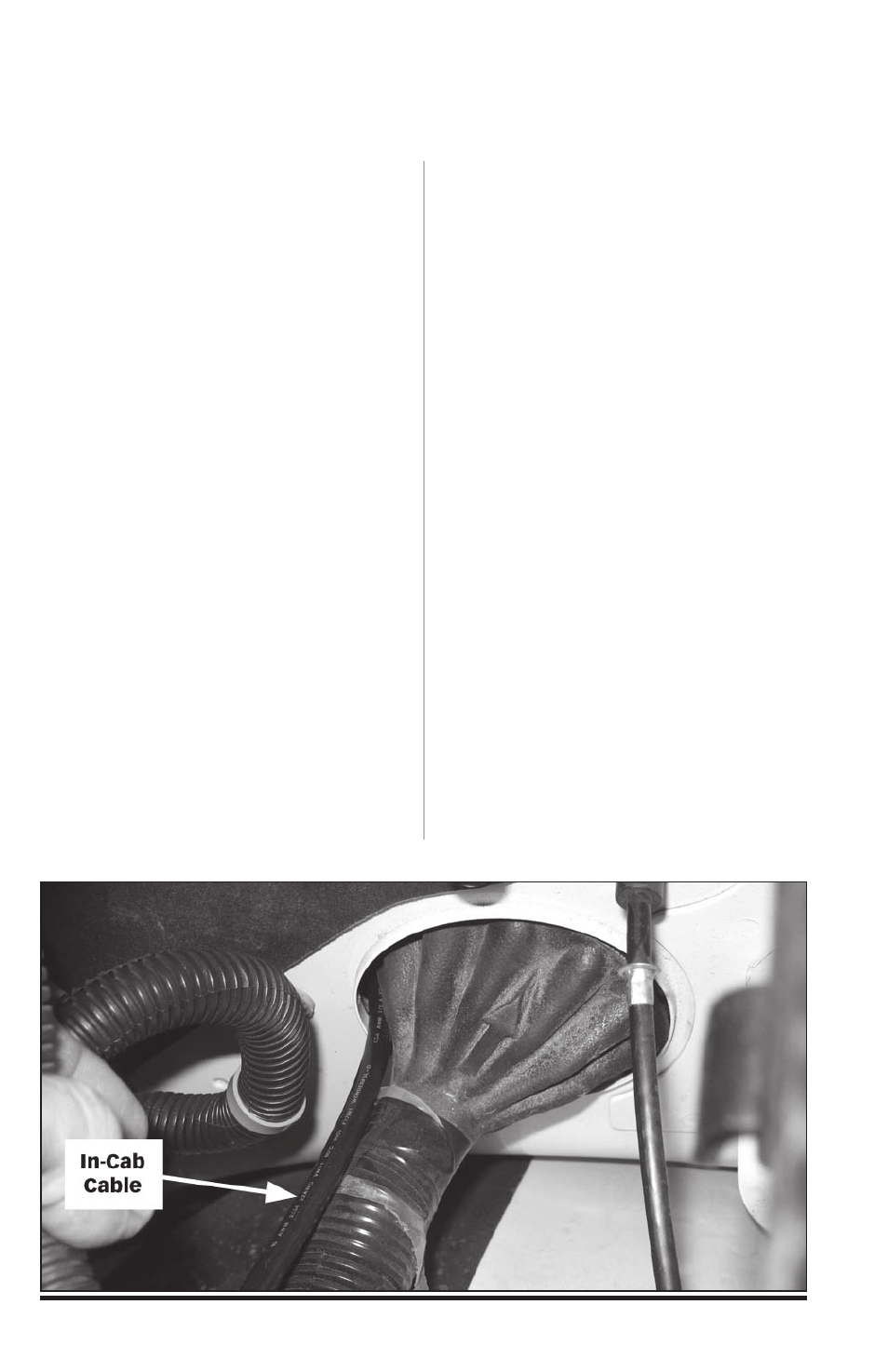

Figure 5
