4.
Find a suitable place on the
windshield for ease of access and
viewing of Banks iQ. Use location
shown in Figure 7 as a reference
for mounting Banks iQ in your
vehicle. Loosen the knob and move
the swivel suction plate to achieve
desired viewing angle of the Banks
iQ screen. Do a test fit and note the
angle necessary to achieve the correct
viewing angle.
5.
Make sure the suction cup and the
mounting area on the windshield are
clean and dry. With the suction lever
in the up position, ensure the suction
cup is flat against the windshield, and
then push the suction lever down to
secure in place.
6.
Next, remove and set the fuse
access panel aside. See Figure 7.
7.
Find the Banks OBD II Interface
Cable in your kit. Connect the Banks
Interface Cable to the vehicle’s OBD II
connector. Use a cable tie as shown
in Figure 8 to secure the Banks
Interface Cable to the vehicle’s OBD II
connector.
8.
Next, connect the 6-terminal
connector on the Banks OBD II
Interface Cable to the 6-pin connector
on the Six-Gun Tuner harness.
9.
Locate the RJ12 cable (similar to
telephone connector) on your Banks
OBDII interface cable . See Figure 9.
10.
Locate Banks iQ Bridge Module and
connect the RJ12 connector into the
Bridge Module. See Figure 10.
11.
Route the Banks iQ USB interface
cable from the Banks iQ Bridge Module
under the dash and out through the
fuse access panel opening. The cable
can be slid under the door frame’s
seal and run up to the top of the dash.
Pull enough cable to reach the Banks
iQ and connect it to the left receptacle
on the iQ. See Figure 8. Snap the fuse
access panel back in place making
sure not to pinch the wire.

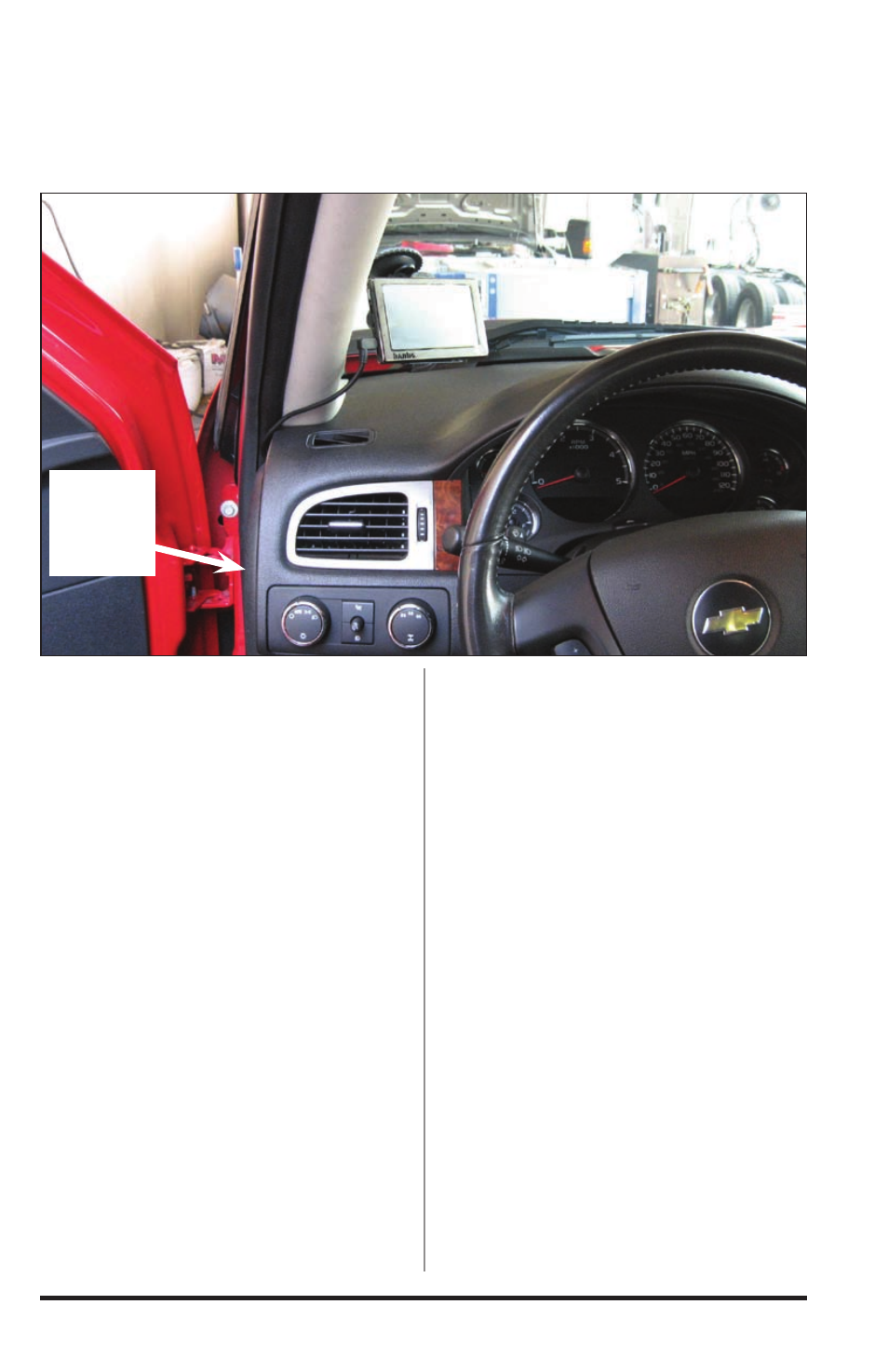

Figure 7 Chevy LMM Shown
Fuse
Access
Panel
