97247 v.3.0
15

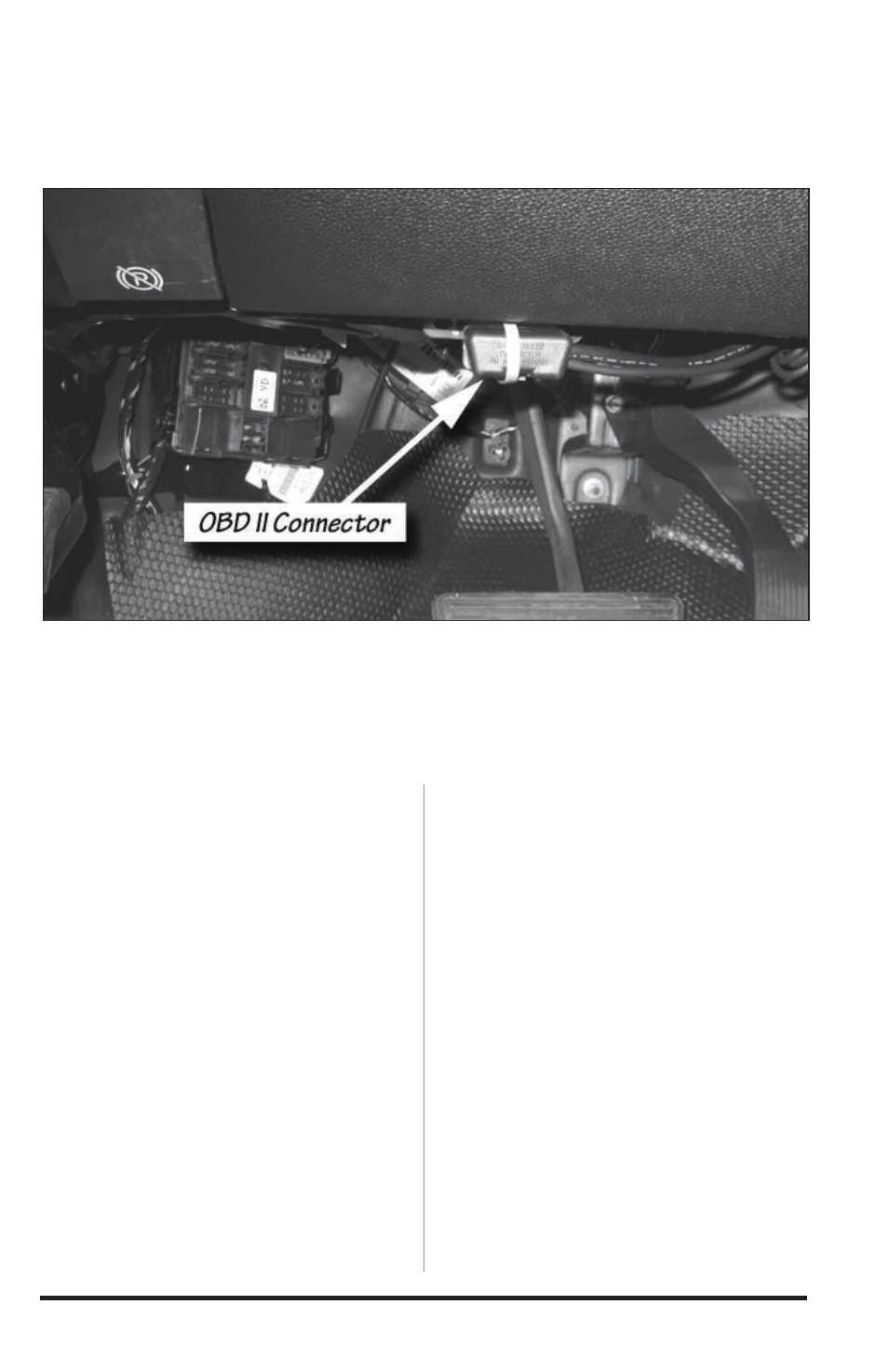

Figure 11
CAUTIoN: Do not use force
when working on plastic parts.
Permanent damage to the part
may result.
NOTE: Before drilling, confirm that
there is adequate room for the Switch
and wires behind the dash. Make sure
wires or obstructions are cleared from
the drilling area.
1.
The Banks Brake Switch can be
installed on the driver’s side of the
instrument panel (IP) to the left side
of the steering column. There are two
dash types: Dash 1 (Figures 12, 13)
and Dash 2 (Figures 14, 15).
NOTE: These are just suggested
locations. It is possible to locate the
Banks Brake Switch where it is more
comfortable. Please confirm space
behind dash before drilling.
2.
To install on the driver’s side IP
(Dash 1, Figure 12):
Pull the IP trim out by pulling the top
edge above the vent as shown in
Figure 16. Disconnect any switch
wires.
3.
Cut out the supplied template,
Figure 21 on page 23, and align
the dashed lines to the edge of the IP
where you would like to mount the
Switch. Tape the template in place.
Continue to Step 7.
4.
To install the Switch to the left side
of the steering column (Dash 2 Figure
15):
Remove the fuse access panel shown
in Figure 6. Remove the lower knee
bolster panel by removing the 2
Phillips screws on the lower edge
Section 2
INSTALLATIoN oF BANkS BRAkE SWITCH
