96556 v.2.0
3
Item Description Part# Qty
1. Super-Scoop, Ram-Air System, Upper 42231 1
2. Super-Scoop, Ram-Air System, Lower 42232/42233 1
3. Bracket, Upper, Super-Scoop 42208 1
4. Bracket, Middle, Super-Scoop 42207 1
5. Bracket, Lower, Super-Scoop 42206 1
6. Washer, USS, Zinc, 1⁄4 91103 8
7. Nut, Nylock, 1⁄4-20 UNc 91110 6
8. Retainer, Push-Type, 20mm Head X 10mm Dia. 92023 4
9. Nut, clip-On, M6 X 1.0 91712 3
10. Hex Bolt, Zinc, 6mm X 1.0 X 25mm 91742 3
11. Washer, SAE Flat, Zinc, 1⁄4 91102 1
12. Retainer, Push-Type, 11/16” Head X 1/4" Dia. 92020 2
13. Machine Screw, Truss Hd, Phil – 1/4-20 X 5/8” 91129 2
14. Bolt, carriage – 1/4-20 X 3/4” 91135 4
15. Edge Trim 93142 1
* Replace when nylon insert is worn and is no longer self-locking.
** Replace when nut is worn and is no longer self-locking.
if you vehicle does not have tow hooks equipped, you will need the following additional hardware:
1. 7 /
16
"-14 x 4 1 /
2
" Hex Bolt, Quantity 1
2. 7 /
16
"-14 Flange Nut, Quantity 1
Section 1

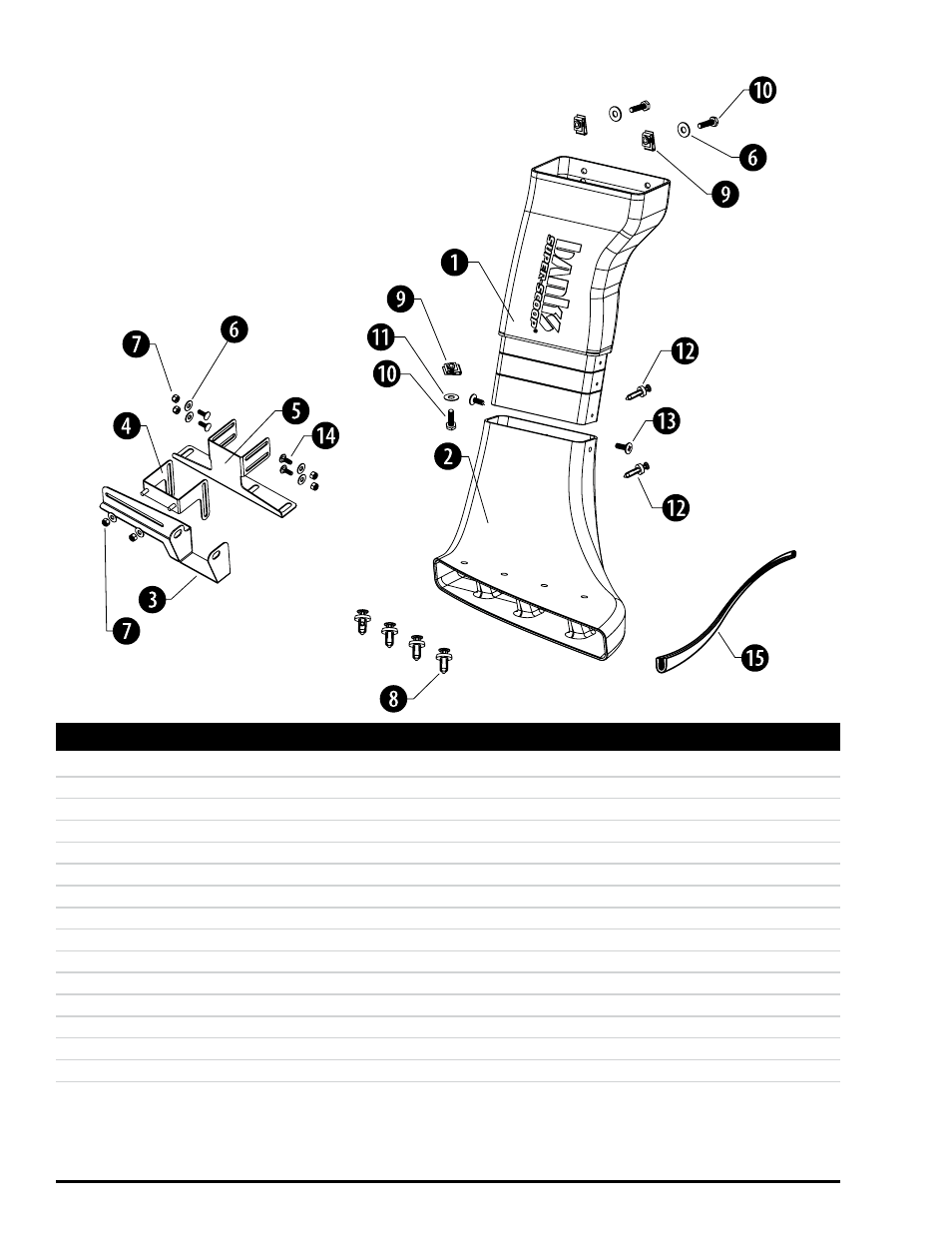

General Assembly; figure 1
