Banks Power Ford Motorhomes: (Gas ’05 - 14 6.8L V-10, Class-A (30-valve) Power Systems- PowerPack, Stinger & TorqueTube systems, (Class-A) '05-12 - Manual (Page 7)

96377 v.7.0
7
wire loom bundle so it may be routed
and tied up against the underside of
the floor of the coach. The wire loom
bundle may be routed up braces
adjacent to the upper engine area and
along supporting members under the
floor with the wire ties provided.
12.
CAUTION: Make sure all ground
cables are removed from vehicle’s
battery(s). Remove the starter wire
battery cable from the starter motor.
Install the starter heat shield onto
the starter using the #52 hose clamp
provided.
CAUTION: Make sure the heat
shield does not come in contact
with the positive terminal of the
starter once the heat shield is

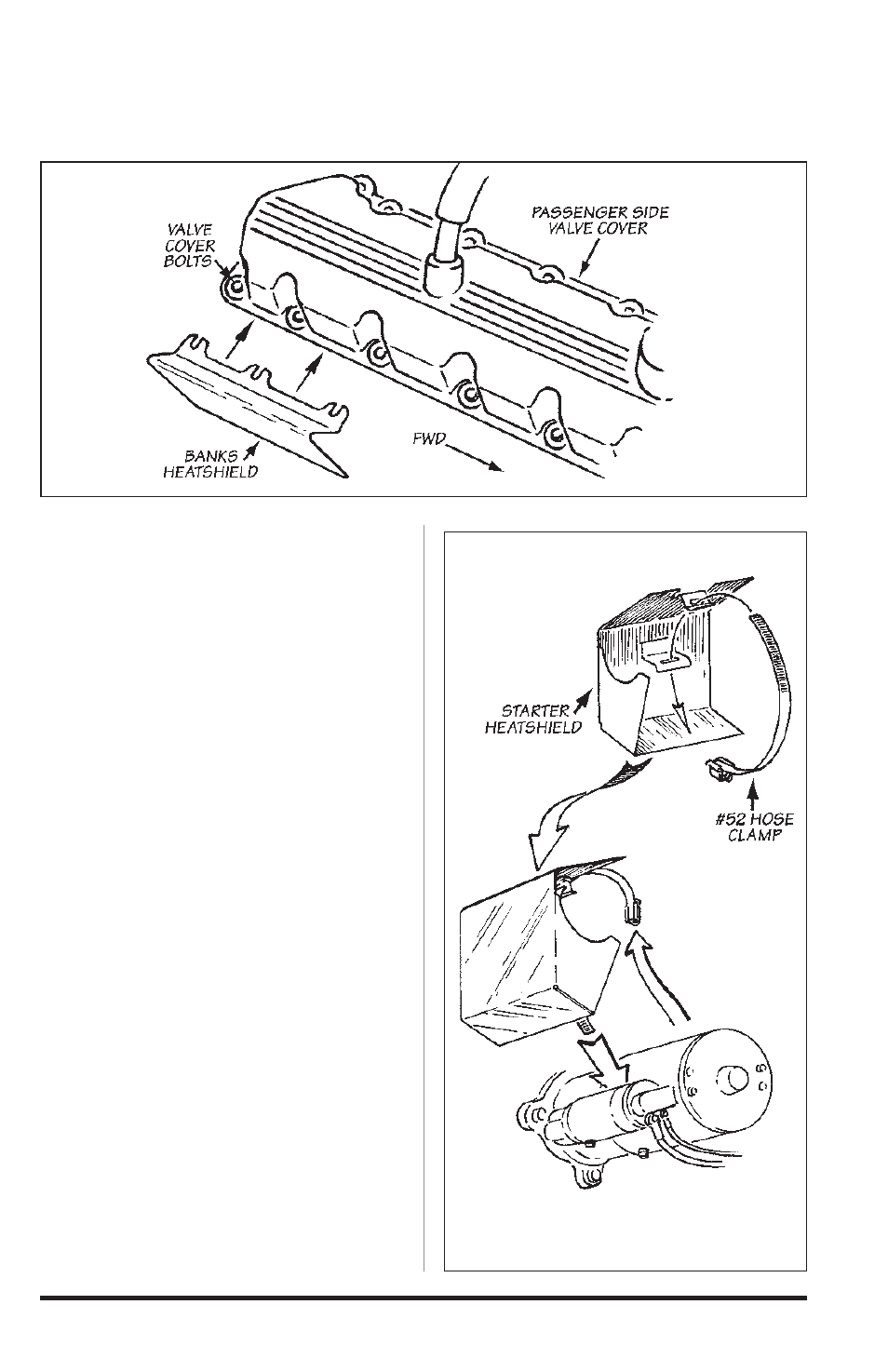

tightened down. See Figure 3.
13.
Inspect the exhaust mounting
surfaces of the cylinder heads and
clean any rust or carbon deposits,
which would prevent the TorqueTubes
from sealing. Be careful when
doing this as the cylinder heads are
aluminum, and can be easily damaged.
Banks recommends the use of a
plastic scraper. Zip-tie cables away
from left-side Torque Tube. Wrap any
hoses or harnesses with the supplied
heat shield blanket. Secure the blanket
to the hose with the supplied wire ties.
Figure 3
Figure 2
