LEDC09
V. 01 – 12/09/2013 6 ©Velleman nv
Some examples:
Mode
DIP switch
1 2 3 4 5 6 7 8 9
Switching colours
at medium speed
x x x 1 0 0 0 1 0
Fading colours at
maximum speed
x x x x x x 1 x 1
0 = off; 1 = on; x = can be either on or off.
6. DMX Mode
To set the device to work with a DMX controller:
1. Set DIP switch 10 to OFF.
2. Connect the external DMX controller to the DMX input.
Caution: Use either 8P8C connectors or 3-pin XLR connectors.
Do not use both.

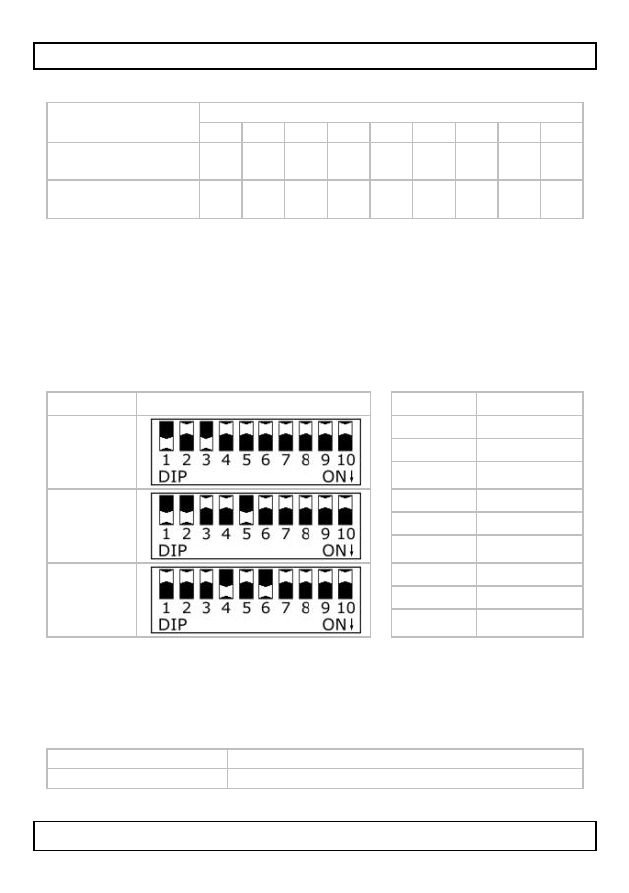

3. Use DIP switches 1-9 to specify the DMX address:
Address DIP switches Switch Represents
5
1 1
2 2
3 4
19
4 8
5 16
6 32
40
7 64
8 128
9 256
Set more than one DIP switch on and add their corresponding values
to obtain the desired DMX address. For example: if only DIP switch 8
is on, the DMX address is 128. To obtain DMX address 19, set DIP
switches 1, 2, and 5 to on (1 + 2 + 16 = 19).
7. Technical Specifications
DMX channels
4
power supply 12-24 VDC (not incl.)
