Velleman CAMSETW4 User Manual
Page 2
CAMSETW4
- 2 -
VELLEMAN
5. Camera
a.

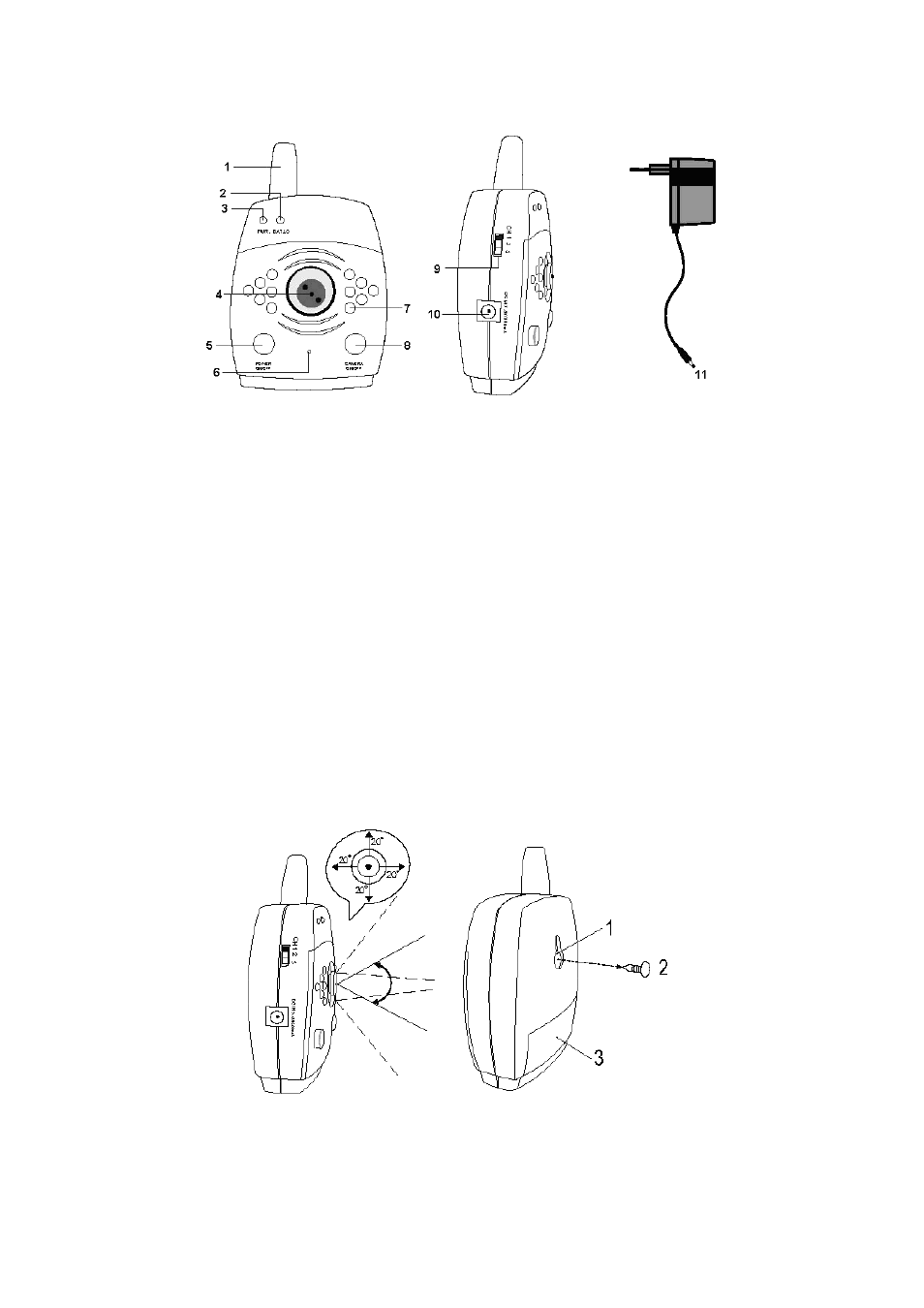

Description
1.
Antenna
7. IR LED
2.
Low battery indicator
8. Camera ON/OFF switch
3.
Power indicator (camera kit / baby monitor)
9. Channel switch
4.
Eyeball camera lens
10. DC power
5.
Power ON/OFF switch
11. Power adapter plug with low-voltage switch
6.
Microphone
b.
Mounting the camera
•
Prior to drilling and inserting the screws, make sure there are no electric cables in the wall.
•
Select a suitable installation site. Install the camera in a well-ventilated, dry and dust-free place. Avoid places
with vibrations. Make sure there is a power outlet.
•
Select a place that is not screened off by reinforced concrete walls, mirrors, metal shelves, etc.
•
There shouldn’t be any appliances with strong electric fields, e.g. cell phones, walkie-talkies, etc.
•
Fasten the wall bracket:
o
Screw the wall bracket with the supplied screws to a suitable wall or platform. Use dowels if relevant.
o
Align the camera and fix the corrugated plastic sleeve.
Fig. 1
Fig. 2
1. Slot
2. Support
3. Battery compartment
