VTLAN3
VELLEMAN
3
VTLAN3 – LAN TESTER FOR RJ45, RJ12, RJ11, RJ10 & BNC
1. Introduction & Features
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm
the environment.
Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized
company for recycling.
This device should be returned to your distributor or to a local recycling service.
Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for buying the VTLAN3! Please read the manual thoroughly before bringing this device into service. If the
device was damaged in transit, don't install or use it and contact your dealer. Your VTLAN3 should include: main unit,
terminator unit, 2 x BNC/RJ45 conversion wires, 1 x auto-test wire (RJ45).
This multi cable tester is an indispensable tool for networking installation and maintenance. This compact unit is
specifically designed for on-site use. It can be used in testing network and telephone type cables (RJ45, RJ11 and
BNC). It satisfies the majority of the telephone and computer cable testing requirements.
With the VTLAN3 you can easily test a variety of network cables and diagnose cable problems.
Features:
•
informative status indicators;
•
advanced design for easy testing;
•
BNC adapter for testing BNC cables;
•
ability to test remote or installed locations with the terminator unit;
•
automatically runs all tests and checks for continuity, open, shorted and crossed wire pairs.

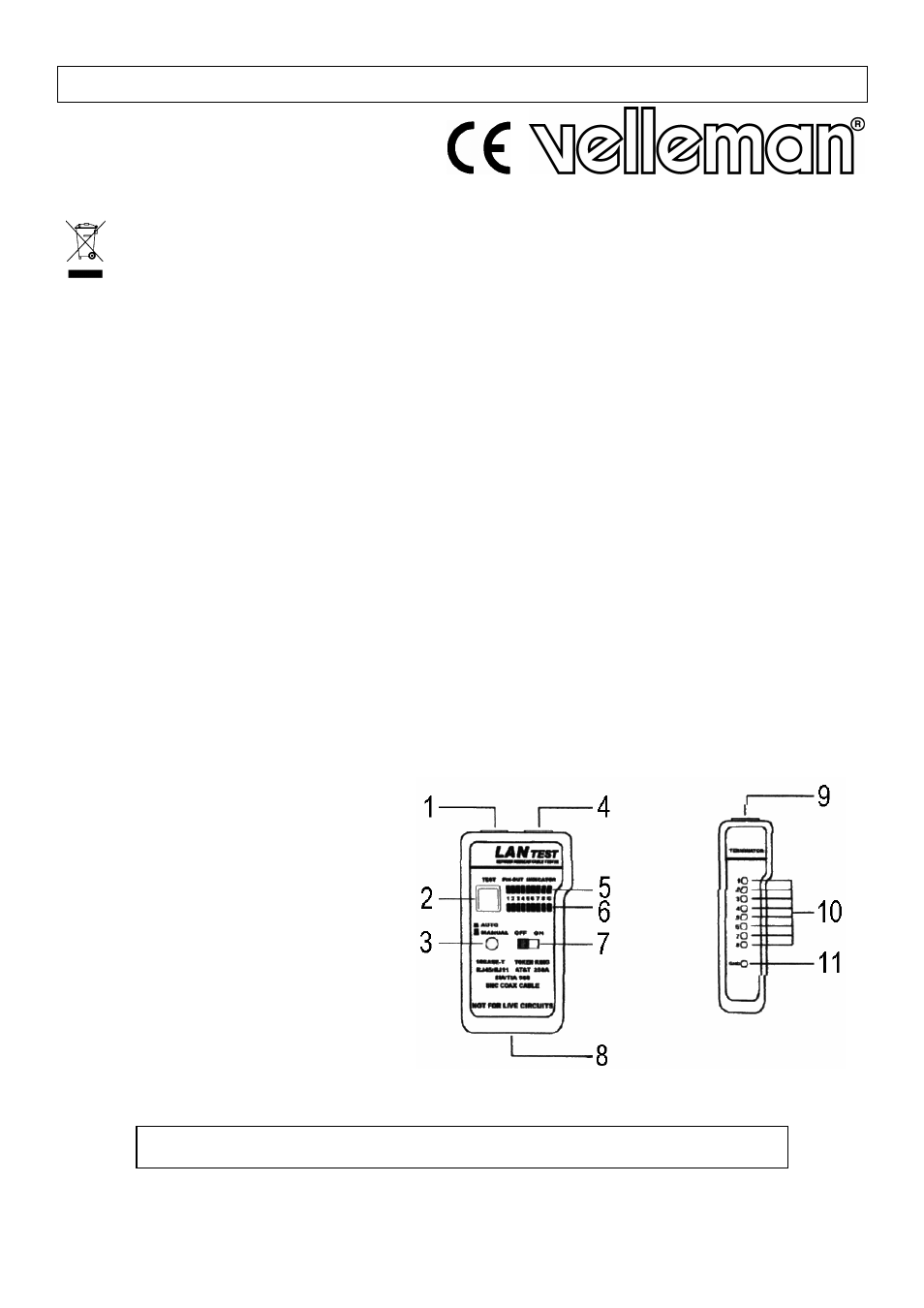

2. Description
1.
RJ45 socket (send)
2.
manual test button (advances step by step
during manual test mode)
3.
auto / manual test switch
4.
RJ45 socket (receive)
5.
send indicator graph
6.
receive indicator graph
7.
power switch
8.
battery box (backside of the unit)
9.
RJ45 socket (receive)
10.
receive indicator LEDs
11.
shield earth indicator LED (GND)
3. Operation
NEVER USE THE TESTER ON LIVE WIRES! DOING THIS WILL DAMAGE THE TESTER!
