Operating instructions – Velleman VDPDP134 User Manual
Page 5
VDPDP134
VELLEMAN
5
5. Operating Instructions
Manual Control
: Manual control is possible through the channel faders if neither an analogue or DMX controller
are used. Slide them up or down to adjust the output (dimming level) for each channel.
Preheating
: Enables you to adjust the min. output level (between 0-50%), which enhances the life of the
lamps.
Analogue Input

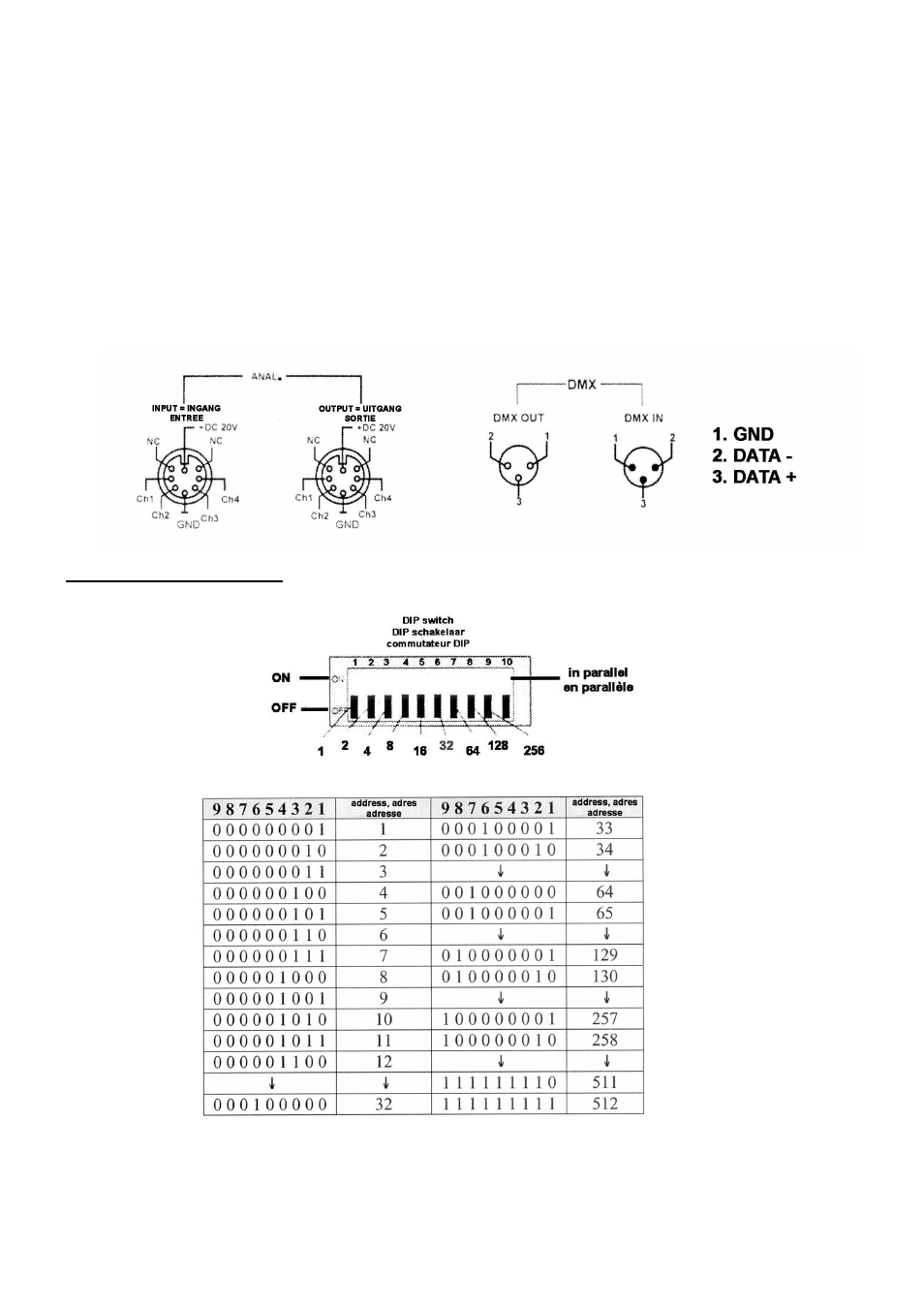

: Connect the analogue controller according to the diagram below. The device supplies the
controller with DC power.
DMX Input
: The dimmer pack can receive DMX512 signals. Adjust the DIP switches to confirm the start
address of the device. When the 10
th
switch is placed in the ON-position and you move one of
the sliders, then all channels will react simultaneously and they will all be placed at the same
level.
Setting the DMX Start Address :
