Page 14
14

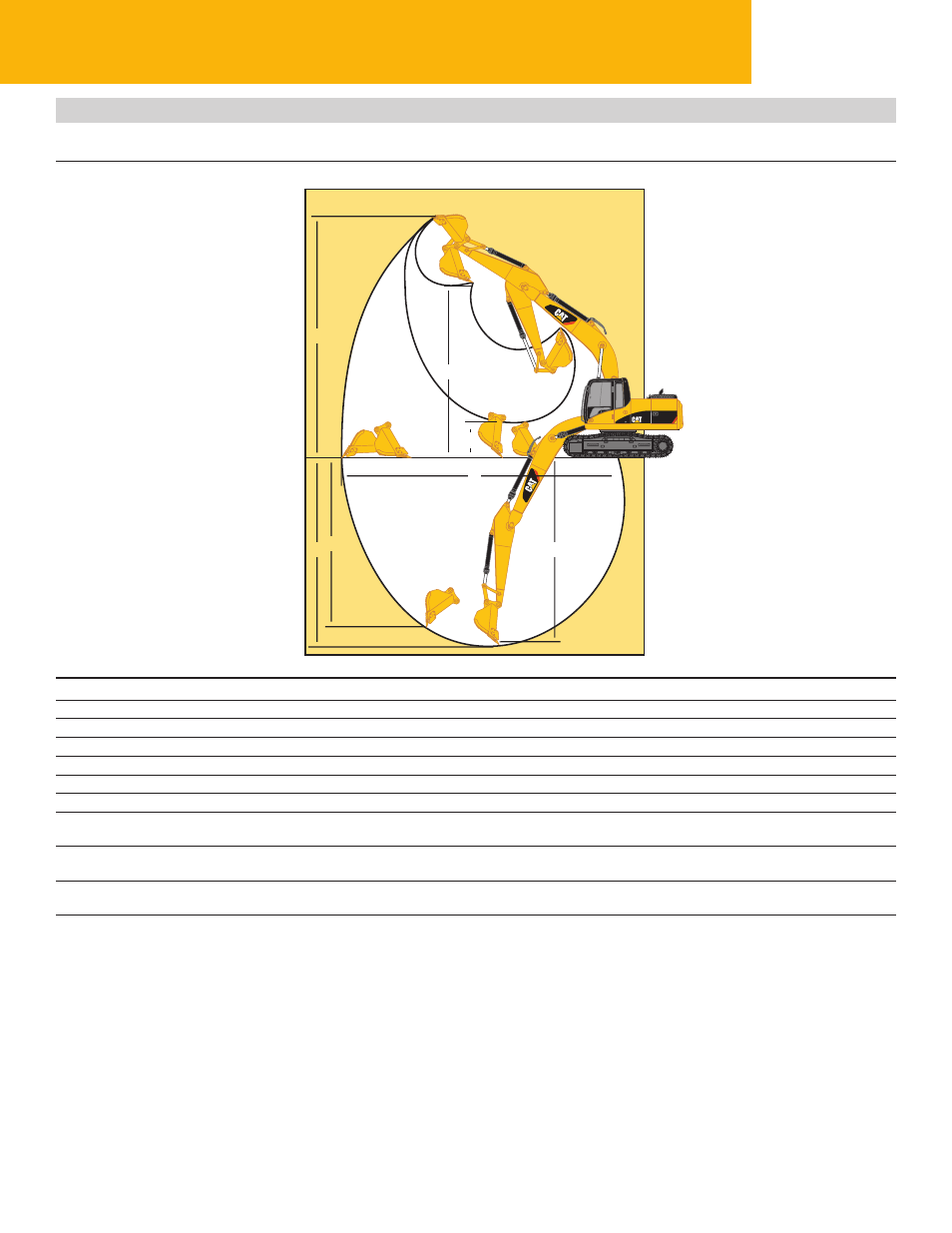

Reach Excavator Working Ranges
Reach (R) boom configuration
Stick Options
R2.25 m (7'5")
R2.6 m (8'6")
R2.9 m (9'6")
R3.1 m (10'2")
Bucket – Long Fixed Undercarriage 0.61
m
3
(0.8 yd
3
)
0.61 m
3
(0.8 yd
3
)
0.61 m
3
(0.8 yd
3
)
0.61 m
3
(0.8 yd
3
)
1
Maximum Digging Depth
5720 mm (18'9")
6070 mm (19'11")
6370 mm (20'11")
6570 mm (21'7")
2
Maximum Reach at Ground Level
8430 mm (27'8")
8750 mm (28'8")
8960 mm (29'5")
9240 mm (30'3")
3
Maximum Cutting Height
8740 mm (28'8")
8920 mm (29'3")
8870 mm (29'1")
8970 mm (29'5")
4
Maximum Loading Height
6140 mm (20'2")
6310 mm (20'8")
6310 mm (20'8")
6600 mm (21'7")
5
Minimum Loading Height
2680 mm (8'10")
2330 mm (7'8")
2030 mm (6'8")
1840 mm (6'0")
6
Maximum Depth Cut for
5470 mm (17'11")
5840 mm (19'2")
6130 mm (21'0")
6370 mm (20'9")
2440 mm (8'0") Level Bottom
7
Maximum Vertical Wall
4920 mm (16'2")
5350 mm (17'7")
5360 mm (17'7")
5830 mm (19'1")
Digging Depth
Bucket Digging Force (SAE)
100.2 kN (22,526 lb)
100.2 kN (22,526 lb)
100.2 kN (22,526 lb)
100.2 kN (22,526 lb)
(ISO)
114.5 kN (25,741 lb)
114.5 kN (25,741 lb)
114.5 kN (25,741 lb)
114.5 kN (25,741 lb)
Stick Digging Force (SAE)
85.4 kN (19,199 lb)
77.7 kN (17,468 lb)
73 kN (16,411 lb)
69.7 kN (15,669 lb)
(ISO)
88.7 kN (19,941 lb)
80.4 kN (18,075 lb)
75.4 kN (16,951 lb)
71.9 kN (16,164 lb)
All measurements are approximate
➤
2
3
1
7
6
➤
➤
➤
➤
➤
➤
➤
➤
4
5
➤
➤
➤
➤
➤
315D L Hydraulic Excavator Specifications
