Five Amplitude Vibratory System
The pod-style vibratory system delivers optimum compactive force while offering
serviceability advantages.
Five Amplitude Selections
The five amplitude selections provide
efficient operation on thick or thin lift
applications.
Automatic Corresponding Rotation
Eccentric weight rotation automatically
matches drum rotation providing good
mat quality.
Automatic Vibration Control
The vibratory system automatically
starts when the propel lever is moved
from neutral and stops when positioned
in neutral. A manual vibratory control is
also provided.
3 Year/3000 Hour Service Interval
Moving parts are separated from
lubricating oil keeping oil clean to
ensure long bearing life. Bearing oil has
a 3 year/3000 hour service interval.

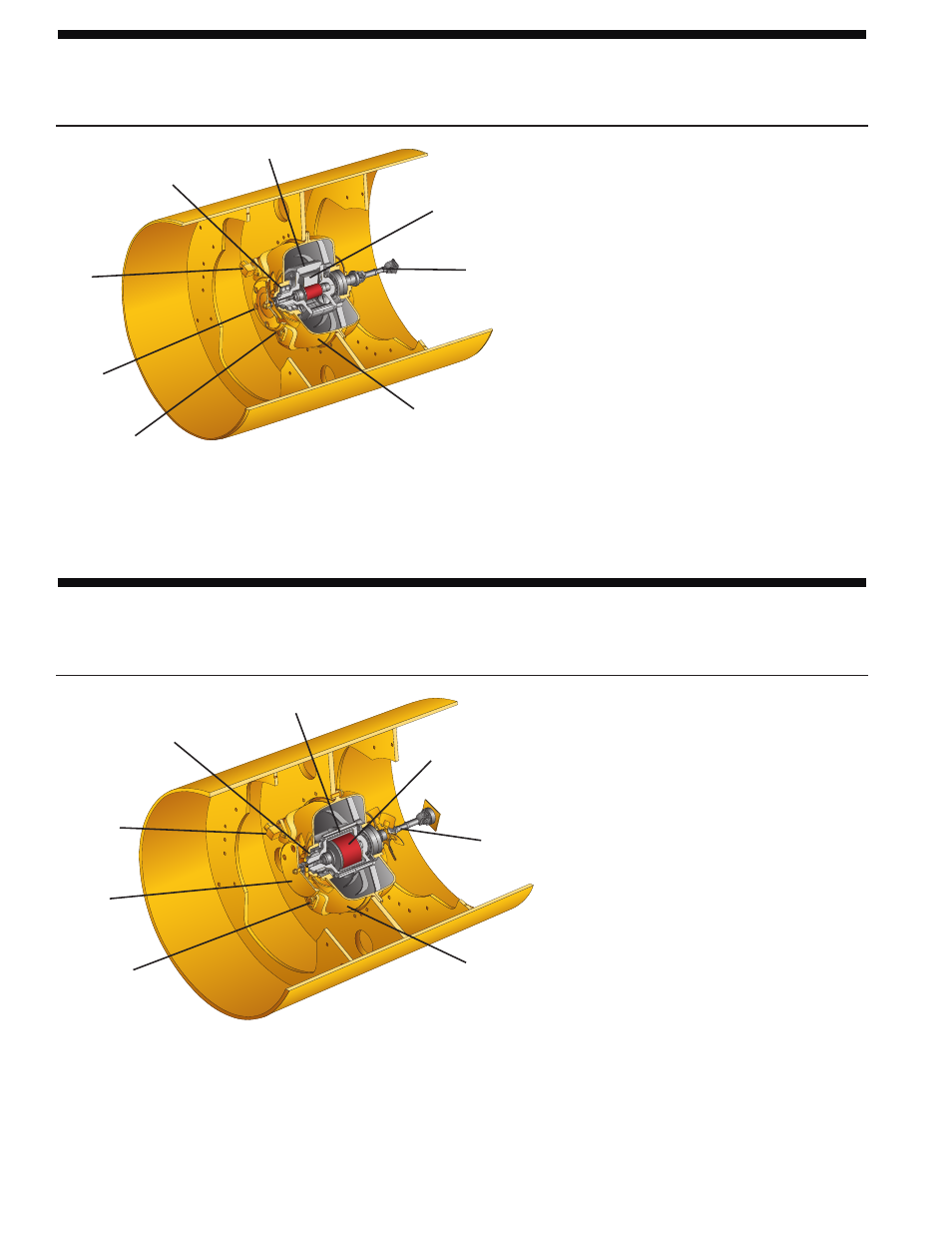

1 Oil Level Sight Gauge
2 Amplitude Selection Wheel
3 Oil Drain
4 Eccentric Weight Shaft Bearings 5 Fixed Eccentric Weight
6 5-Position Counterweight
7 Weight Drive Shaft to Motor
8 Eccentric Weight Housing
Versa Vibe™ Vibratory System
The Versa Vibe vibratory system provides high amplitude or high frequency in one machine
for maximum versatility.
Four Amplitudes and Two Frequencies
Versa Vibe offers four amplitude
selections and two frequencies of 42 Hz
(2,520 vpm) and 63.3 Hz (3,800 vpm)
for customers who value both high
amplitude and high frequency in one
machine.
Vibratory Control Switch
The vibratory control switch on the
console allows the operator to change
vibe settings on-the-run from
aggressive high amplitude to fast high
frequency.
Counter-Rotating Weights
The eccentric weights in the front and
rear drums counter-rotate from each
other, one eccentric weight is always
rotating in the direction of travel.
Automatic Vibration Control
The vibratory system automatically
starts when the propel lever is moved
from neutral and stops when positioned
in neutral.
1 Oil Level Sight Gauge
2 Amplitude Selection Wheel
3 Oil Drain
4 Eccentric Weight Shaft Bearings 5 Eccentric Weight
6 2-Position Counterweight
7 Weight Drive Shaft to Motor
8 Eccentric Weight Housing
